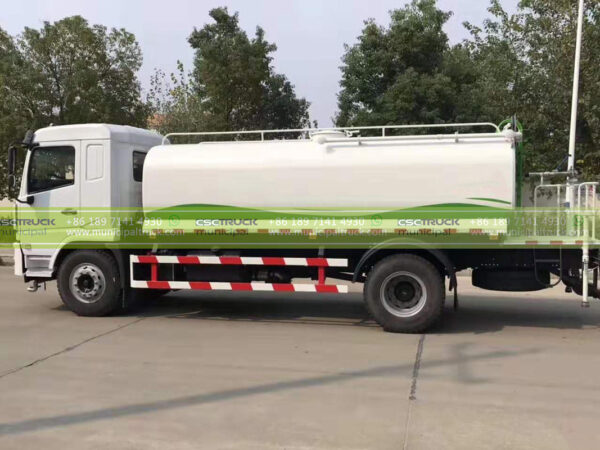

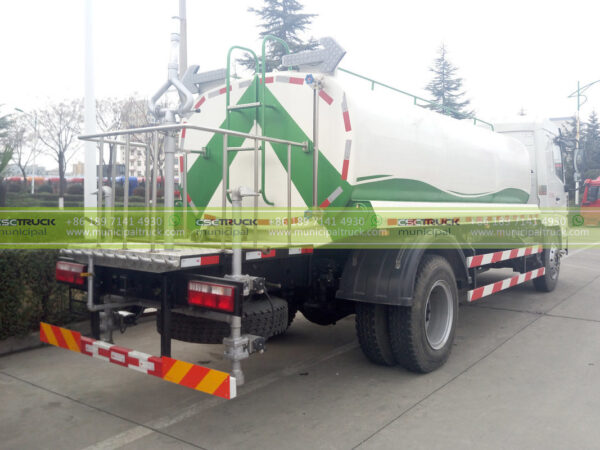

The Shacman 10 ton greening water sprinkler truck is a municipal vehicle designed for use in urban greening and landscaping. Manufactured by CSCTRUCK, this truck features a range of advanced components and systems that make it highly efficient and reliable in its operation.
Chassis:
The Shacman 10 ton greening water sprinkler truck is built on a Shacman chassis, which is known for its durability and ruggedness. The chassis has a size of 7,800×2,520×2,850(mm) and a GVW/Curb Weight of 16,000kg/9,660kg. It has a wheelbase of 4,200mm and front/rear axles of 5.6/10.4T. The truck is equipped with 10.00R20 6+1 tires that provide excellent traction on all types of terrain.
Engine and Transmission:
This sprinkler truck is powered by a YUCHAI diesel engine, which is known for its high efficiency and low emissions. The engine has a make/model of YC6J200-33, delivers 200hp, and meets the Euro 3 emissions standard. The engine is paired with a FAST 8JS105TA manual transmission that has 8 forward gears and 2 reverse gears.
Cabin:

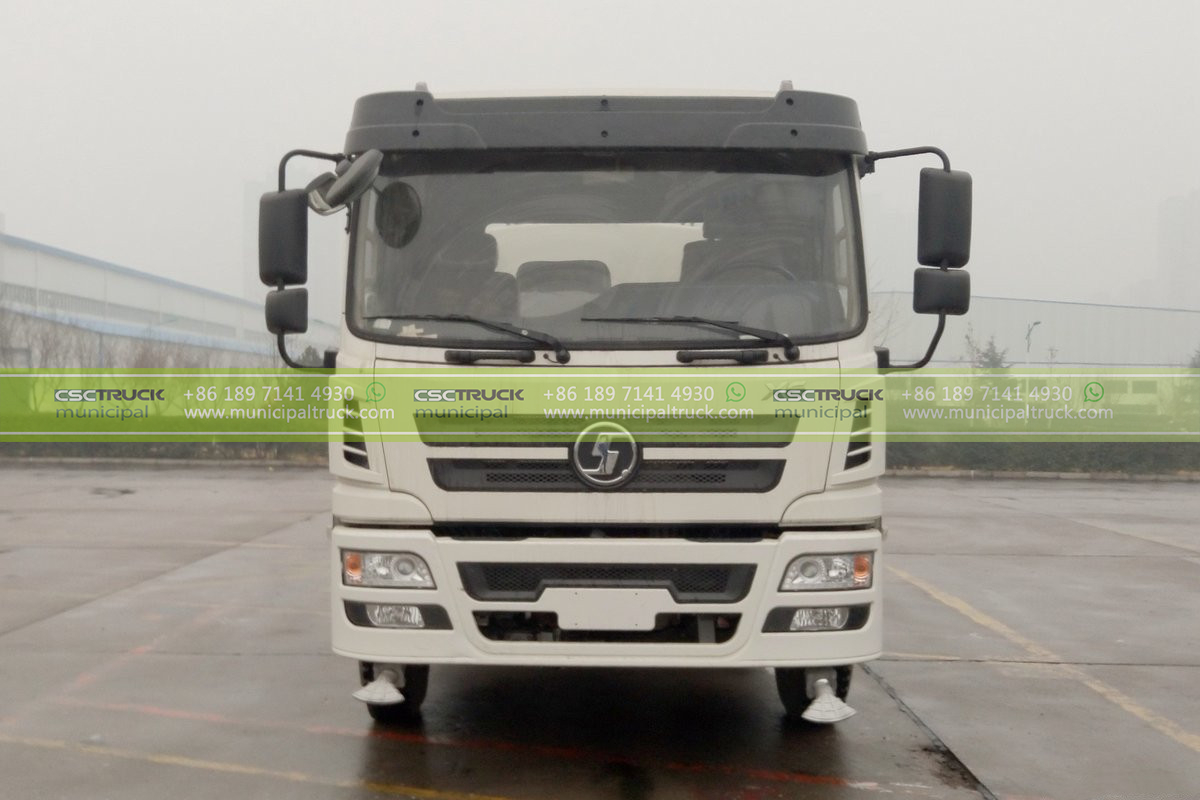

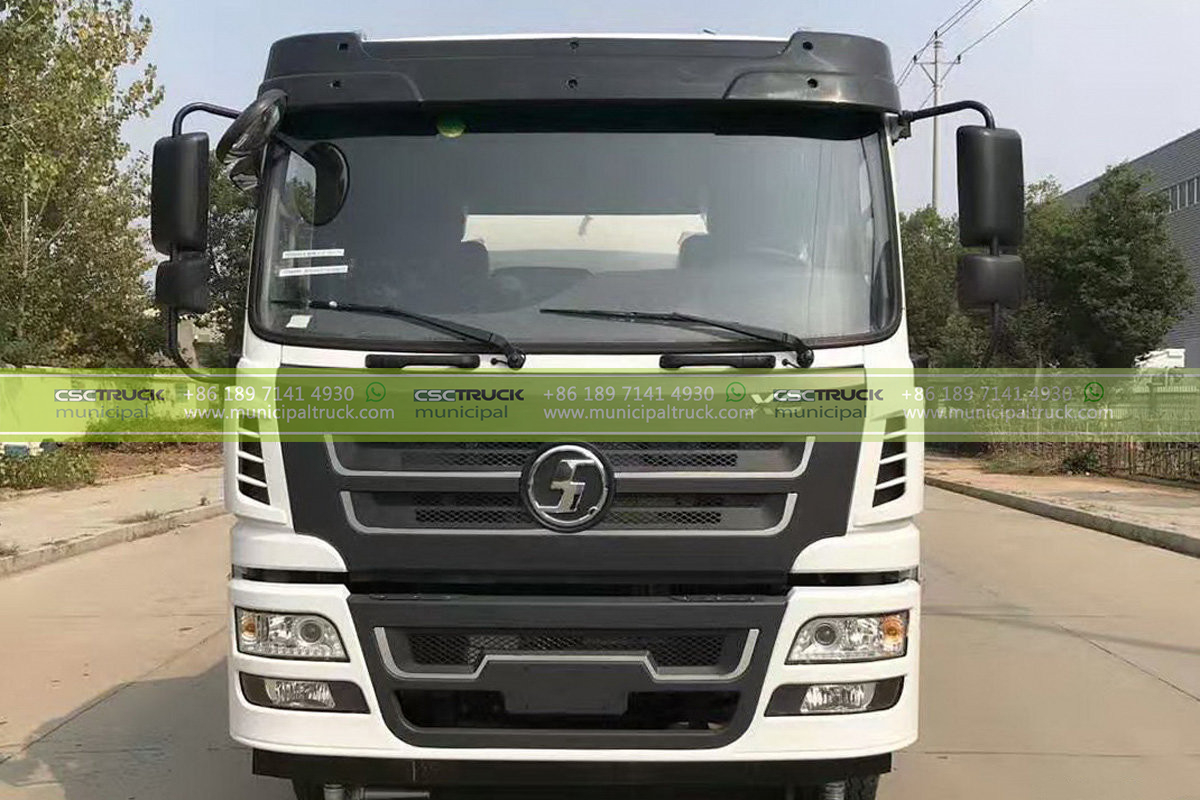

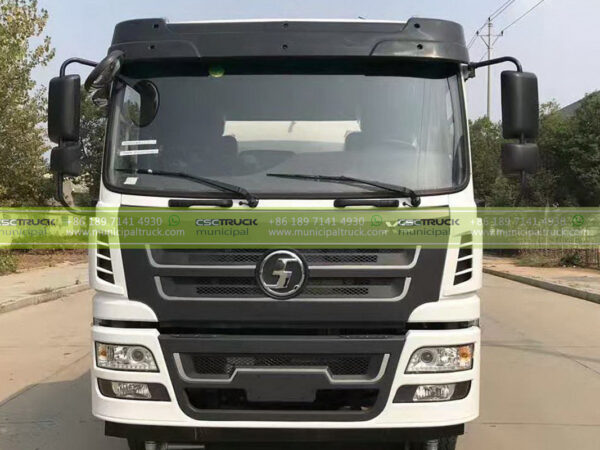

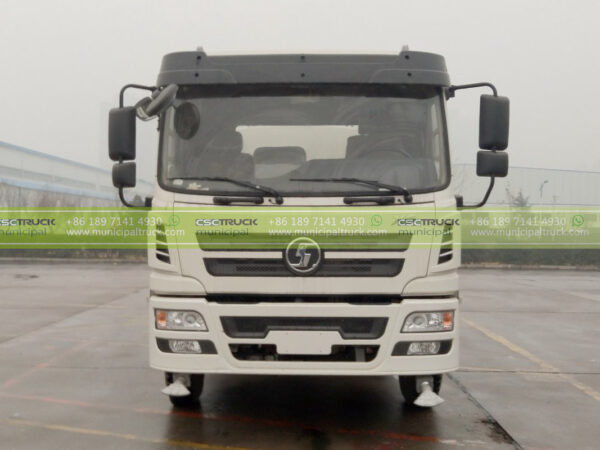

This water sprinkler truck has a Shacman L3000 4×2 day cab, which is designed for comfort and convenience. The cabin has a steel construction, a single row, and a flat design. It can accommodate up to three passengers and is available in both left and right-hand drive configurations.
Body System:

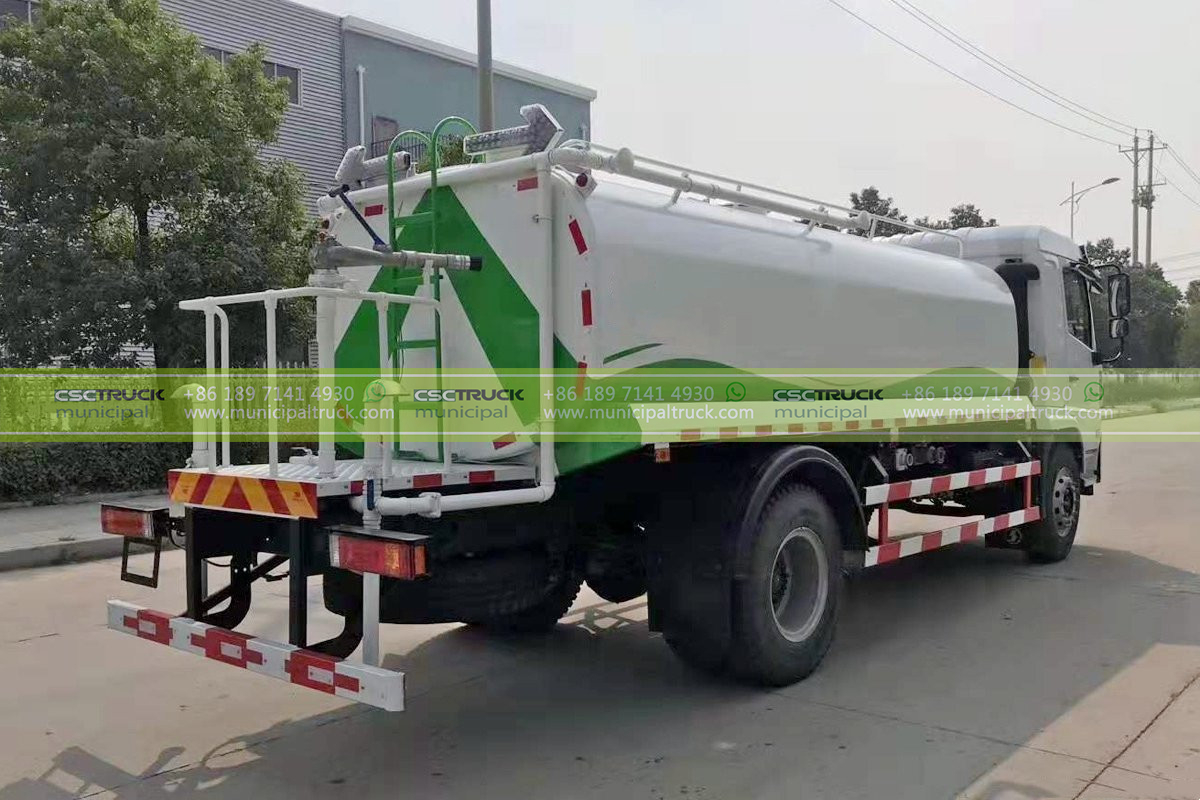

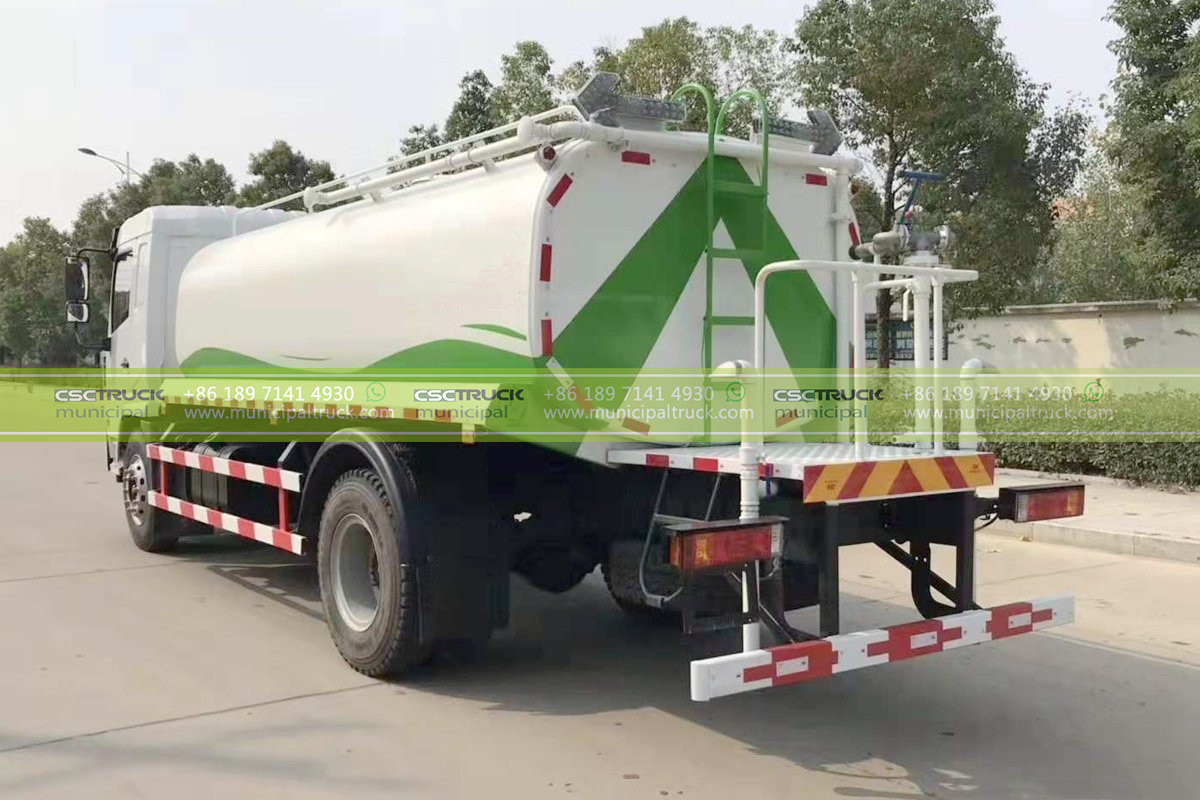

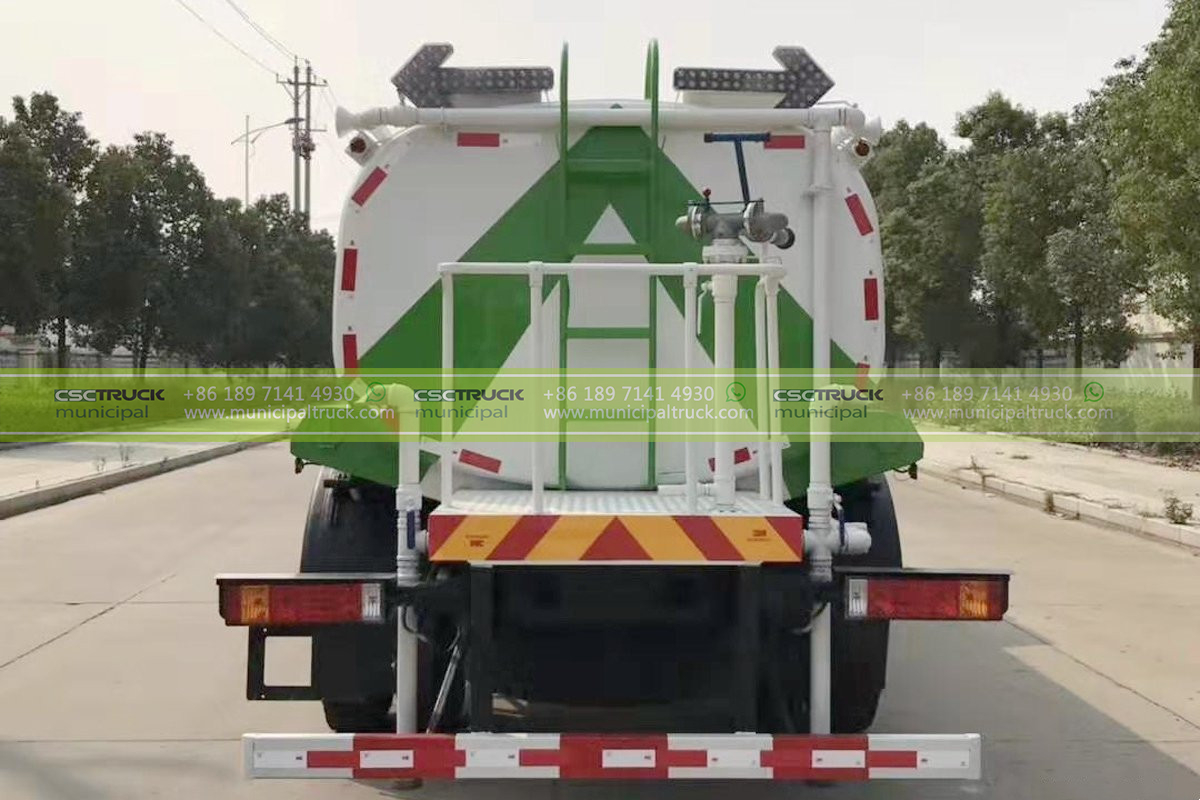

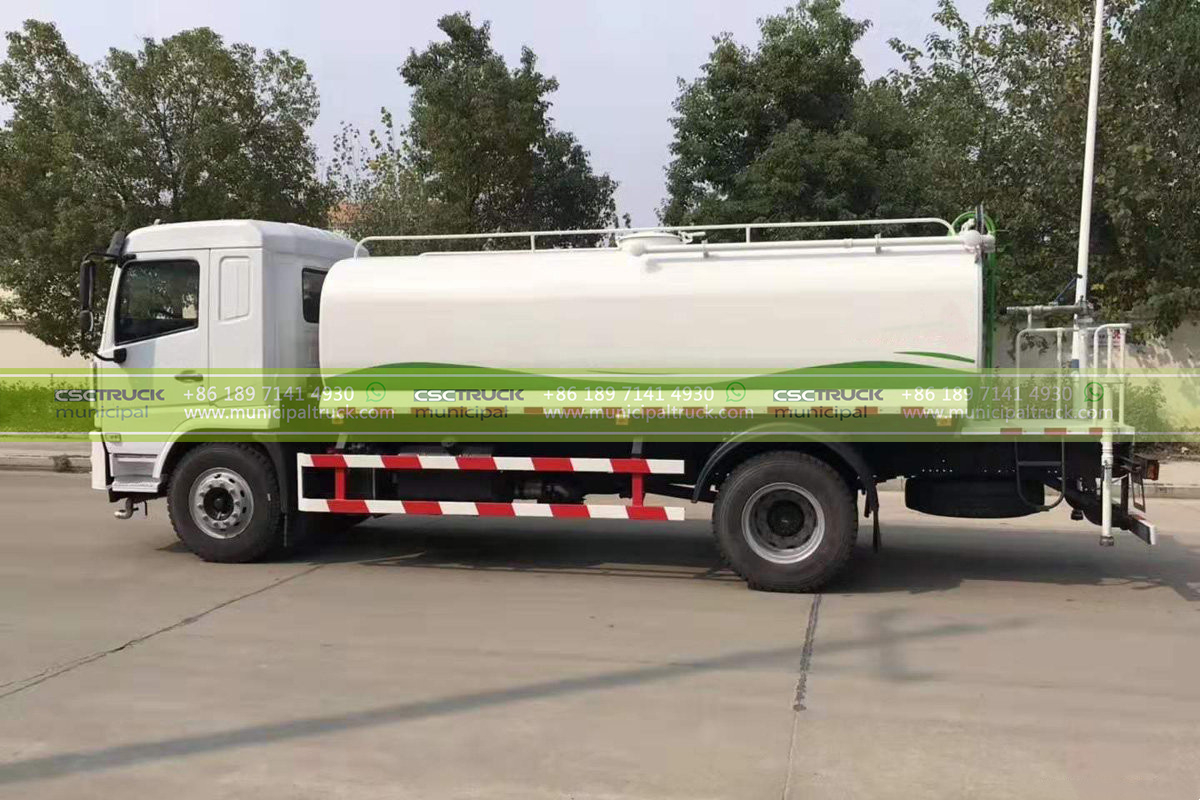

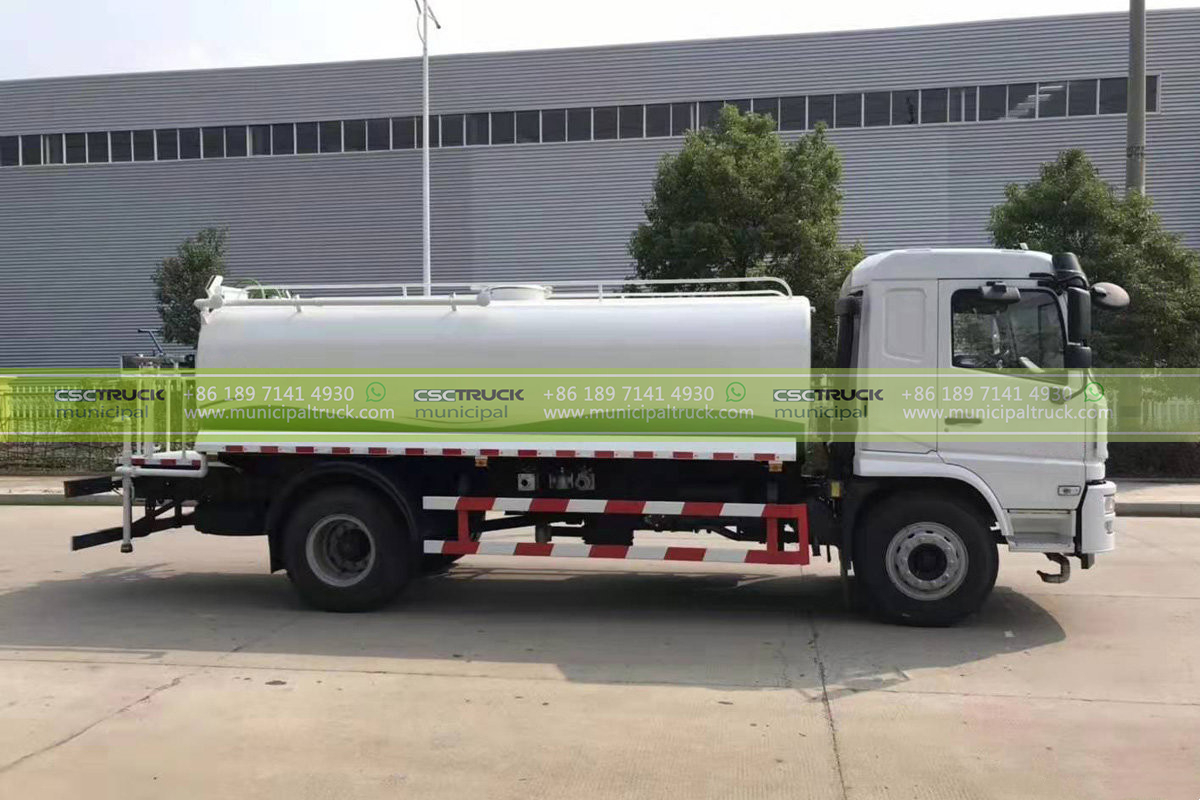

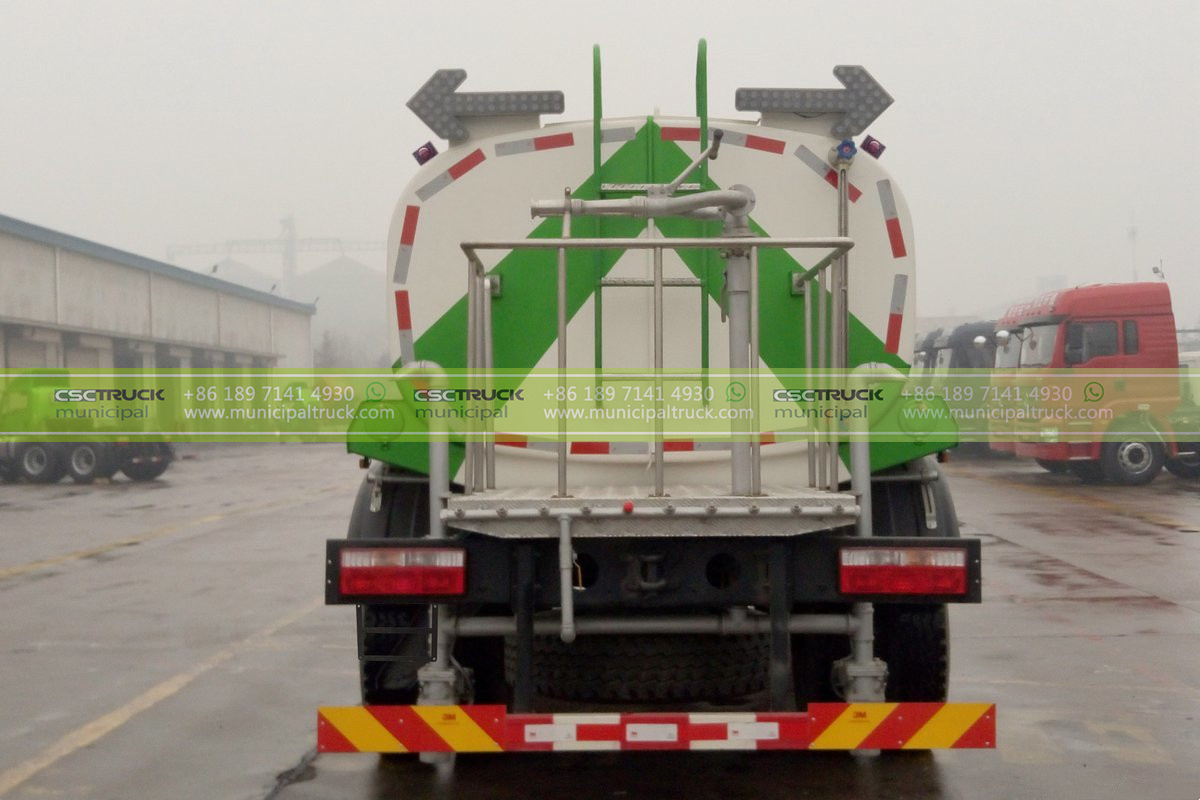

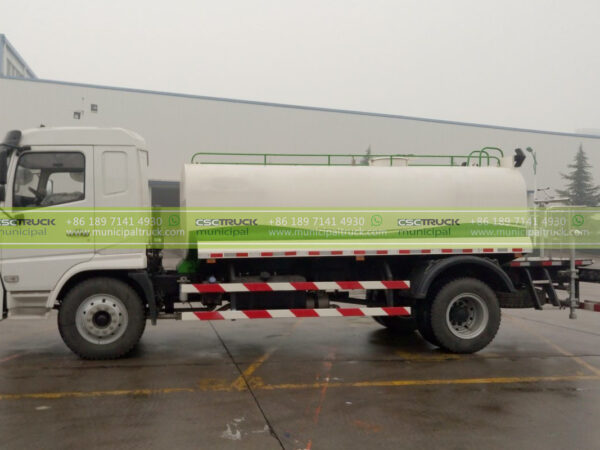

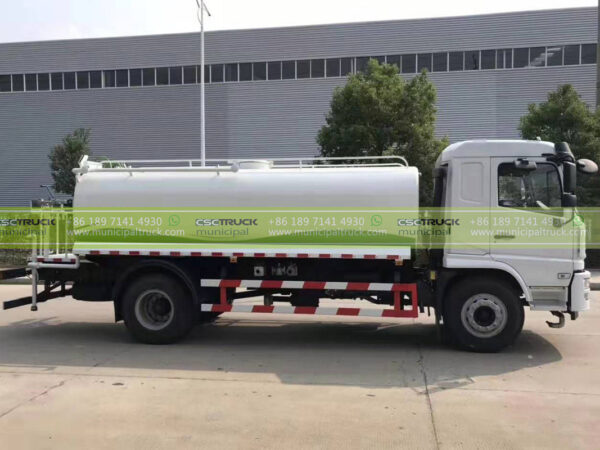

The truck has a tanker capacity of 10,000L and a tank body made of stainless steel 304 with a thickness of 6mm. The spraying width is ≥14m, the canon range is ≥35m, the suction height is >7m, and the full tank suction time is <15 minutes. The body system also includes front flushing, side spraying, a rear sprinkling nozzle, and a platform with a water cannon and gun.
Performance:
The Shacman 10 ton greening water sprinkler truck has a stainless steel self-priming sprinkler pump that delivers a flow rate of 60m³/h and a lift height of 90m. It has a self-priming height of 7m, making it easy to fill the tank from a water source. The truck is also equipped with a self-flow valve 1pc, a fire joint 1pc, and two water pipes.
Equipment:
The truck’s water cannon can rotate 360 degrees, and the water flow can be adjusted to heavy, medium, and light rain, drizzle, and mist. The vehicle is available in customized colors, and the delivery time is 50 days. The Shacman 10 ton greening water sprinkler truck is certified by CCC, ISO14001:2015, ISO45001∶2018, ISO9000, ISO9001:2015, and RoHS. It is suitable for heavy-duty use in urban greening and landscaping and is a popular choice in markets such as Africa, Eastern Asia, Mid East, North America, Oceania, South America, and Southeast Asia.
| Chassis | Shacman |
| Size | 7,800×2,520×2,850(mm) |
| GVW/Curb Weight | 16,000kg/9,660kg |
| Wheelbase | 4,200mm |
| Front/Rear Axle | 5.6/10.4T |
| Tire | 10.00R20 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | YUCHAI/YC6J200-33/200hp/euro 3 |
| Transmission | |
| Make/Model | FAST/8JS105TA |
| Gears | 8F+2R |
| Operation | Manual |
| Cabin | |
| Driving | SHACMAN L3000 4×2 Day Cab, Left/Right-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body System | |
| Tanker Capacity | 10,000L |
| Shape | |
| Material | Stainless steel 304 |
| Thickness | Tank Body 6mm |
| Performance | |
| Spraying Width(m) | ≥14m |
| Canon Range(m) | ≥35m |
| Suction Height | >7m |
| Full Tank Suction Time | <15 minutes |
| Equipment | |
| Sprinkler Pump | Front flushing, side spraying, rear sprinkling nozzle, and platform with water cannon and gun.
The water cannon can be rotated 360 degrees. The water flow can be adjusted to heavy, medium, light rain, drizzle, and mist. |
| Type | Stainless steel self-priming sprinkler pump |
| Flow Rate | 60m³/h |
| Lift Height | 90m |
| Self-priming Height | 7m |
| Other Parts | |
| Include | Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs |
