Chassis | |
Size | 8450x2480x3360(mm) |
GVW/Curb Weight | 15,000/10,300kg |
Wheelbase | 4700mm |
Front/Rear Axle | 7T/8T |
Tire | 10.00R20, 6+1 tires |
Engine | |
Type | Diesel |
Make/Model | CUMMINS/B210 33/210hp/Euro 3 |
Transmission | |
Make/Model | FAST/8JS |
Gears | 8F+1R |
Operation | Manual |
Cabin | |
Driving | SHACMAN L3000 4×2 Night Cab,Left Hand Drive |
Type | Steel construction, Single Row, Flat |
Passenger No. | 3 |
Garbage Container | |
Capacity | 12 CBM |
Tank Body Material | High tensile wear-resistant carbon steel |
Thickness | Side 4mm, Bottom 5mm |
Design | Sealed leakage proof |
Working Rotation Speed | 1400r/m |
Compaction Ratio | 1:3- 1:4 (Two-way compression) |
Hopper Volume | 0.8CBM |
Effective volume of bucket | ≥0.8cbm |
Loading Time | 8~10s |
Loading Cycle Time | ≤40s |
Unloading Time | ≤45s |
Discharge Type | Rear discharging |
Hydraulic System Pressure | 20MPA |
Control System | Front control in the cab, rear button control, and manual control |

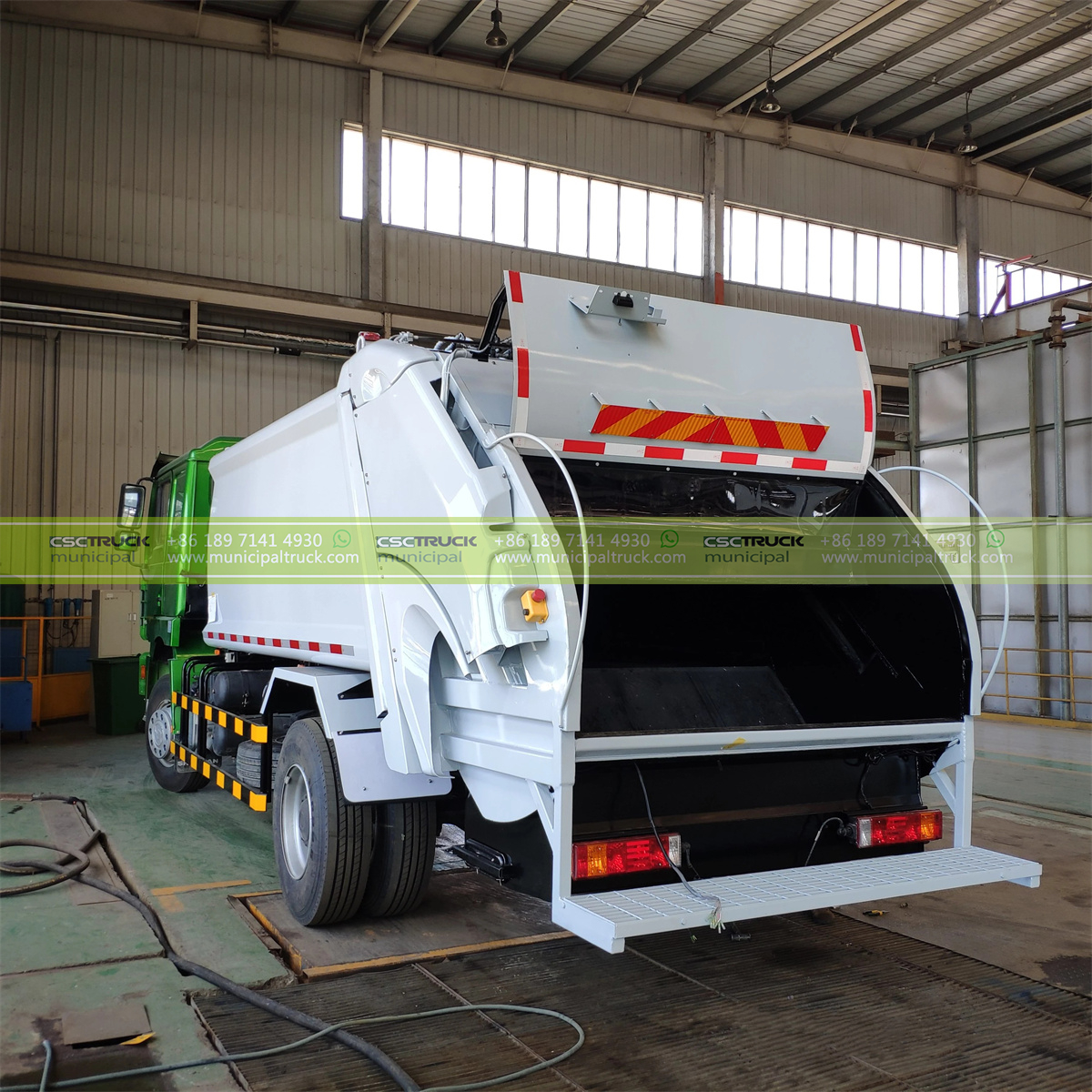

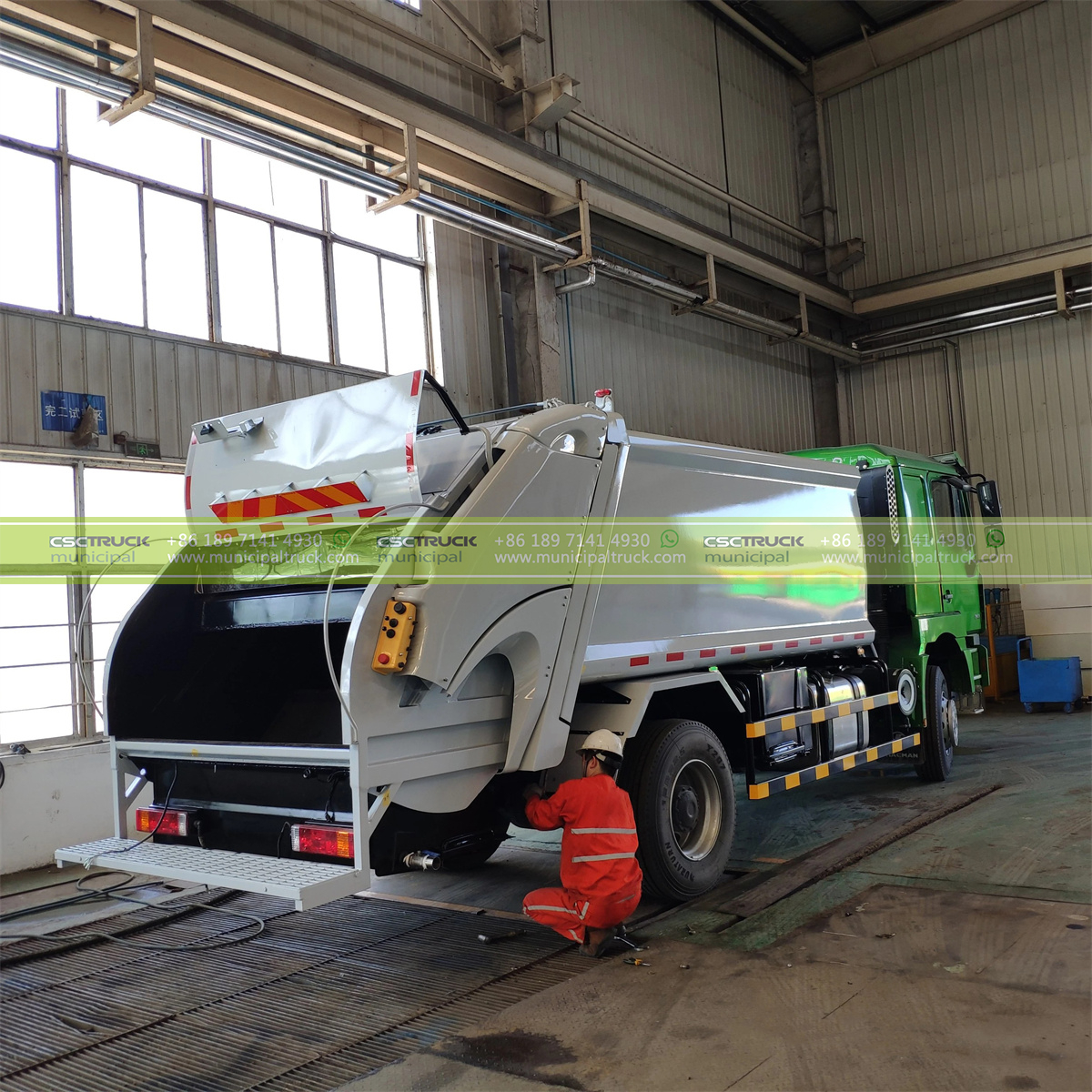

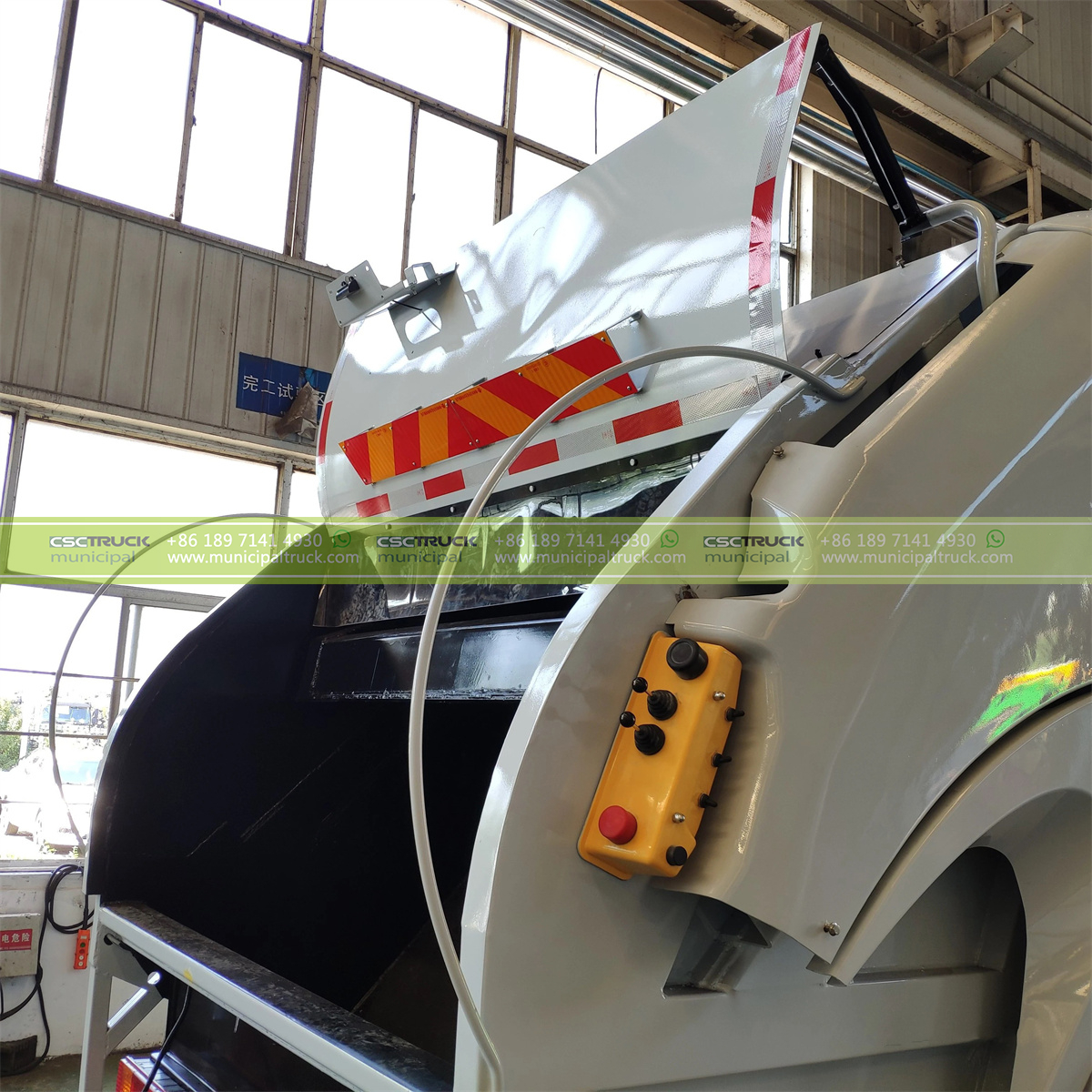

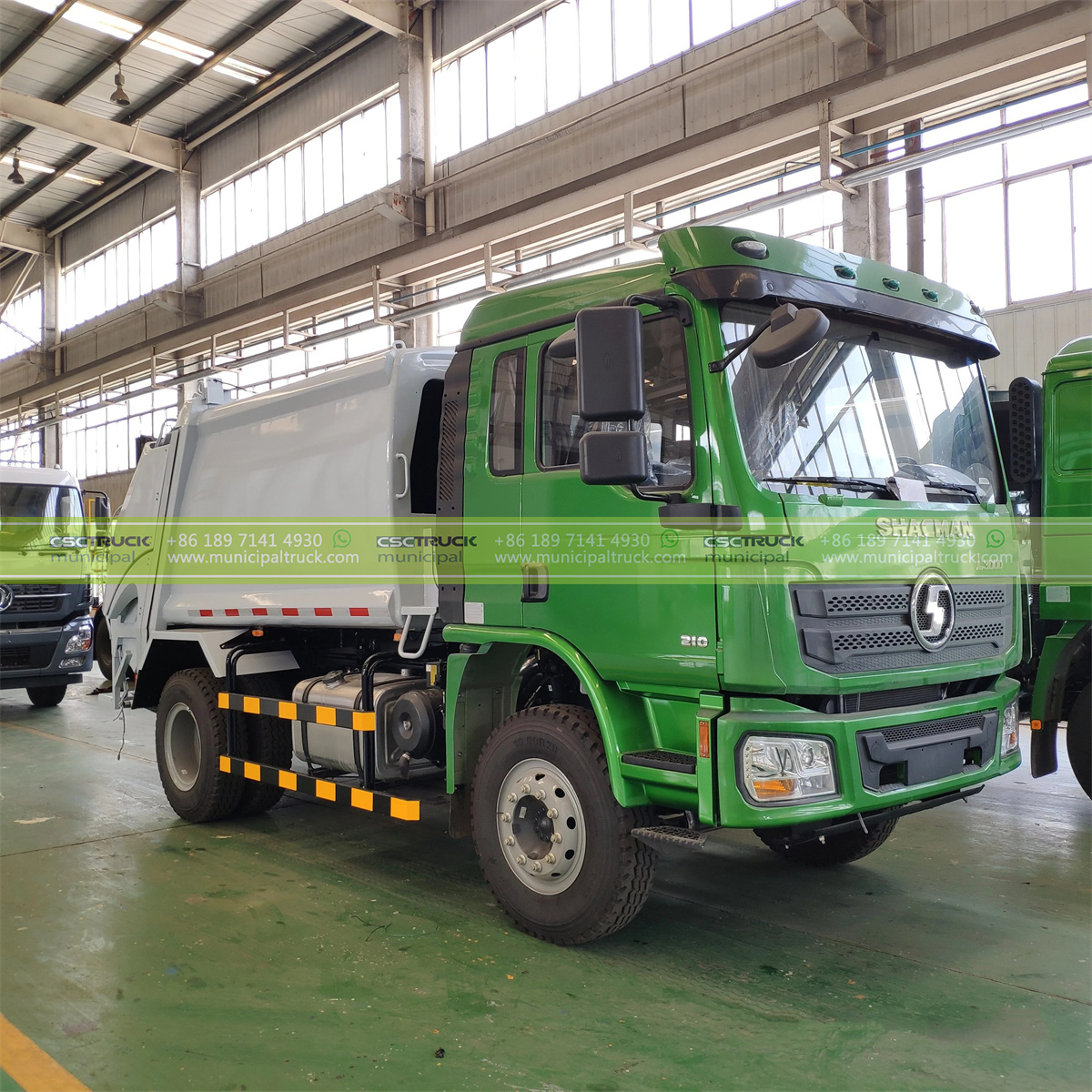

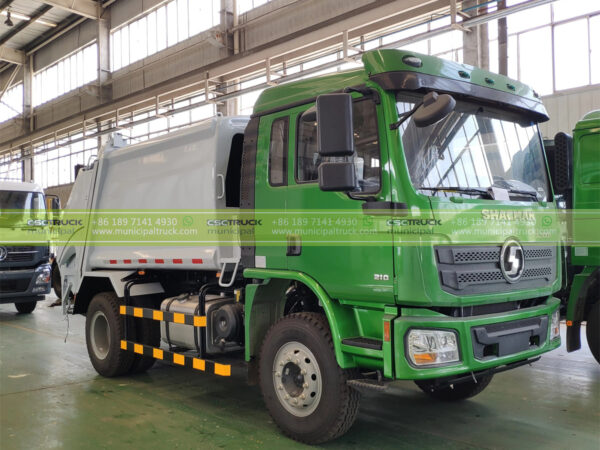

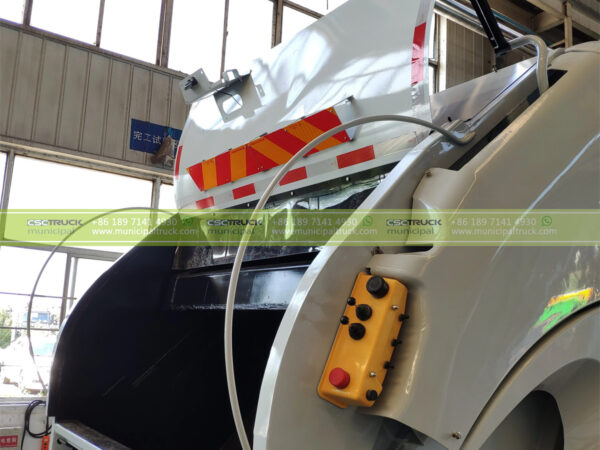

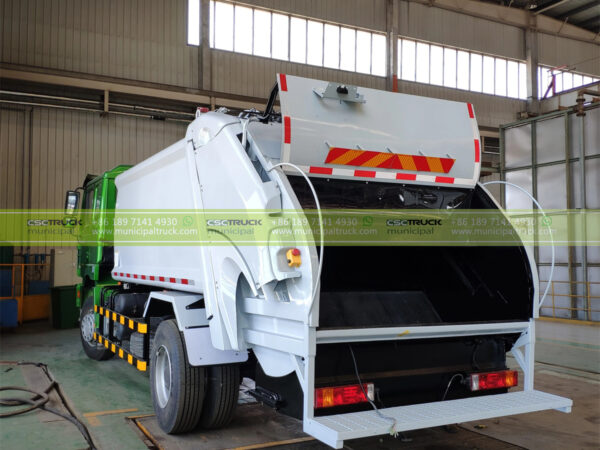

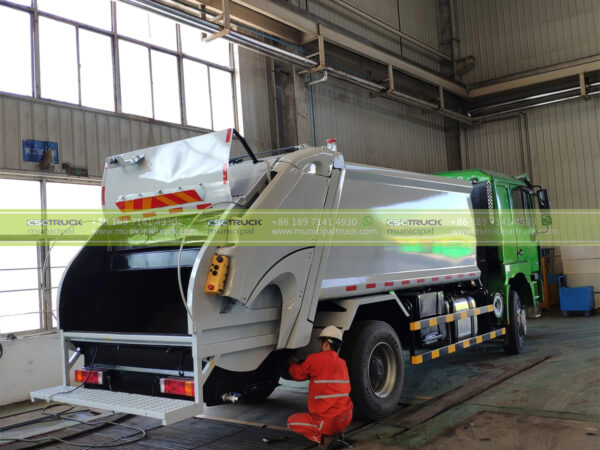

SHACMAN 12CBM Rear Loader Garbage Truck
Make/Model | CSCTRUCK/GC12SX210L3 |
GVW | 15,000kg, Heavy Duty Vehicle |
Cab Truck | SHACMAN L3000 4×2 Night Cab |
Engine | CUMMINS/B210-33/210HP/Euro 3 |
Transmission | FAST/8JS/Manual 8+1 Speed |
Garbage Container Capacity | 12 Cubic Meter |
Hopper Capacity | 1.5~2 Cubic Meter |
Categories: Garbage Truck, Rear Loader Garbage Truck
Certification | ISO9001:2015 |
---|---|
Chassis Truck | SHACMAN |
Color | Customized Color |
Condition | New |
Country of Origin | |
Customized | Yes |
Delivery Time | 50 Days |
Drive Mode | 4×2 |
Emission Standard | Euro III |
Fuel Type | Diesel |
Intercom | CIF |
Main Markets | Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia |
Packaging Details | Waxed |
R&D Capacity | ODM, OEM, Own Brand(CSCTRUCK) |
Shipping Vessel | Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment |
Steering | LHD |
Terms of Payment | T/T |
Truck Class | Heavy Duty |
Warranty Period | 12 Months |
