Brief

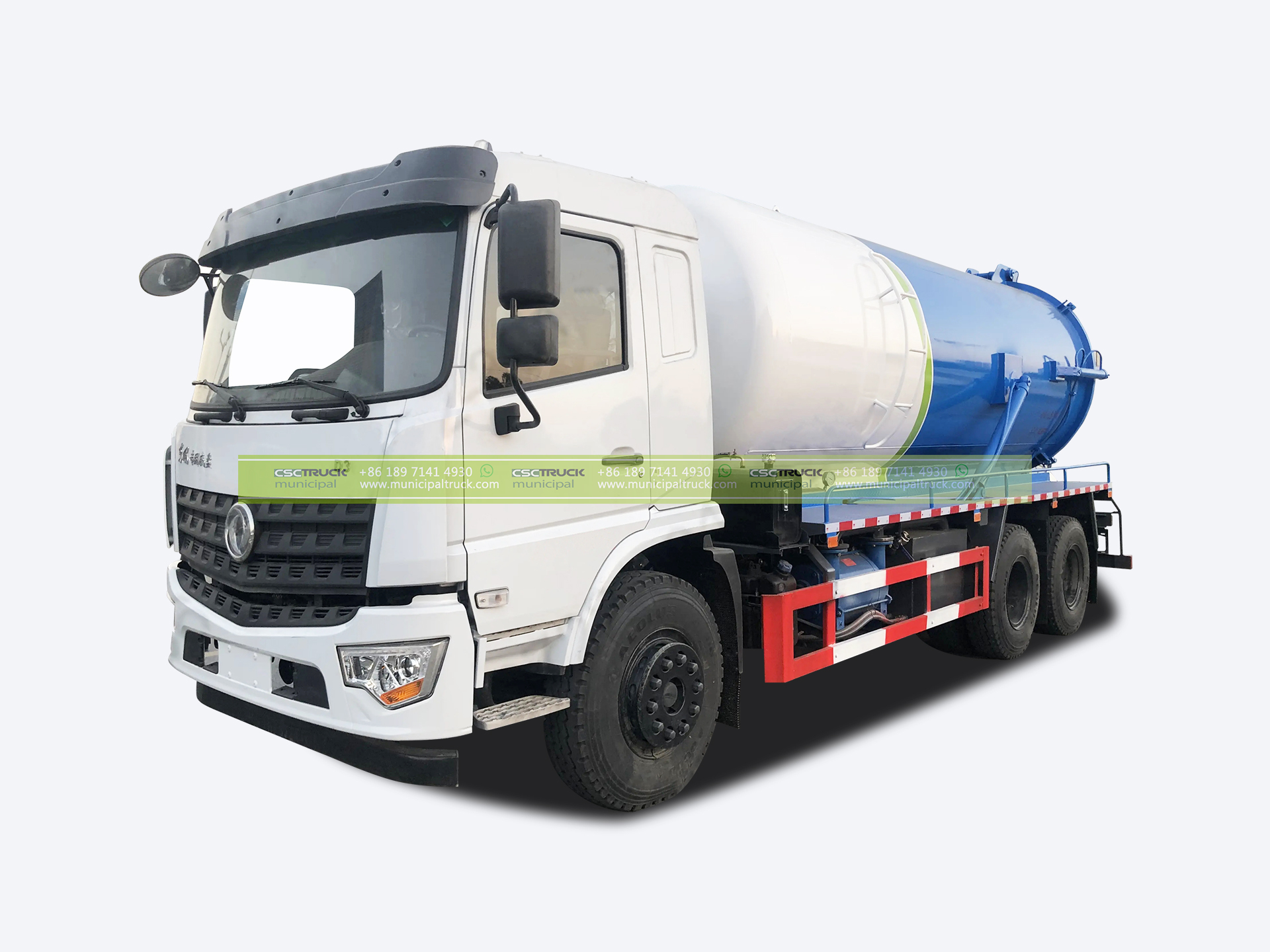

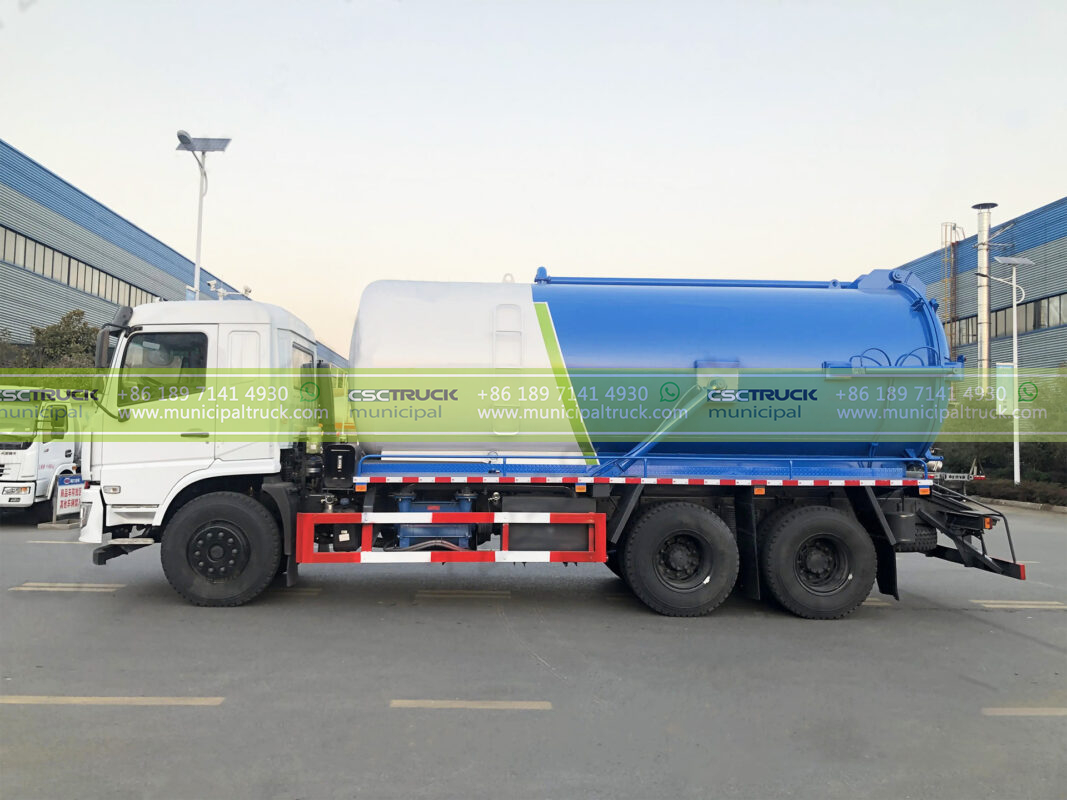

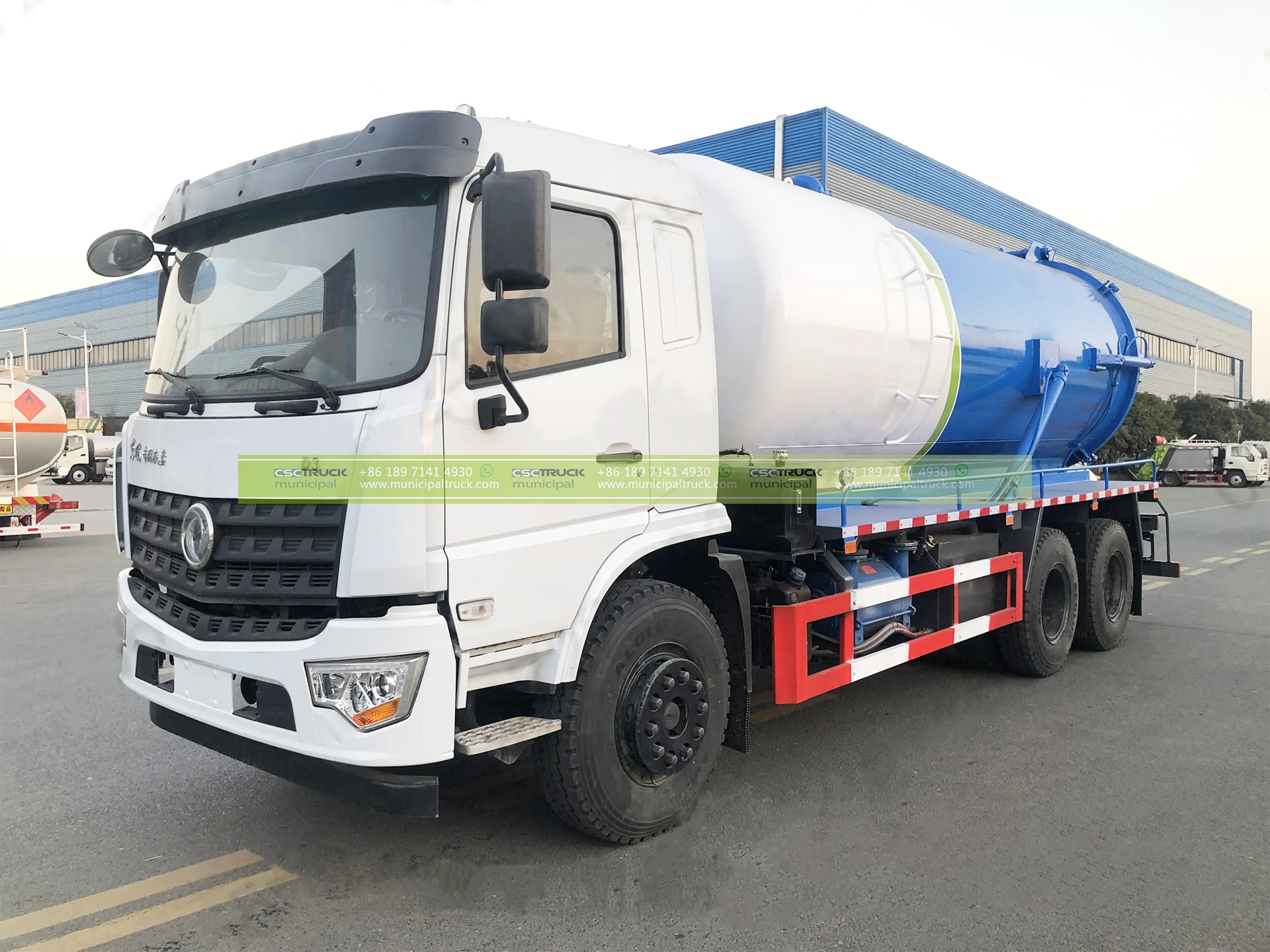

SHACMAN 18000 Liters Septic Suction Truck is mounted on a suitable SHACMAN F3000 6×4 Sleeper Cab truck chassis. The truck used technology derived from MAN, the F3000 brings both comfort and power under the same roof, it is truly a force to be reckoned within the heavy-duty truck industry. Engine is WP10.340E22 ,340hp, emission class in euro 2. This Septic Suction Truck is equipped with FAST 10 gears manual transmission.
SHACMAN’s 18000 Liters Septic Suction Truck tank capacity is 18,000 liters, and it is able to handle bulk liquid waste transportation and removal – as well as serve several jobs in a single trip. With a capacity of 21,600LPM compressor vacuum pump, this waste truck provides quiet operation and odor control, making it suitable for residential neighborhoods and commercial sites.

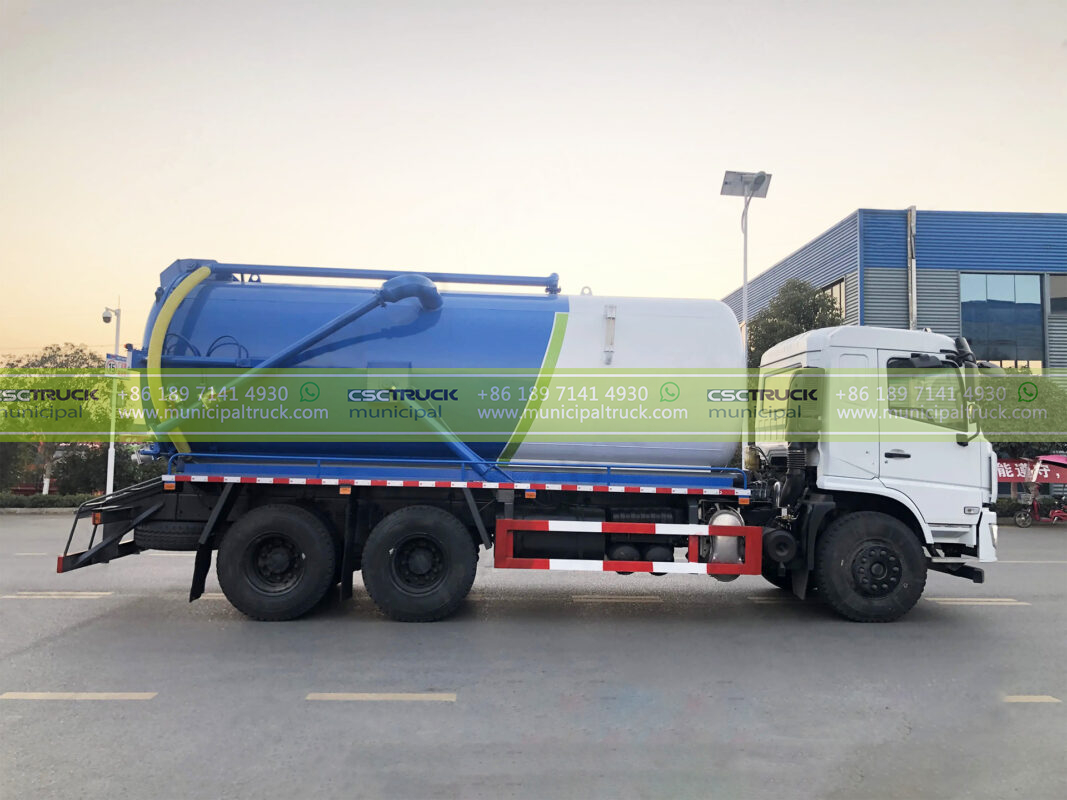

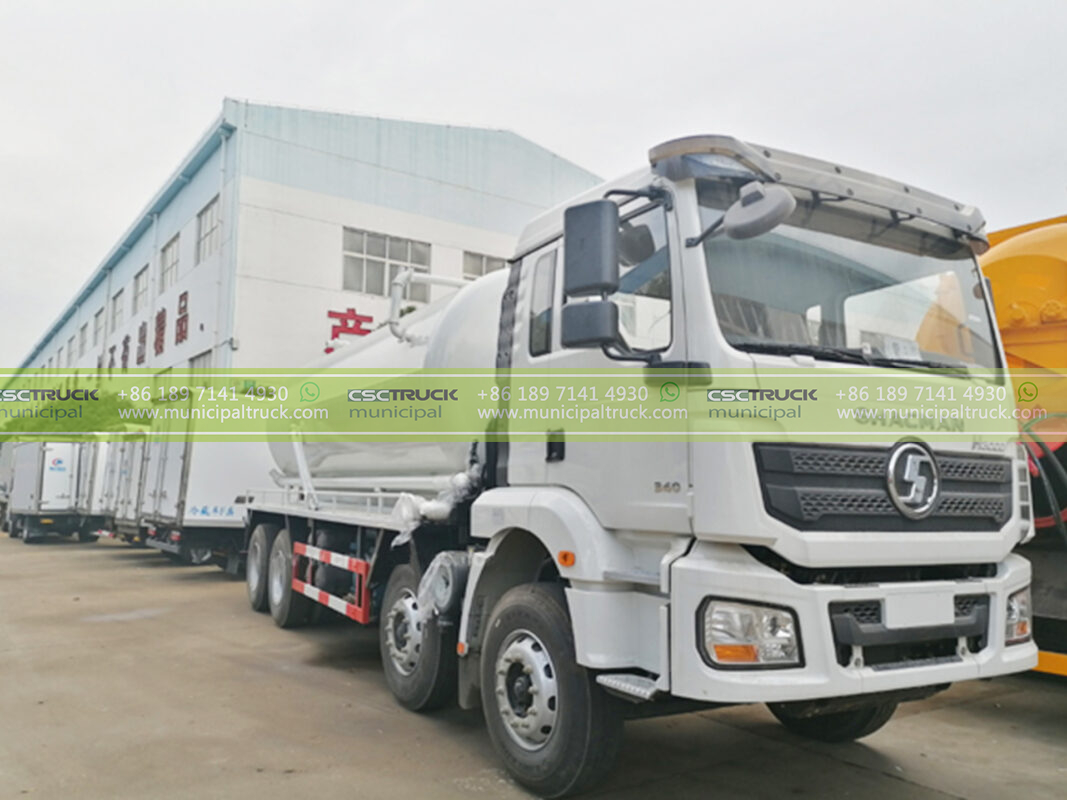

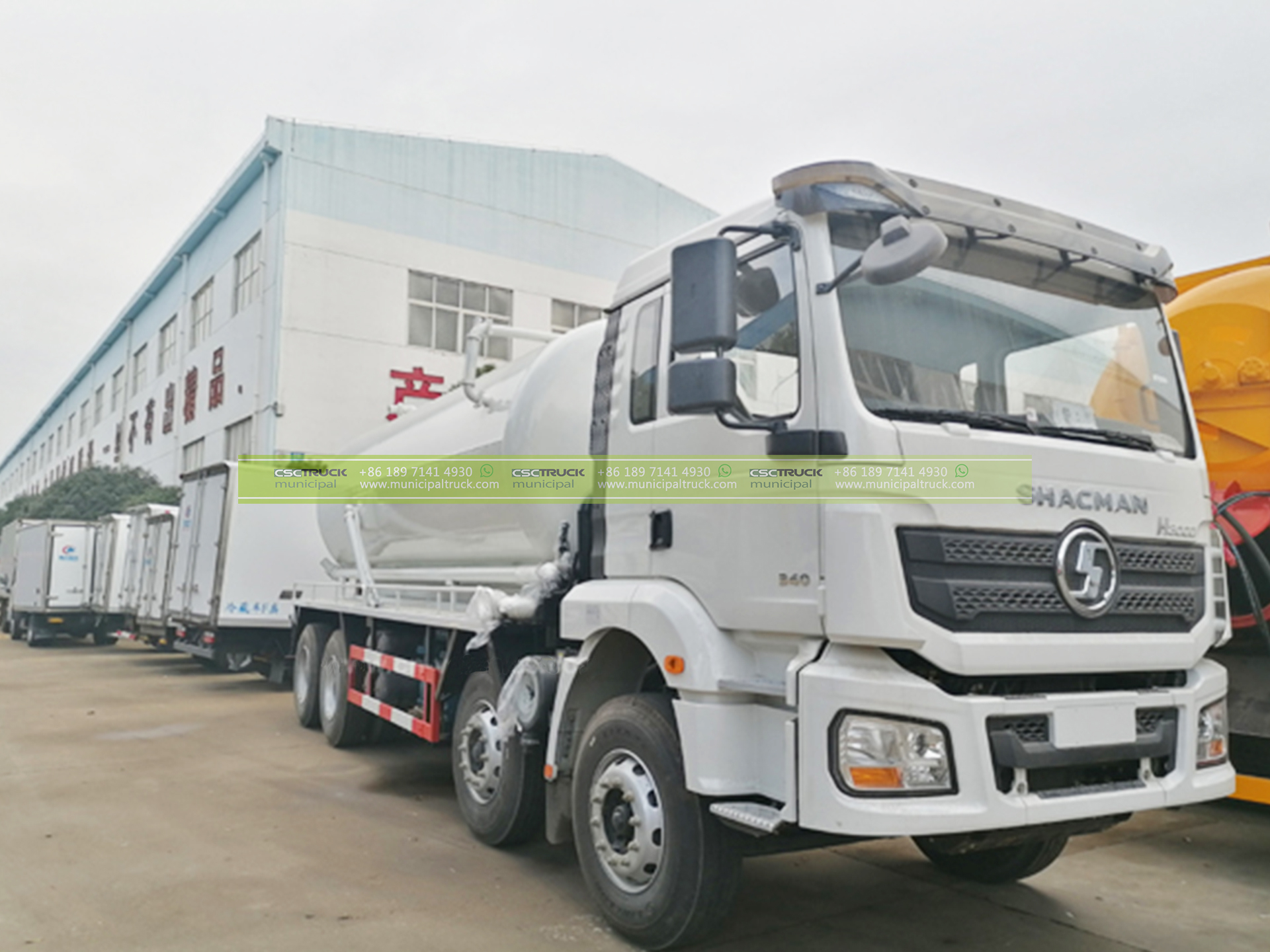

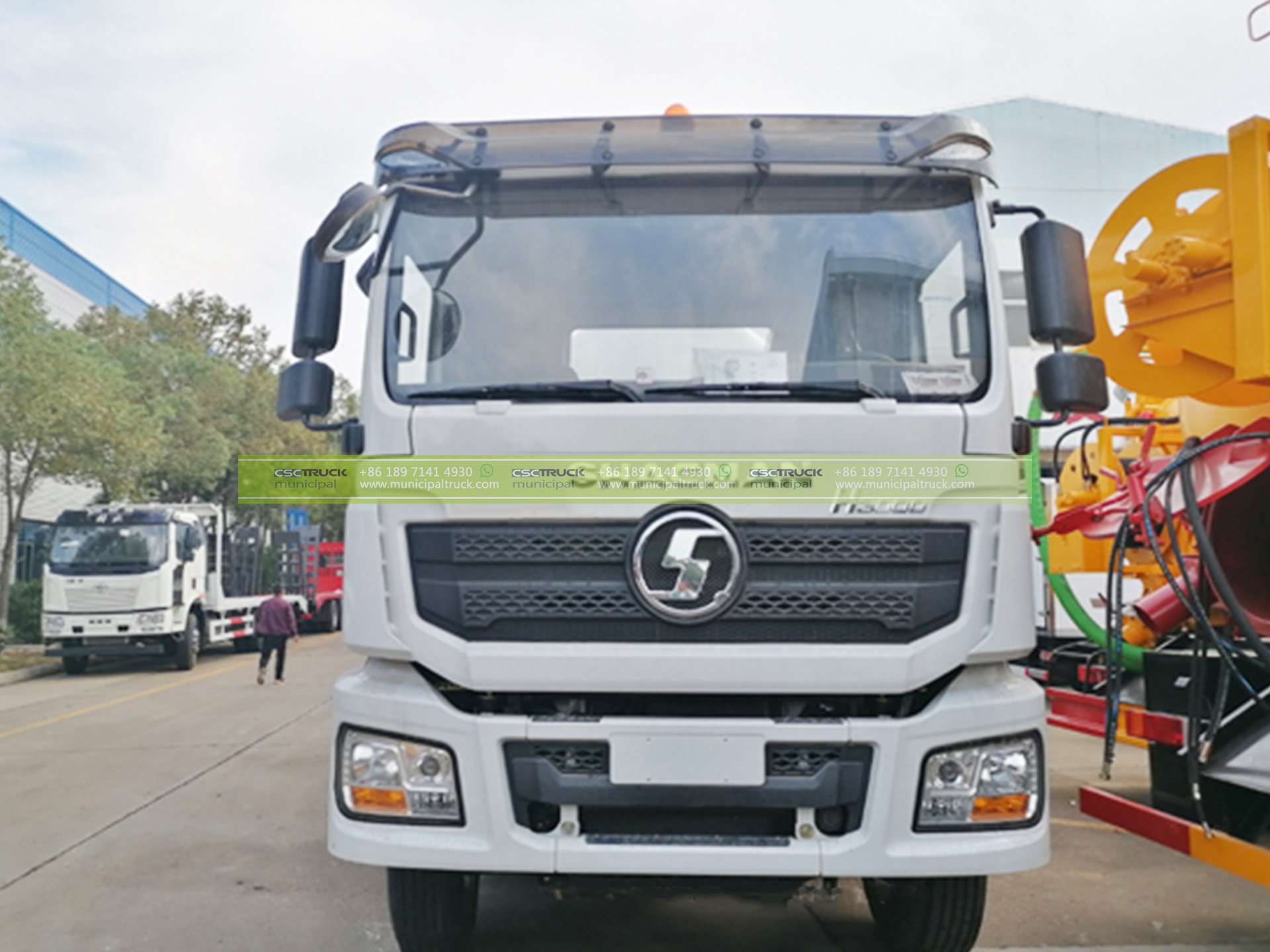

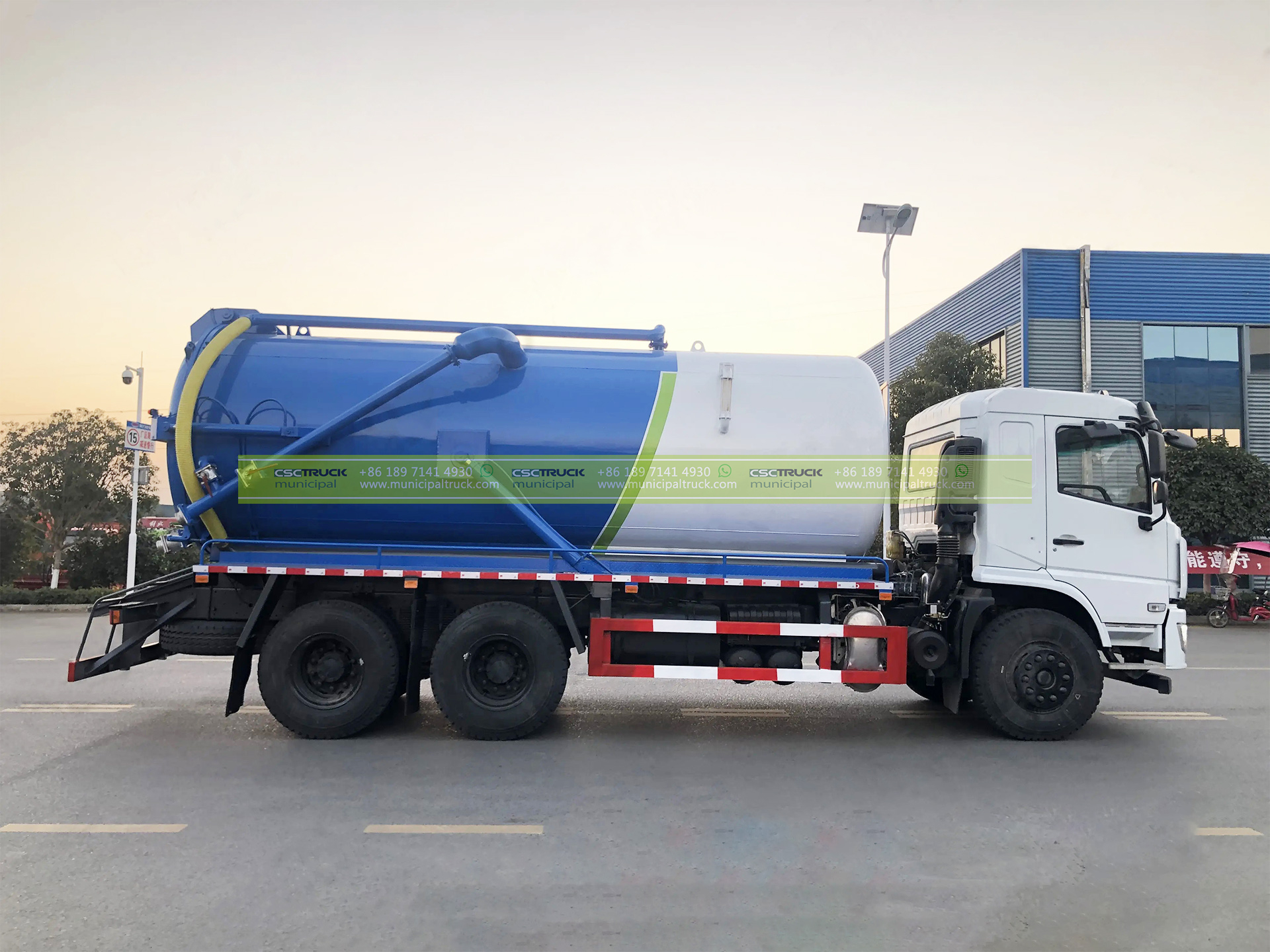

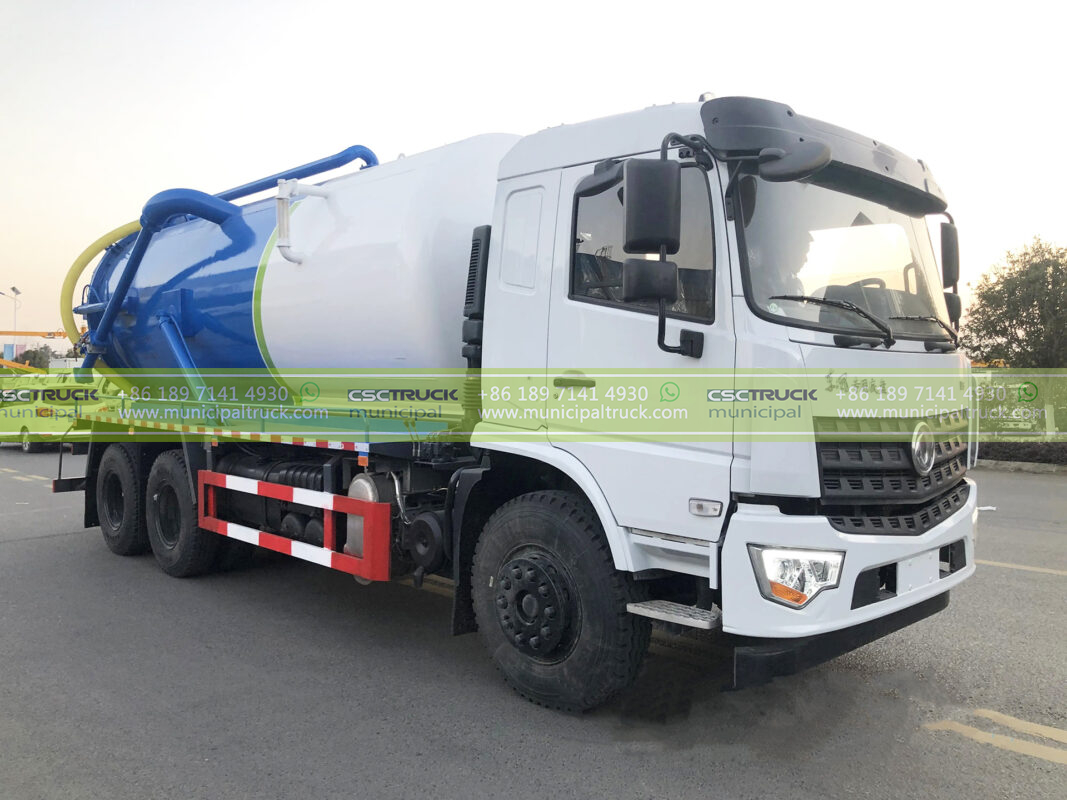

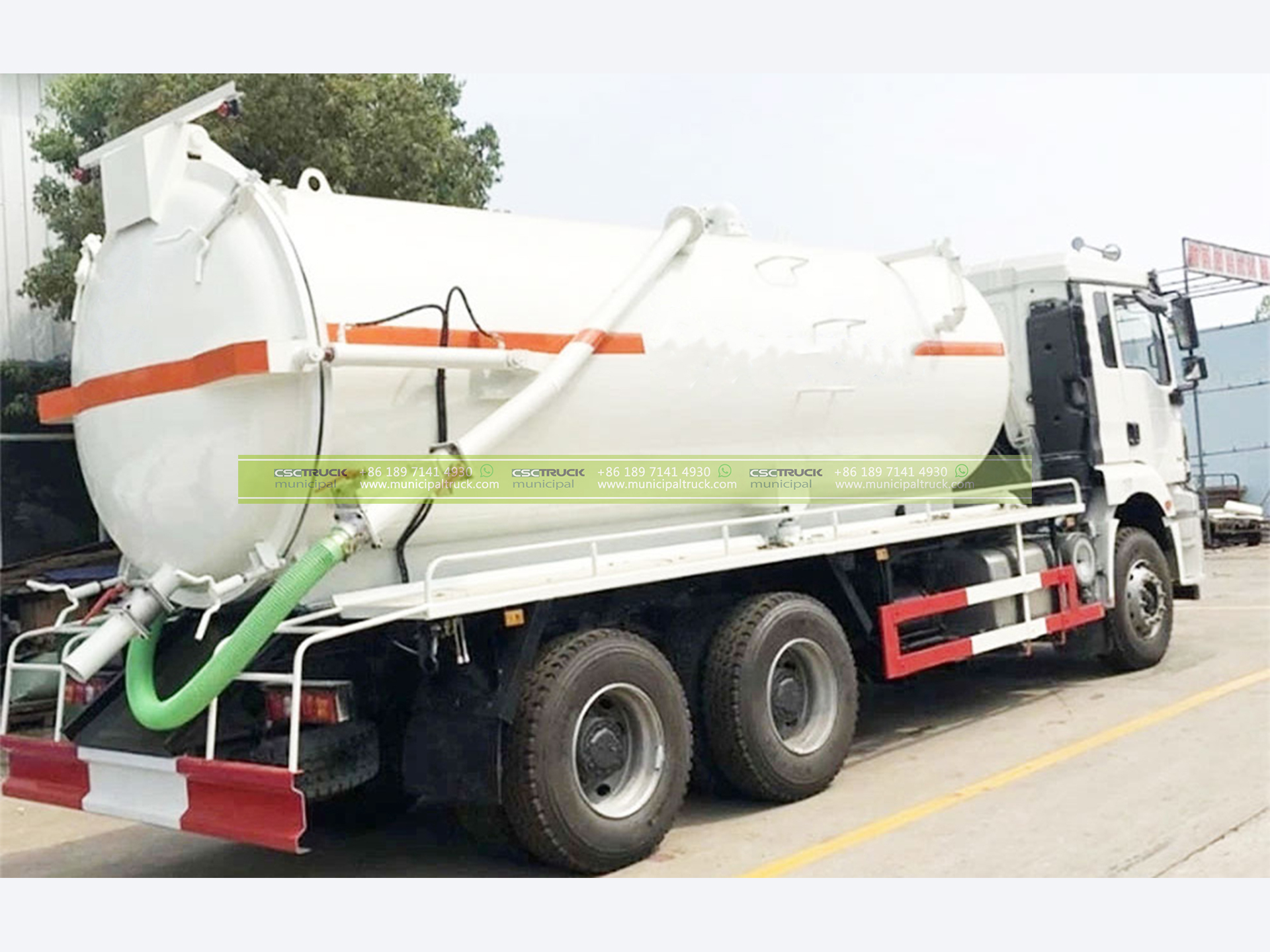

Gallery
See this Truck Video on Youtube
features
Chassis Truck
High performance
Improved muffler, improved ground clearance, new exhaust system layout, lowest center of gravity, and new stabilizing technology.
Reliable
Military-grade chassis, reinforced driver cab, strengthened transmission shaft, improved cab front suspension, new front axle stabilizer bar, and muffler, imported cab turning shaft, off-road racing quality cab damping spring.
Comfortable and Safe
F3000 is designed with an improved driver’s cab utilizing advanced technologies from the German truck giant, MAN. Spacious, comfortable, and safe.
FAST engine, FAST twin center shaft structure gearbox, high ratio single stage axle, vehicle power increased by 20%.
Mature Power Delivery System
Mature power delivery system, increased overall efficiency, higher uptime, lower maintenance cost.
Body Unit
Efficient and Convenient
The sewage suction truck has the characteristics of high suction efficiency, self-suction, and self-discharging. The vacuum pump adopts a CVS VacuStar W1300 vacuum pump, flow capacity of 21,600LPM, fast pumping speed, time to fill tank: ≤5min, suction distance: ≥8m. It has a long service life, fast working speed, easy operation, and convenient transportation.
Compressor Vacuum-Pump
W1300 was developed especially for the high requirements for mounting in suction vehicles, municipal vacuum trucks, and combination trucks (combined suction and water jetting). The water-cooled series W consists of 3 sizes with a volume flow of up to 1600 m³/h / 942 cfm.

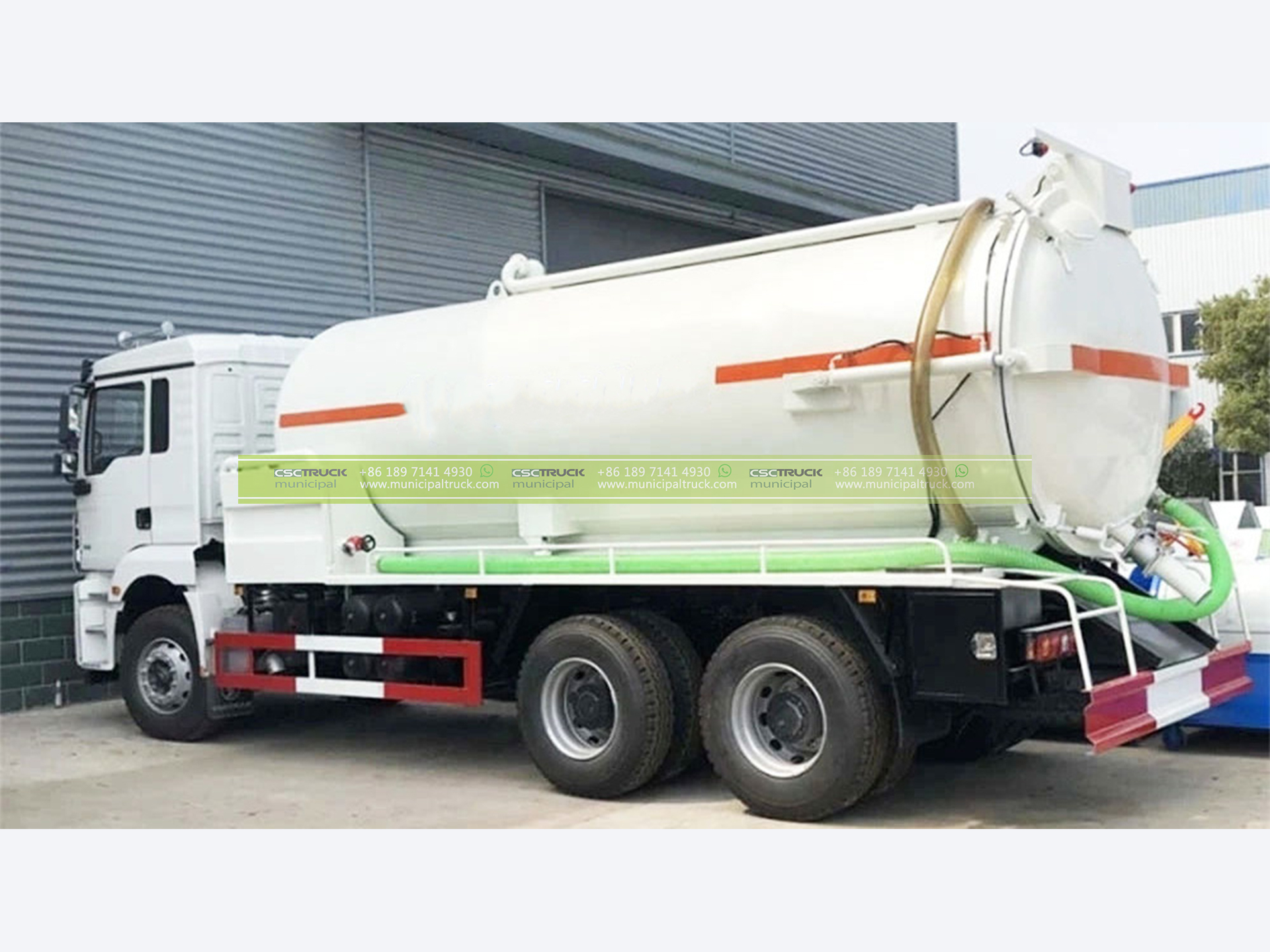

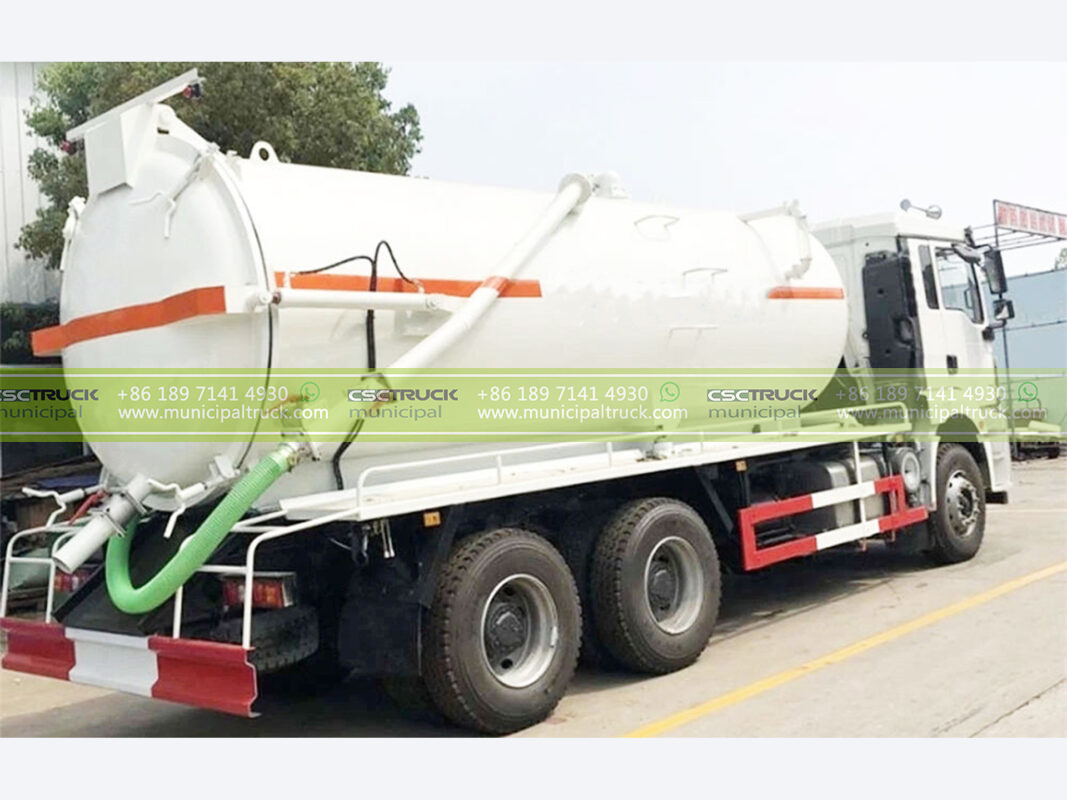

High-Quality Tank
The tank material is made of high-quality steel plate, thickness is 5mm, the head is made of 5mm steel plate by one-time die casting (the front and rear heads are reinforced with “well”-shaped steel lining), and the tank is oval. Adopting a high-quality ball valve, with corrosion resistance and anti-freeze cracking ability.
Reliable in Use
In order to increase the service life of the vehicle and reduce the failure rate, the vehicle is equipped with an anti-overflow tank sealer, which avoids the overflow of tanks that often occurs in other types of vehicles, and the damage to the vacuum pump caused by the overflow of tanks. Faults such as poor drainage or pumping effect.
Safety Devices
– Primary Shutoff
– Pressure Relief Valve
– Vacuum Relief Valve
– Vacuum/Pressure Gauge
– Contents Indicator
– Oil /Gas /Water Separator
specification
| Size | 9950×2550×3350(mm) |
| Gross weight | 25,000kg |
| Curb Weight | 11,980kg |
| Wheelbase | 4375+1400mm |
| Driving type | 6*4 LHD |
| Chassis model | SHACMAN F3000 |
| Tire size | 11.00R20 |
| Number of Tires | 10+1 |
| Passengers in cab | 3 |
| Engine model | WP10.340E22 ,340hp, Euro 2 |
| Sewage Tank | 18,000L |
| Body Material | High-strength carbon Steel |
| Vacuum Pump | CVS VacuStar W1300,Compressor,Capacity 21,600LPM |
