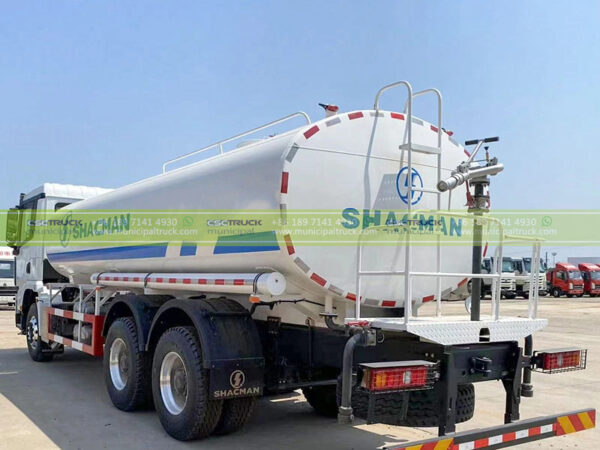

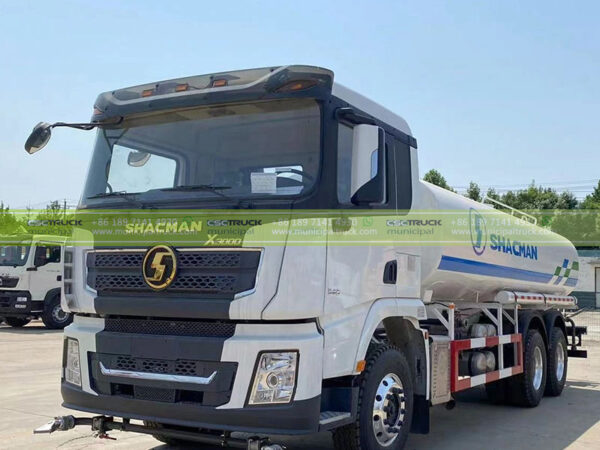

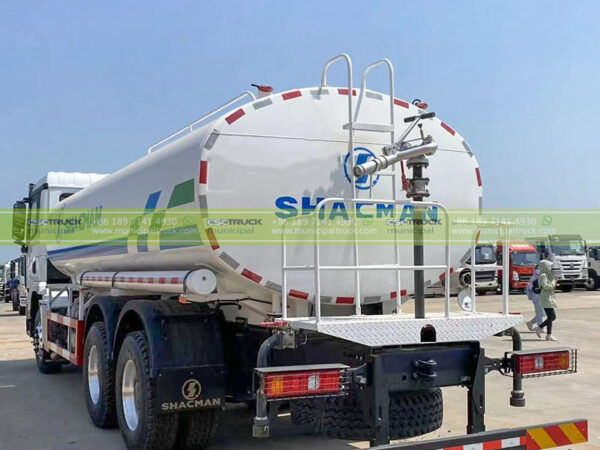

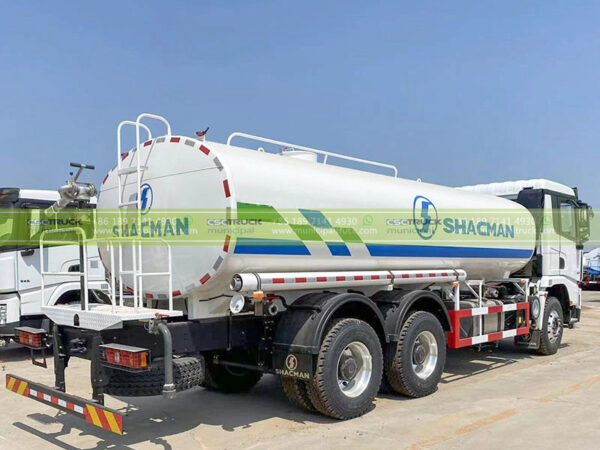

BRIEFS:

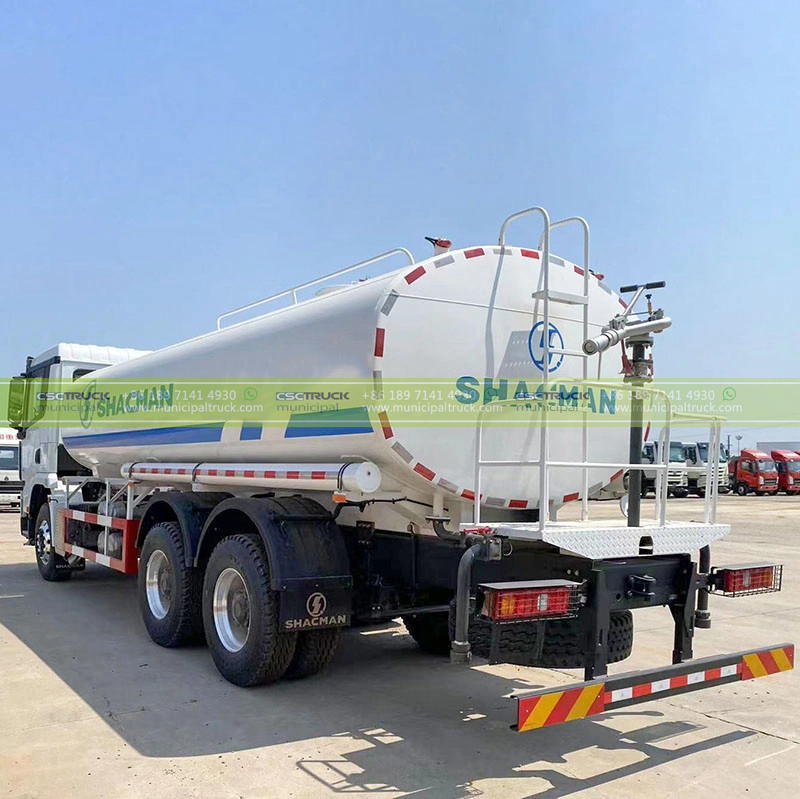

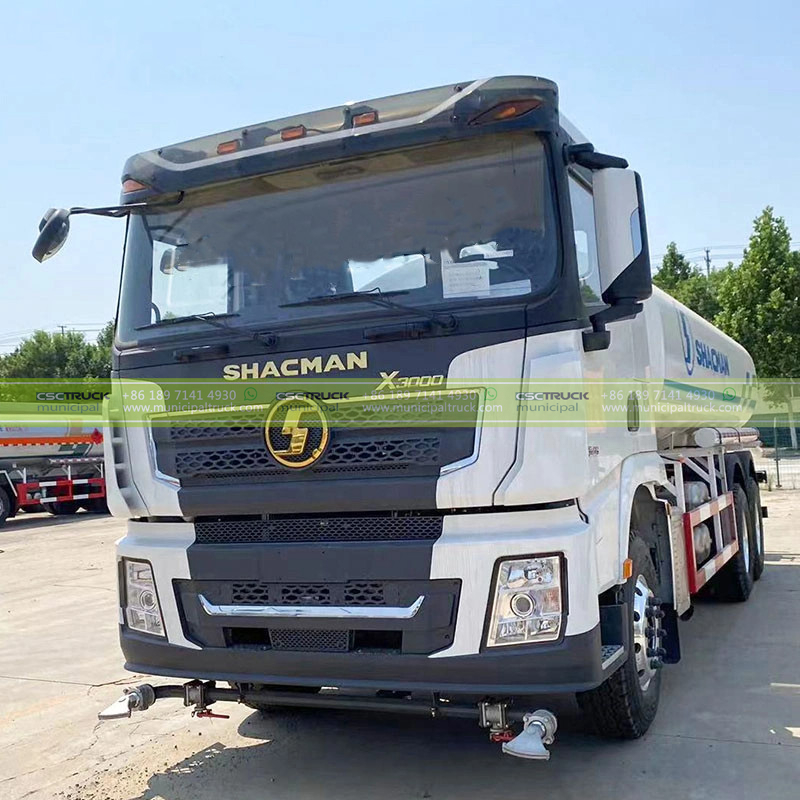

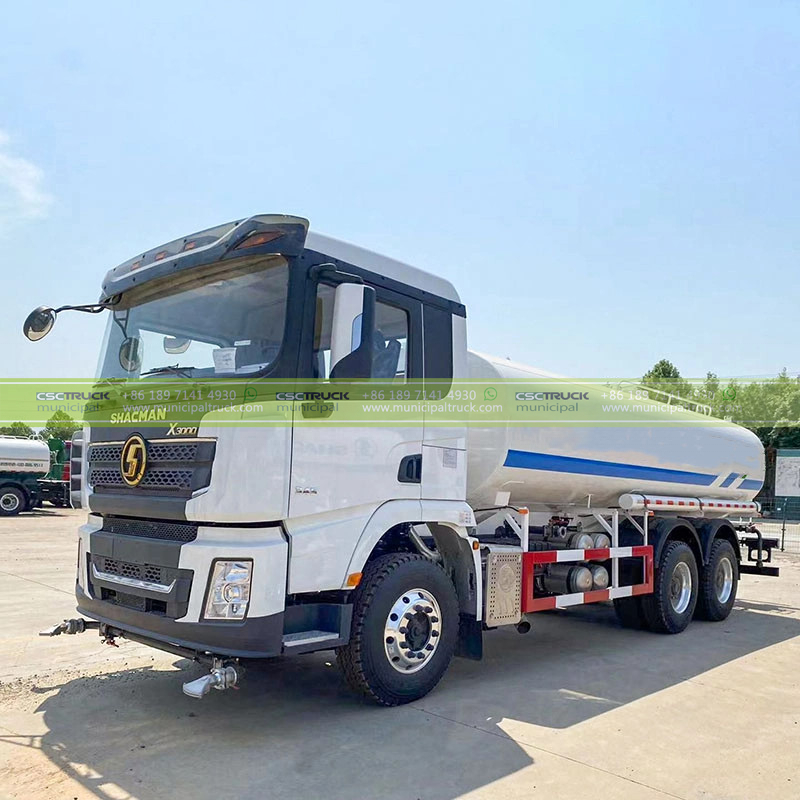

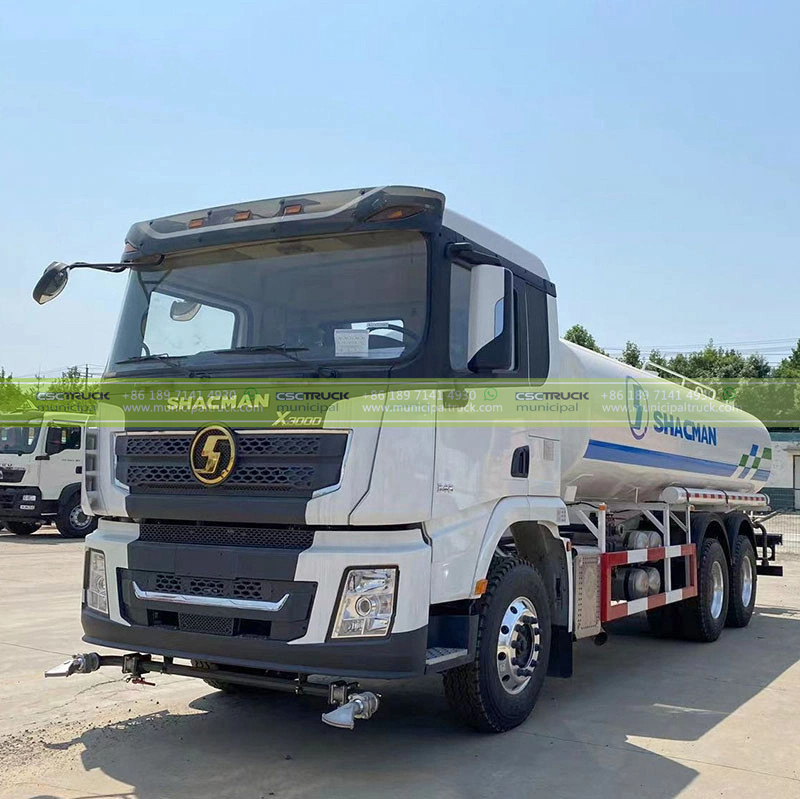

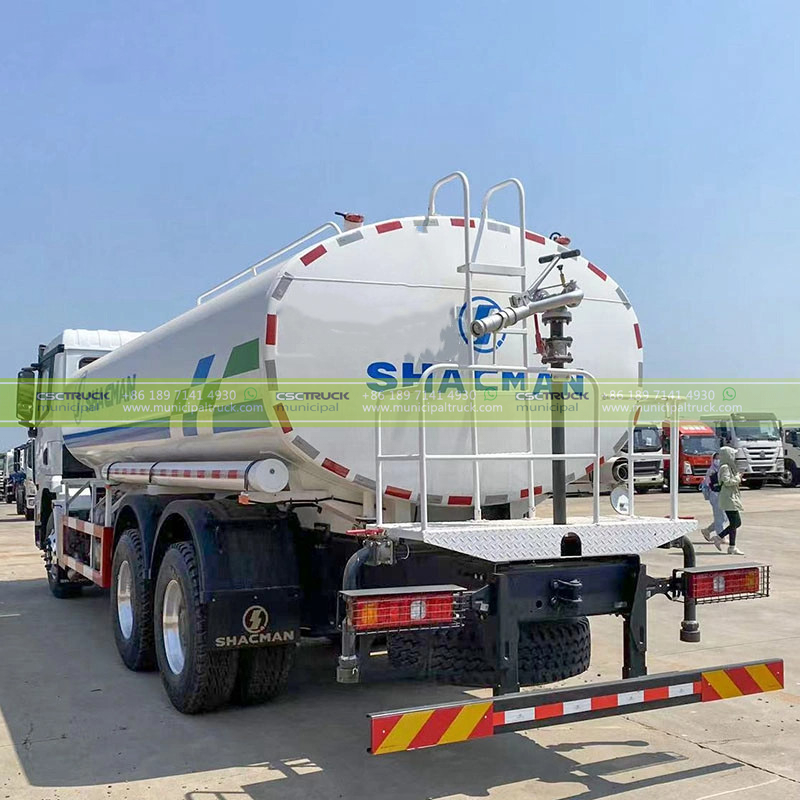

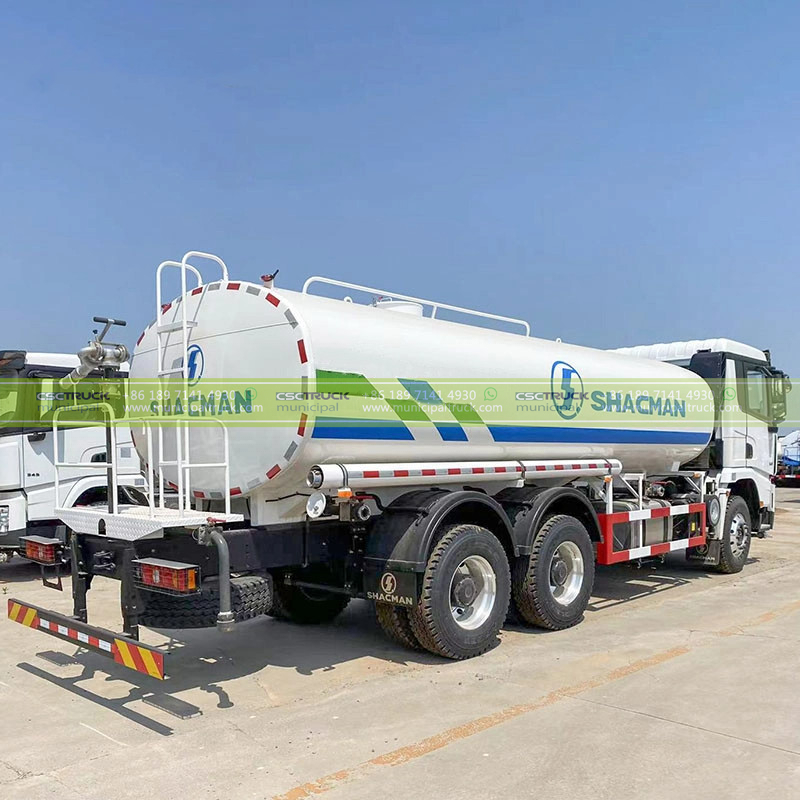

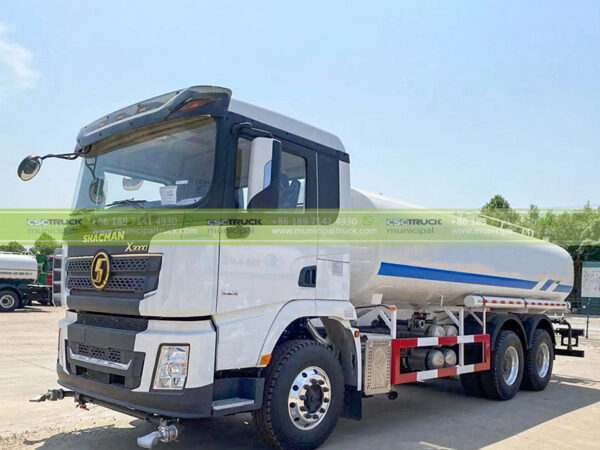

The Shacman 30 Ton Water Tanker Sprinkler Truck is a robust and versatile vehicle designed for efficient water transportation and sprinkling operations. With its powerful engine, spacious cabin, and advanced features, it’s ideal for various industrial and municipal applications.
FEATURES:

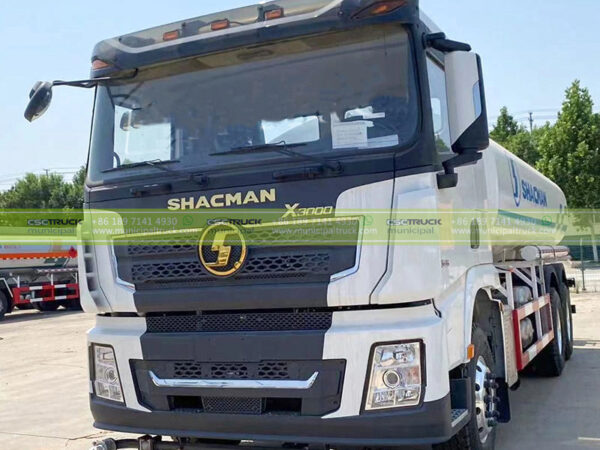

Cabin:
- Seating and Comfort: The spacious cabin is designed for the comfort of the driver, with two seats and a bed for long journeys.
- Visibility: Equipped with a 2-arm windscreen wiper system with three speeds for optimal visibility in all weather conditions.
- Driver Comfort: The driver’s seat is damped adjustable and comes with heating and ventilation for maximum comfort.
- Sun Protection: An exterior sun visor provides shade and reduces glare, improving driver visibility.
- Safety: Safety belts are provided for the driver’s and passengers’ safety.
- Steering Wheel: The steering wheel is adjustable for customized driving comfort.
- Audible Warning: An air horn is included for audible warnings.
- Climate Control: The cabin features an air conditioner for heating and cooling, ensuring a comfortable environment for the driver.
- Suspension: The truck boasts a 4-point support fully floating suspension, shock absorbers, and an air roof spoiler for a smooth and stable ride.
Engine:
- Model: WD615.47
- Powerful Performance: With 371 HP (2200 rpm) and a maximum torque of 1820 Nm (1100-1500 rpm), the engine delivers outstanding power and performance.
- Efficient Displacement: The 9.726 L engine boasts efficient fuel consumption and performance.
- Emissions: The engine complies with Euro II emission standards.
- Type: It is a 6-cylinder in-line diesel engine with water cooling, turbo-charging, intercooler, and 4-stroke common rail electronic control.
Clutch:
- Type: The hydraulic-operated Φ430 diaphragm spring clutch with air assistance ensures smooth and reliable operation.
Transmission:
- Type: The 12-speed HW19710 transmission offers 12 forward and 2 reverse speeds, providing versatility in different driving conditions.
Axles and Suspension:
- Front Axle (HF9): Equipped with a double T-cross section beam, it has a rated loading capacity of 9,000 kgs.
- Driving Axle (HC16): Features pressed axle housing, central reduction with hub reduction, and differential locks between wheels and axles (Ratios: 4.42, 4.8).
- Suspension: The front suspension includes hydraulic telescopic double-action shock absorbers and a stabilizer, while the rear suspension consists of leaf semi-elliptic springs, a bogie spring, and a stabilizer.
Steering and Brakes:
- Steering System: It features a famous power steering system (model 8118) with hydraulic power assistance for easy and precise steering control.
- Brake System: The service brake is a dual-circuit compressed air brake, and the parking brake (emergency brake) is spring energy operated with compressed air assistance. Additionally, it has an engine exhaust brake for auxiliary braking.
Electrics:
- Voltage: The vehicle operates on a 24 V electrical system, with negative grounding.
- Charging: An alternator rated at 1540W ensures sufficient electrical power.
- Starting: The start motor has a power rating of 7.5 kW.
- Battery: Equipped with two 12V/165Ah batteries.
Tires:
- Specifications: The truck rides on reliable 12.00R20 tires suitable for various road conditions.
Fuel Tank:
- Capacity: The 400L diesel tank provides ample fuel storage for long journeys.
Weights & Dimensions:
- Dead Weight: The vehicle’s dead weight is 12,530 kg.
- Gross Vehicle Weight: It can handle a gross vehicle weight of up to 33,000 kg.
- Gross Combination Weight: With a maximum gross combination weight of 80,000 kg, it’s suitable for heavy-duty tasks.
- Overall Dimensions: Measuring 9,445 x 2,560 x 3,350 mm (LWH), it offers a substantial cargo capacity.
- Wheelbase: The wheelbase is 4,300+1,350 mm, providing stability and maneuverability.
- Front/Rear Overhang: Front overhang is 1,500 mm, and rear overhang is 725 mm.
- Wheel Track: The front wheel track is 2,022 mm, and the rear wheel track is 1,850 mm.
- Ground Clearance: The minimum ground clearance is 314 mm.
- Approach/Departure Angle: It has an approach angle of 16 degrees and a departure
SPECIFICATIONS:
| Category | Specification |
|---|---|
| Cabin | – Seats: Two seats and one bed
– Windscreen Wiper System: 2-arm with three speeds – Driver’s Seat: Damped adjustable with heating and ventilation – Sun Visor: Exterior – Safety Belts: Yes – Steering Wheel: Adjustable – Horn: Air horn – Air Conditioner: Yes – Stabilizer: Transverse – Suspension: 4-point support fully floating suspension + shock absorber + air roof spoiler |
| Engine | – Model: WD615.47
– Horse Power (Hp/rpm): 371/2200 – Max. Torque (Nm/rpm): 1820/1100-1500 – Displacement (L): 9.726 – Type: Diesel, EURO II emission, 6-cylinder in-line with water cooling, turbo-charging and inter cooling, 4-stroke common rail electronic controlled diesel engine |
| Clutch | – Type: Φ430 Diaphragm spring clutch, hydraulic operating with air assistance |
| Transmission | – Type: HW19710
– Speeds: 12 forward and 2 reverse |
| Front Axle | – Model: HF9
– Type: Steering with double T-cross section beam – Rated Loading Capacity: 9,000kgs |
| Driving Axle | – Model: HC16
– Type: Pressed axle housing, central reduction with hub reduction, and with differential locks between wheels and axles<br> – Ratios: 4.42, 4.8 |
| Suspension | – Front: Hydraulic telescopic double-action shock absorbers and stabilizer
– Rear: Leaf semi-elliptic springs, bogie spring, and stabilizer |
| Steering System | – Type: Famous power steering, model 8118, hydraulic steering with power assistance |
| Brake System | – Service Brake: Dual circuit compressed air brake
– Parking Brake (Emergency Brake): Spring energy, compressed air operating – Auxiliary Brake: Engine exhaust brake |
| Electrics | – Voltage: Single wire, 24 V, negative grounded
– Alternator: 1540W – Start Motor: 7.5kW – Battery: 2*12V/165Ah |
| Tire | – Specifications: 12.00R20 |
| Fuel Tank | – Capacity: 400L Diesel Tank |
| Weights & Dimensions | – Dead Weight: 12,530 kg
– Gross Vehicle Weight: 33,000 kg – Gross Combination Weight: 80,000 kg – Overall Dimensions (LWH): 9,445 x 2,560 x 3,350 mm<br> – Wheelbase: 4,300+1,350 mm – Front/Rear Overhang: 1,500/725 mm – Wheel Track (Front/Rear): 2,022/1,850 mm – Min. Ground Clearance: 314 mm – Approach/Departure Angle: 16/70 degrees – Max. Speed: 92 km/h – Max. Gradability: ≥40% |
