BRIEF

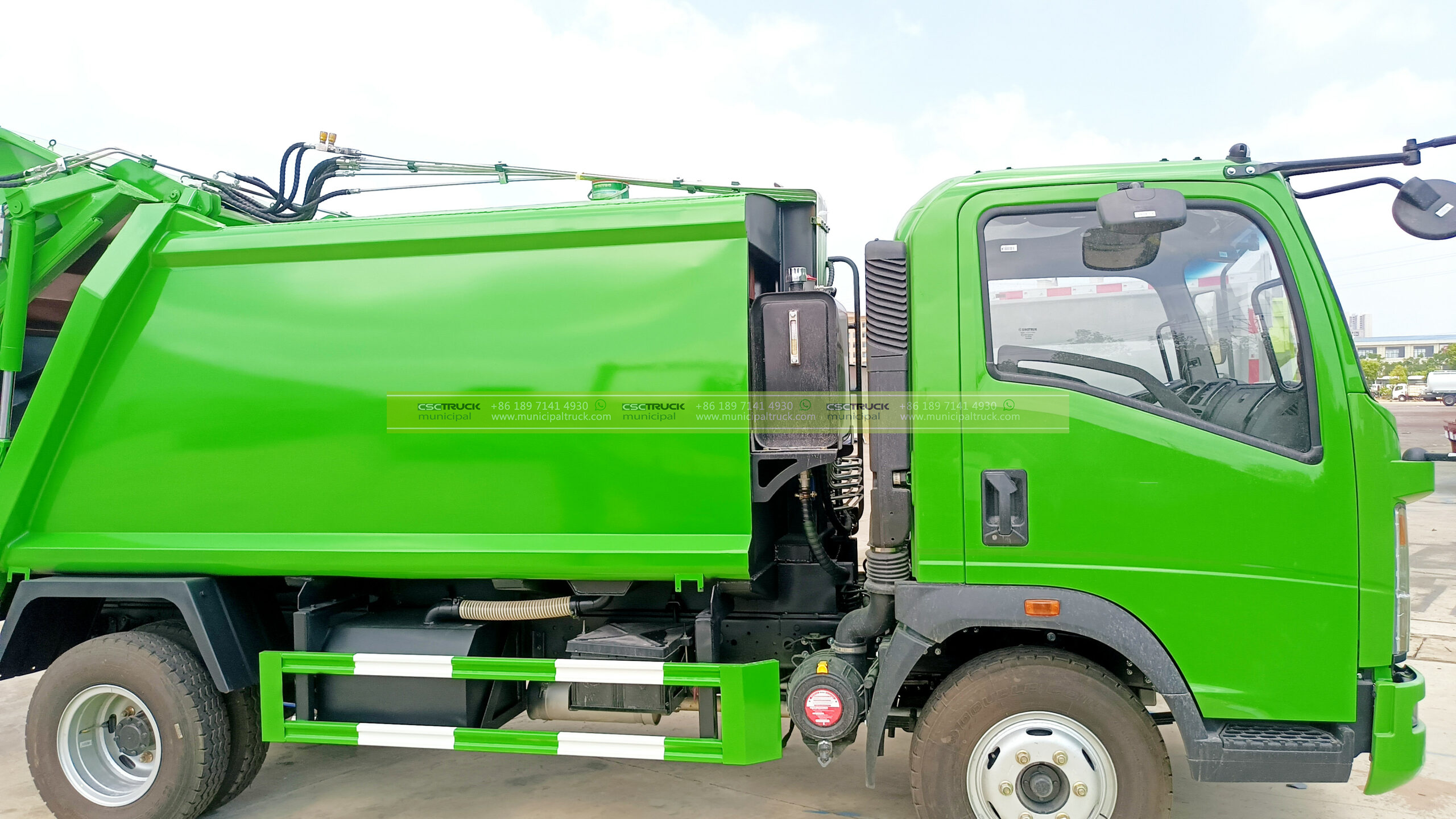

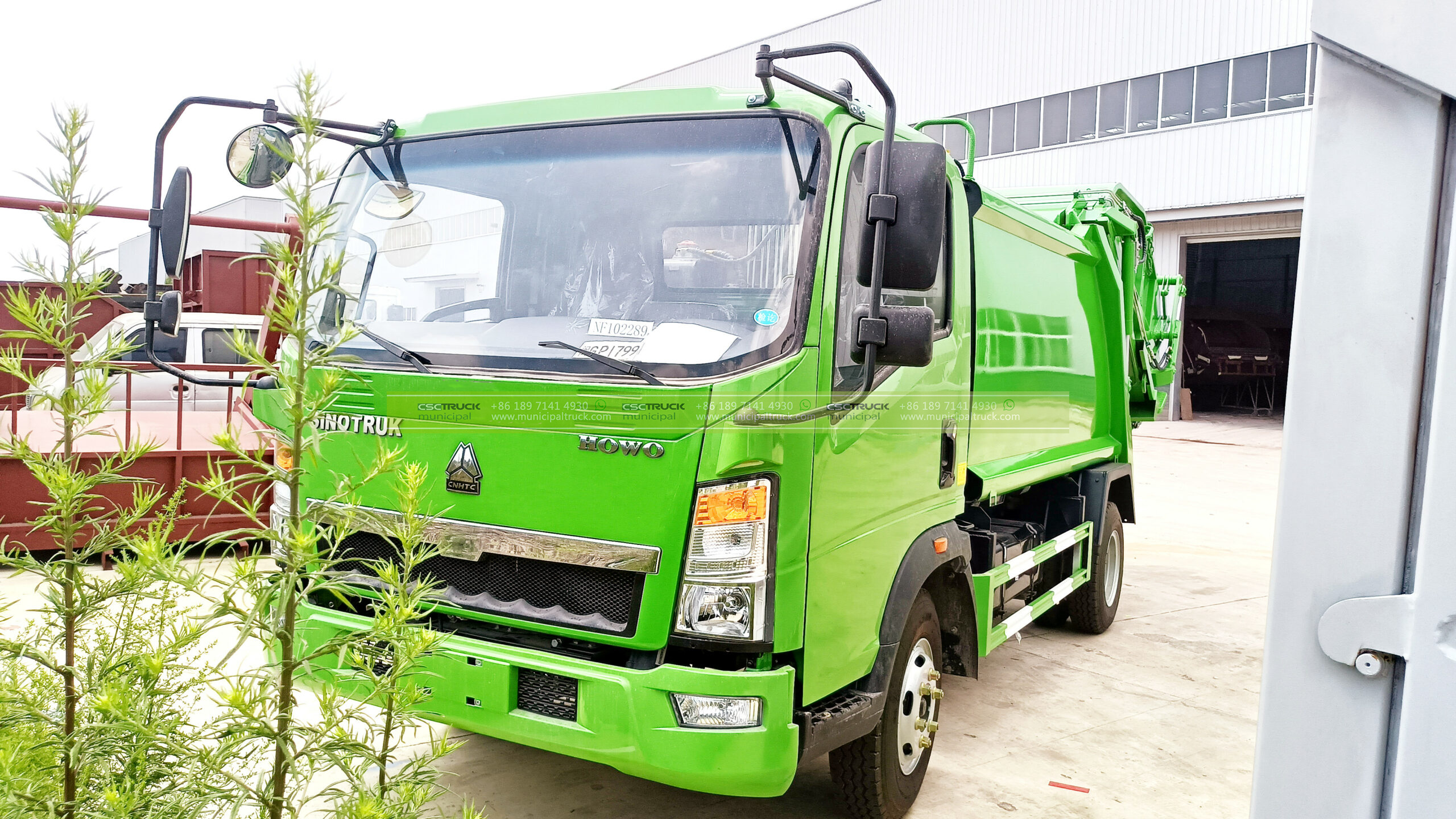

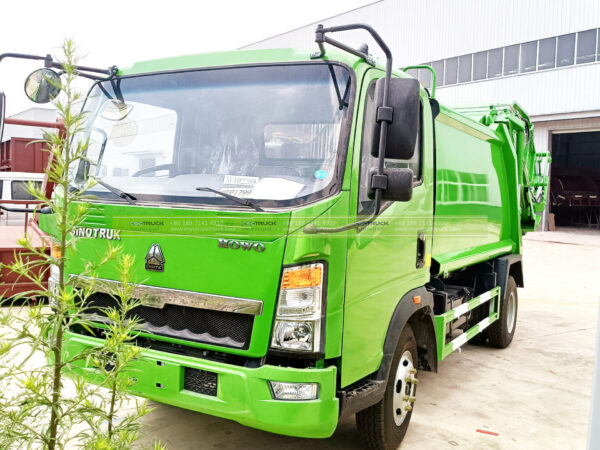

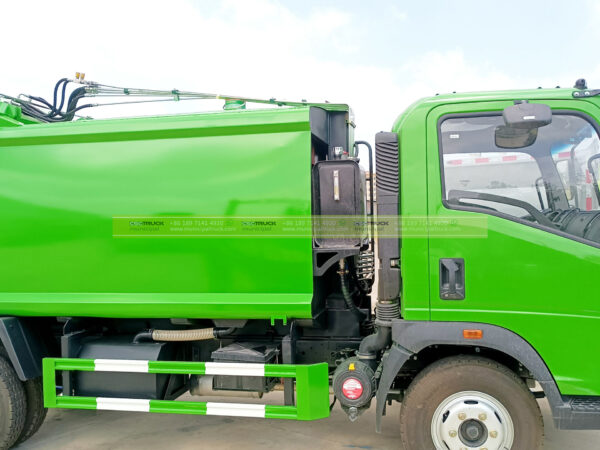

SINOTRUK 10CBM waste compactor truck is mounted on SINOTRUK HOWO chassis, designed to do the collection of all kinds of waste: garbage, solid waste, and recycling objects, and have them transported to bigger facilities for waste treatments.
Refuse compactors with rear loading perform the compression process with the successive movements of the slide-blade after the garbage in the garbage bin is emptied into the hopper, and compacted with an automatic control mechanism. The bin lifter is designed to be suitable for lifting bins specific to international standards offered to the use of the customer.
FEATURES

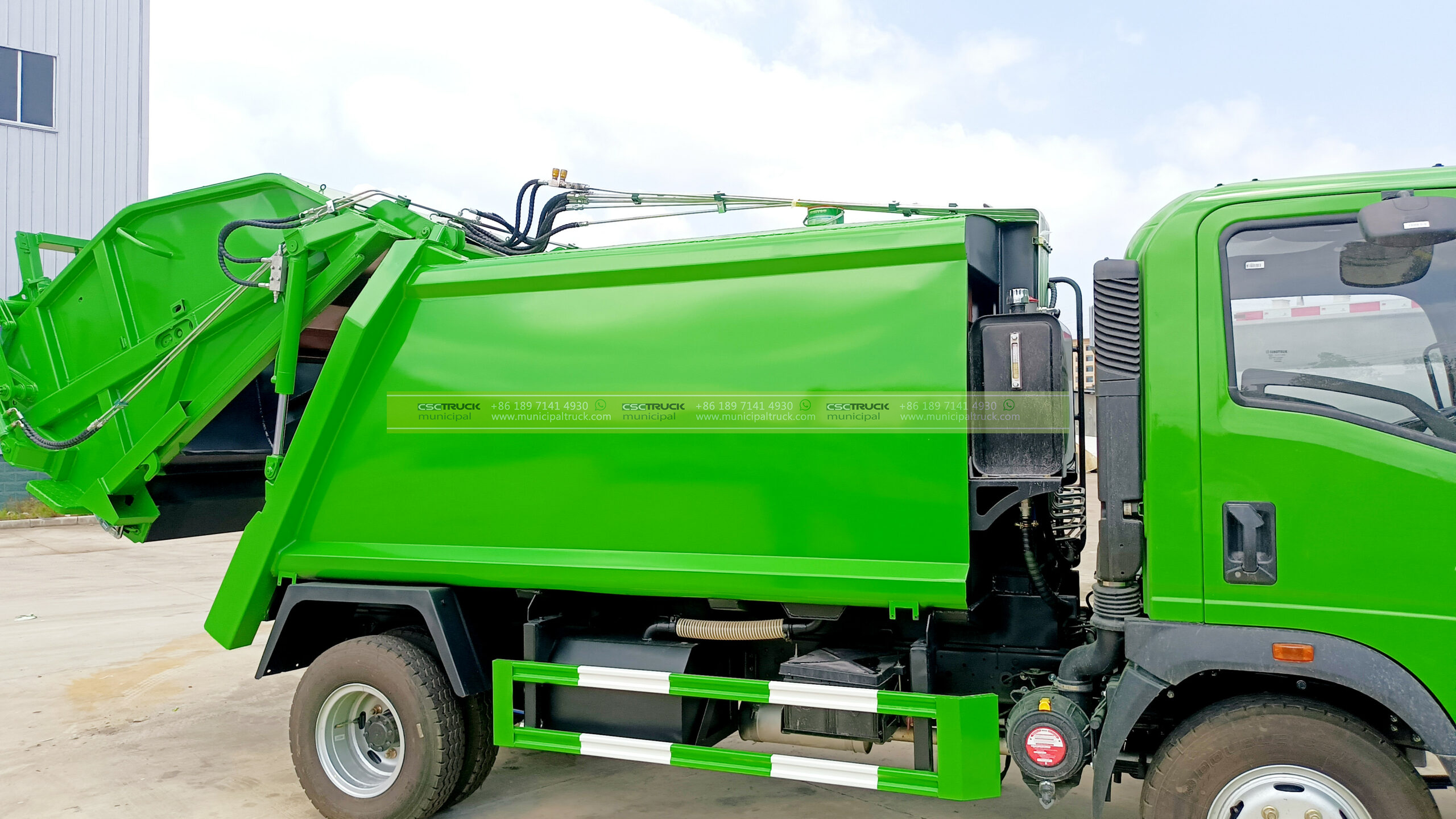

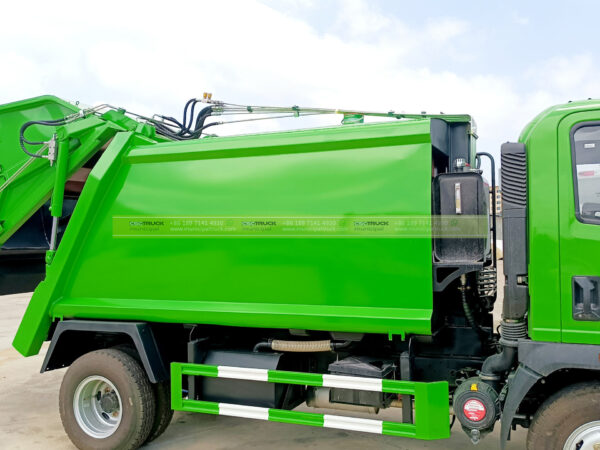

Body
Body sheet thickness:
- Floor: High tensile ST-52 / 6.0 mm
- Side Wall: High tensile ST-52 / 4.0 mm
- Roof: High tensile ST-52 / 4.0 mm
- Discharge Plate: High tensile ST-52 / 6.0 mm
Hopper Capacity
The garbage capacity of the loading hopper is around 2m3.
Locking
Hydraulic locking by means of reverse action of two hydraulic tailgate-lifting cylinders.

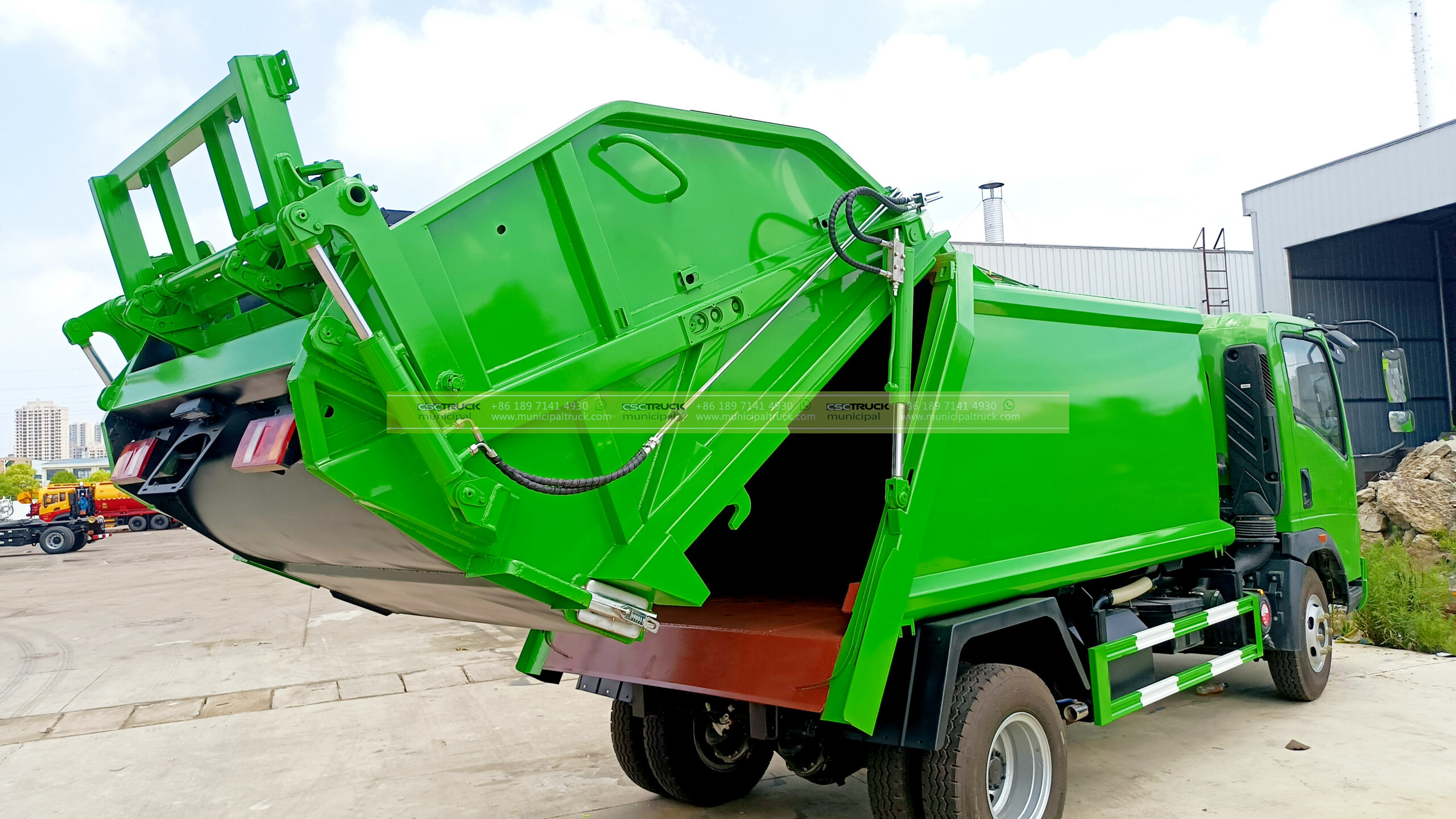

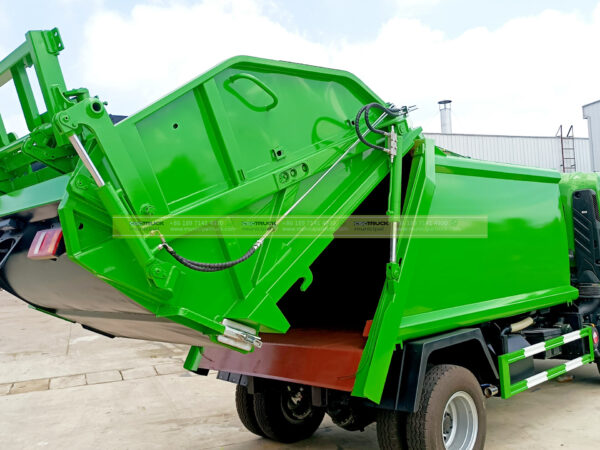

Tailgate/Hopper
- Tailgate floor, rear hopper extension inside the body, and side wall.
- The tailgate is connected to the body with top hinges and opened upwards by means of two units of double-acting hydraulic cylinders.
Compaction Plate
The inner surface of the compaction plate where garbage friction and compression occur is from the st-52 6mm steel plate.
Safety Props
The tailgate is provided with safety props for safety purposes during maintenance.
Compaction Ratio
The compaction ratio varies between 3:1~6:1 according to the characteristic and density of the garbage used in the area (above mentioned parameter is valid for household garbage.
Sealing
With a special design leakage-proof rubber seal between the tailgate and the body.
Safety Valve
Equipped with safety valve on tailgate hydraulic lines to prevent sudden failures.
SPECIFICATION
| Chassis | |
| Size | 8000×2450×3100(mm) |
| GVW/Curb Weight | 11,600/6,850kg |
| Wheelbase | 4700mm |
| Front/Rear Axle | 3.6T/8T |
| Tire | 10.00R20, 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | YUCHAI/YC4E160-33/160hp/Euro 3 |
| Transmission | |
| Model | DC6J65TC |
| Gears | 6F+1R |
| Operation | Manual |
| Cabin | |
| Driving | SINOTRUK HOWO 4X2, Right Hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Garbage Container | |
| Capacity | 10 CBM |
| Material | Weather-resistant steel |
| Design | Sealed leakage proof |
| Compaction Ratio | 1:3- 1:4 |
| Hopper Volume | 500L |
| Effective volume of the bucket | ≥0.8cbm |
| Loading Time | 8~10s |
| Loading Cycle Time | ≤40s |
| Unloading Time | ≤45s |
| Discharge Type | Rear discharging |
| Control System | Front control in the cab, rear button control, and manual control |
