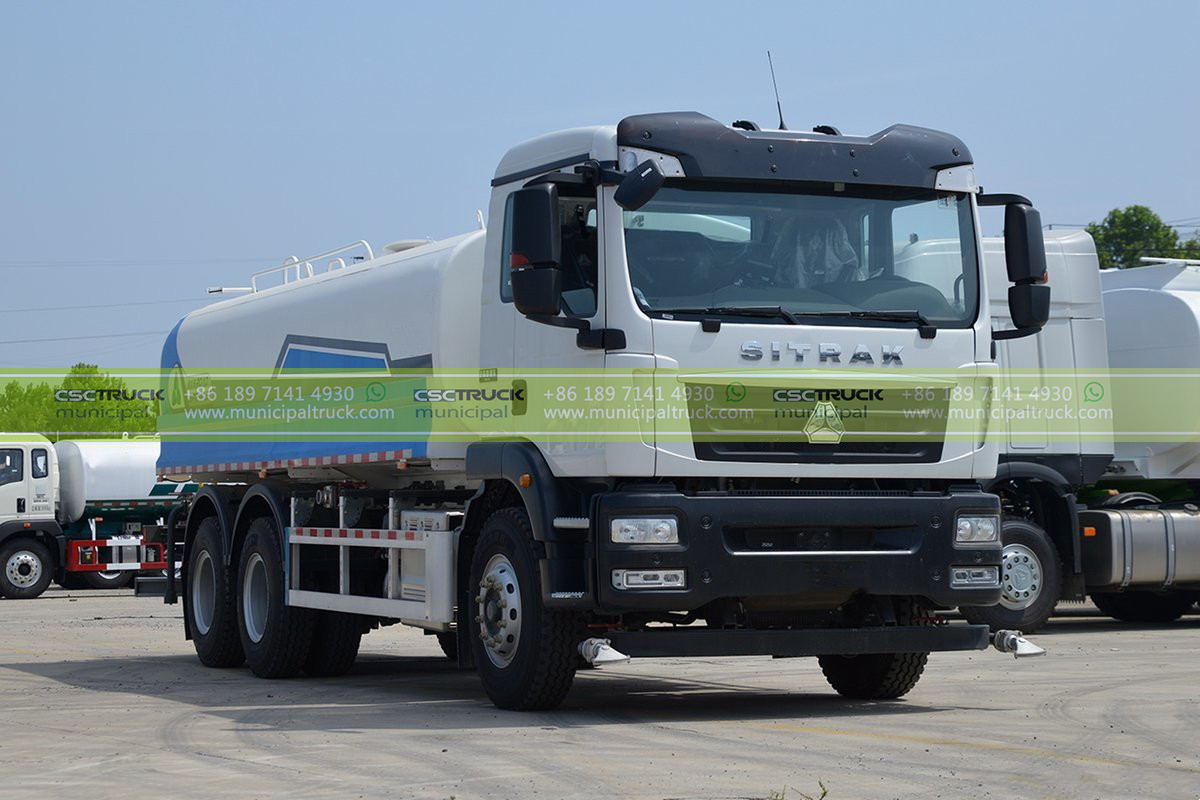

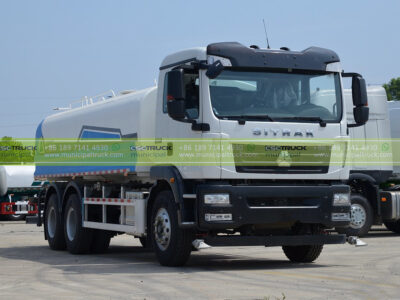

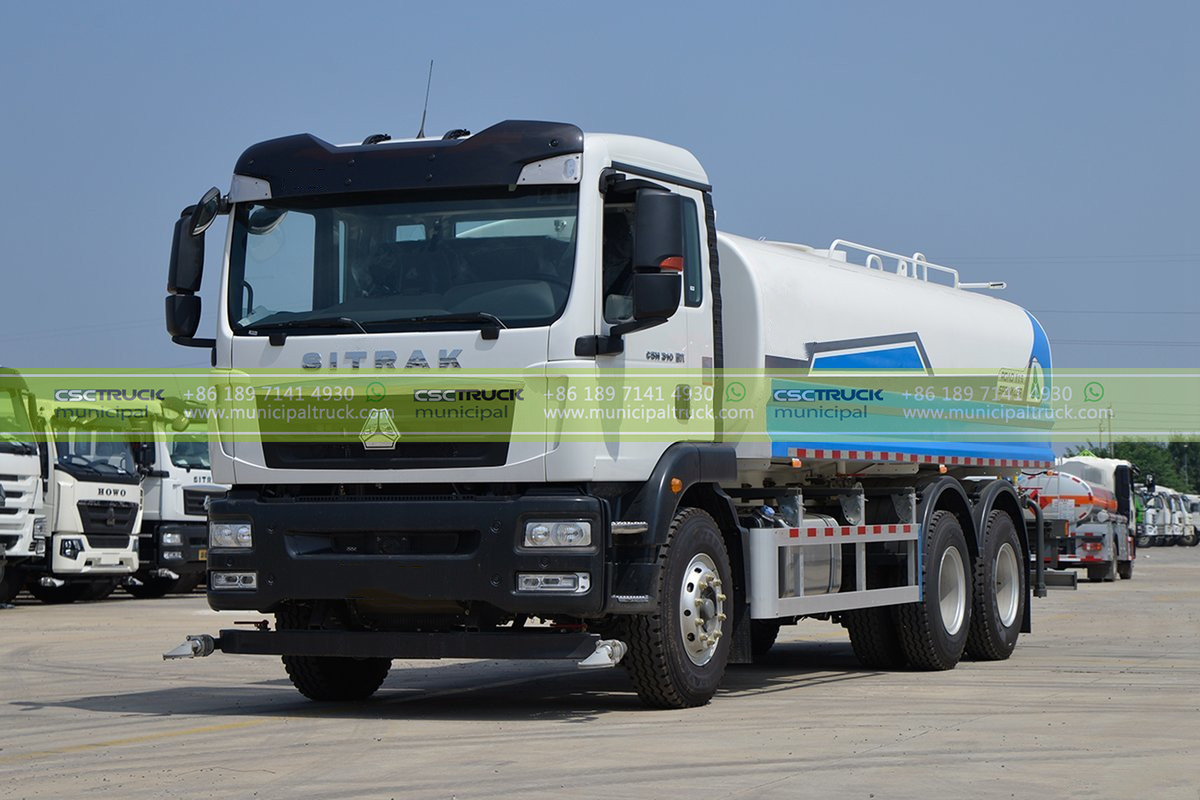

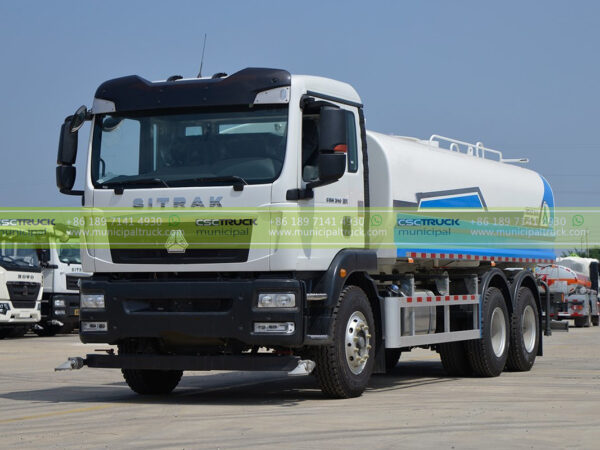

The SINOTRUK 13 ton water sprinkler truck by CSCTRUCK is a robust vehicle designed to handle large volumes of water and provide efficient and effective spraying for a variety of applications. The following description will be divided into four parts, highlighting the chassis, engine, body system, and equipment.
Chassis:
The SINOTRUK 13 ton water sprinkler truck features a sturdy and durable chassis from the reputable brand SINOTRUK. The truck measures 9,230mm in length, 2,500mm in width, and 3,050mm in height. The gross vehicle weight is 25,000kg, while the curb weight is 11,660kg. The wheelbase measures 4,300+1,350mm, and the truck has a 6×4 drive configuration. The front and rear axles have load capacities of 7T and 18T, respectively, and the truck has 12.00R20 10+1 tires.
Engine:
This sprinkler truck is equipped with a powerful diesel engine from SINOTRUK, the WD615.41 model. The engine has a maximum power output of 371hp and is compliant with Euro 2 emissions standards.
Transmission:
The truck comes with a SINOTRUK HW19710 manual transmission, which has 10 forward gears and 2 reverse gears.

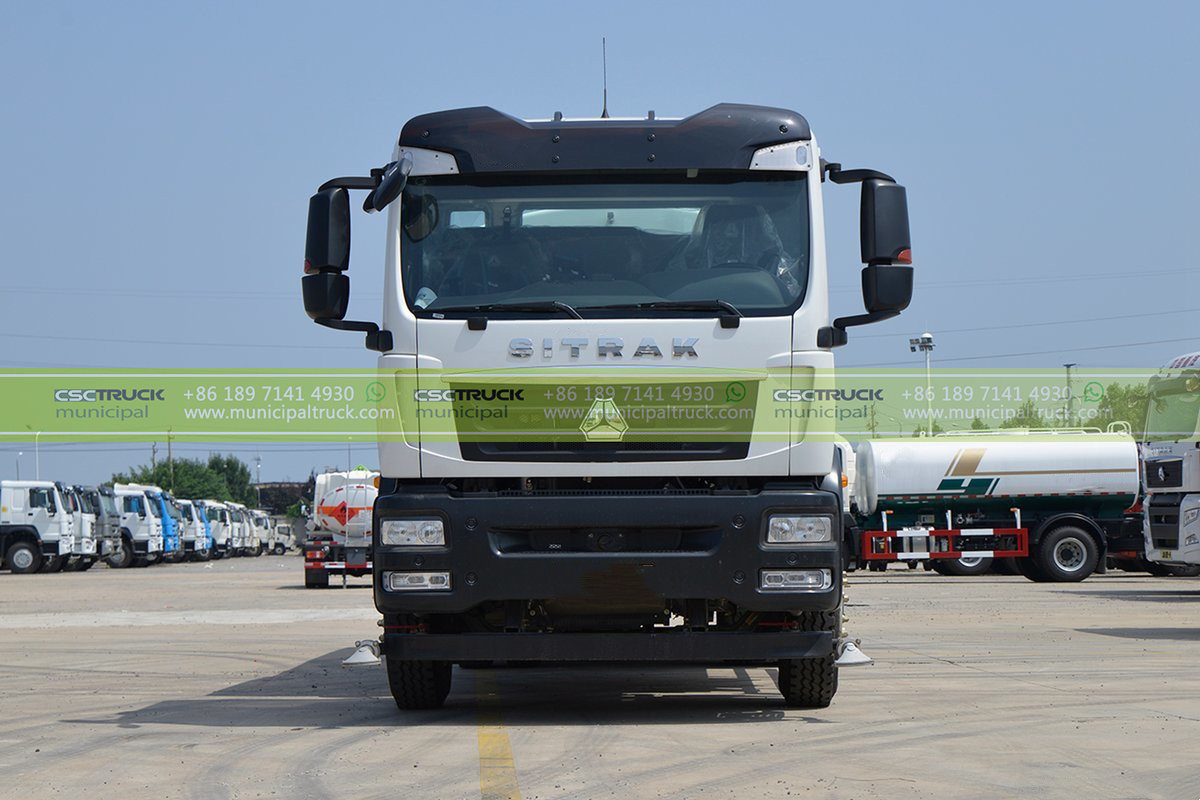

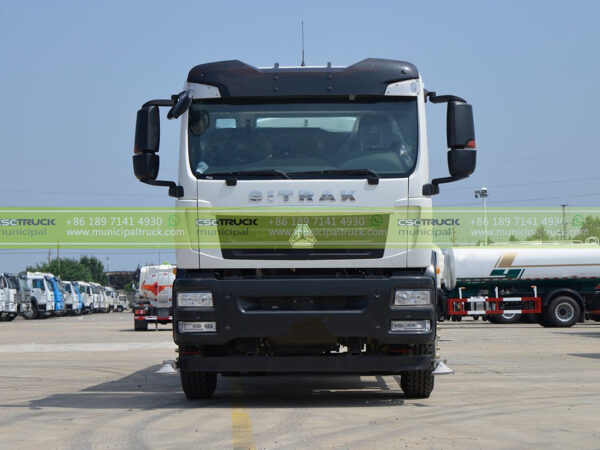

Cabin:
The cabin of the sprinkler truck is a spacious and comfortable place for the driver and two passengers. The cab is a night cab type, and it is available in both left-hand and right-hand drive configurations. The cabin is constructed of steel and has a single-row and flat design.

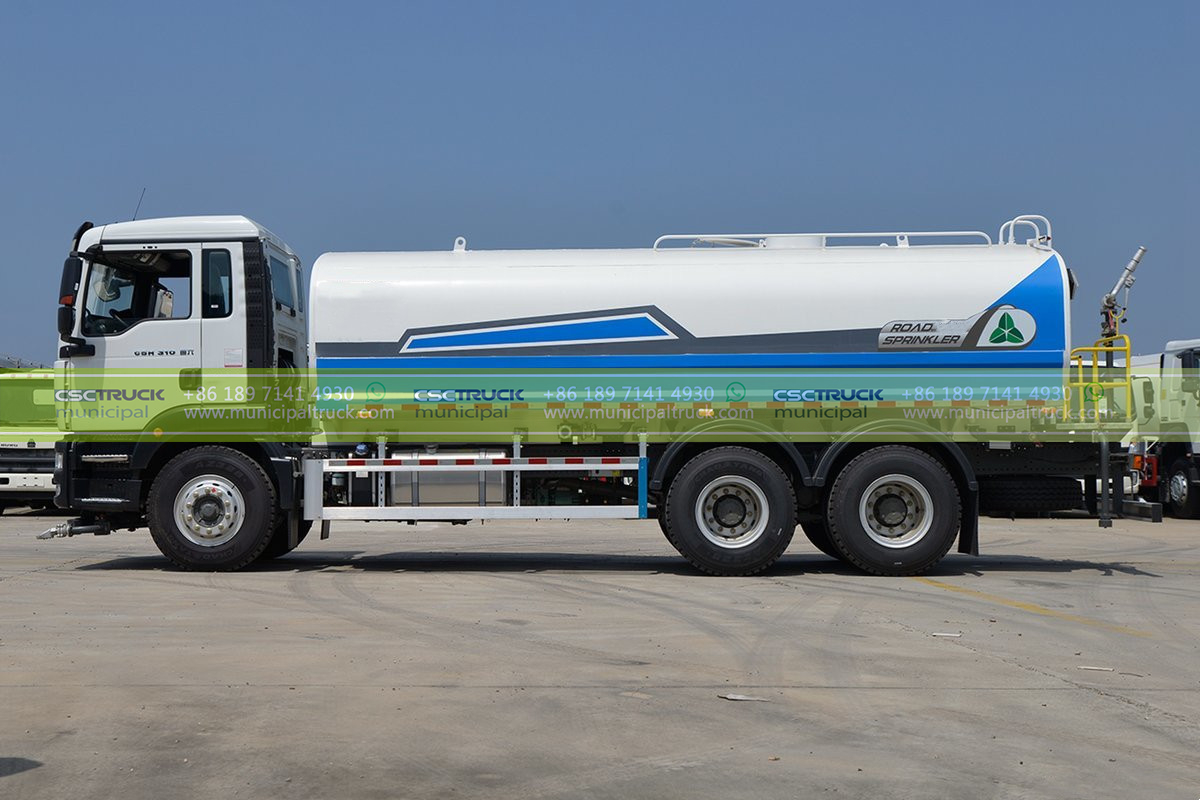

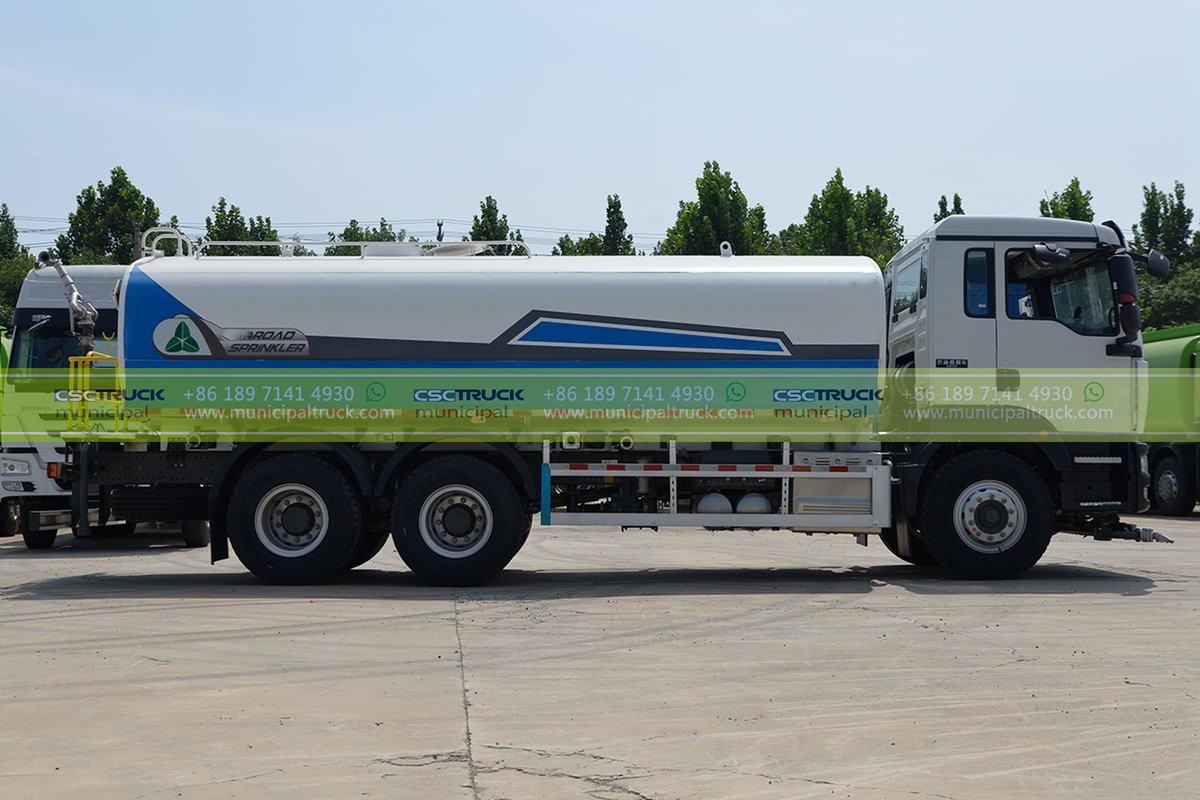

Body System:

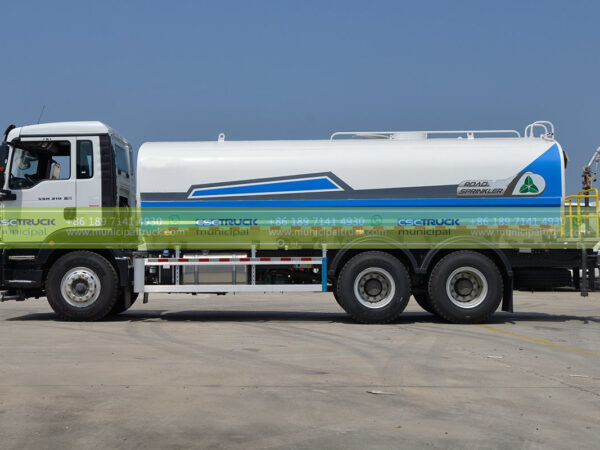

The body system of this SINOTRUK sprinkler truck features a stainless steel 304 tank with a capacity of 14,000L. The tank body is 6mm thick, ensuring durability and longevity. The truck’s spraying width is greater than or equal to 14m, while the canon range is greater than or equal to 35m. The truck’s suction height is more than 7m, and the full tank suction time is less than 15 minutes.
Equipment:
The truck is equipped with a stainless steel self-priming sprinkler pump capable of delivering a flow rate of 60m³/h and a lift height of 90m. The pump has a self-priming height of 7m. The truck’s equipment also includes front flushing, side spraying, a rear sprinkling nozzle, and a platform with a water cannon and gun. The water cannon can be rotated 360 degrees, and the water flow can be adjusted to heavy, medium, and light rain, drizzle, and mist. Additionally, the truck has a self-flow valve, a fire joint, and two water pipes.
| Chassis | SINOTRUK |
| Size | 9,230×2,500×3,050(mm) |
| GVW/Curb Weight | 25,000kg/11,660kg |
| Wheelbase | 4,300+1,350mm |
| Front/Rear Axle | 7/18T |
| Tire | 12.00R20 10+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | SINOTRUK/WD615.41/371hp/euro 2 |
| Transmission | |
| Make/Model | SINOTRUK/HW19710 |
| Gears | 10F+2R |
| Operation | Manual |
| Cabin | |
| Driving | SINOTRUK SITRAK 6×4 Night Cab, Left/Right-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body System | |
| Tanker Capacity | 14,000L |
| Shape | |
| Material | Stainless steel 304 |
| Thickness | Tank Body 6mm |
| Performance | |
| Spraying Width(m) | ≥14m |
| Canon Range(m) | ≥35m |
| Suction Height | >7m |
| Full Tank Suction Time | <15 minutes |
| Equipment | |
| Sprinkler Pump | Front flushing, side spraying, rear sprinkling nozzle, and platform with water cannon and gun.
The water cannon can be rotated 360 degrees. The water flow can be adjusted to heavy, medium, light rain, drizzle, and mist. |
| Type | Stainless steel self-priming sprinkler pump |
| Flow Rate | 60m³/h |
| Lift Height | 90m |
| Self-priming Height | 7m |
| Other Parts | |
| Include | Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs |
