General

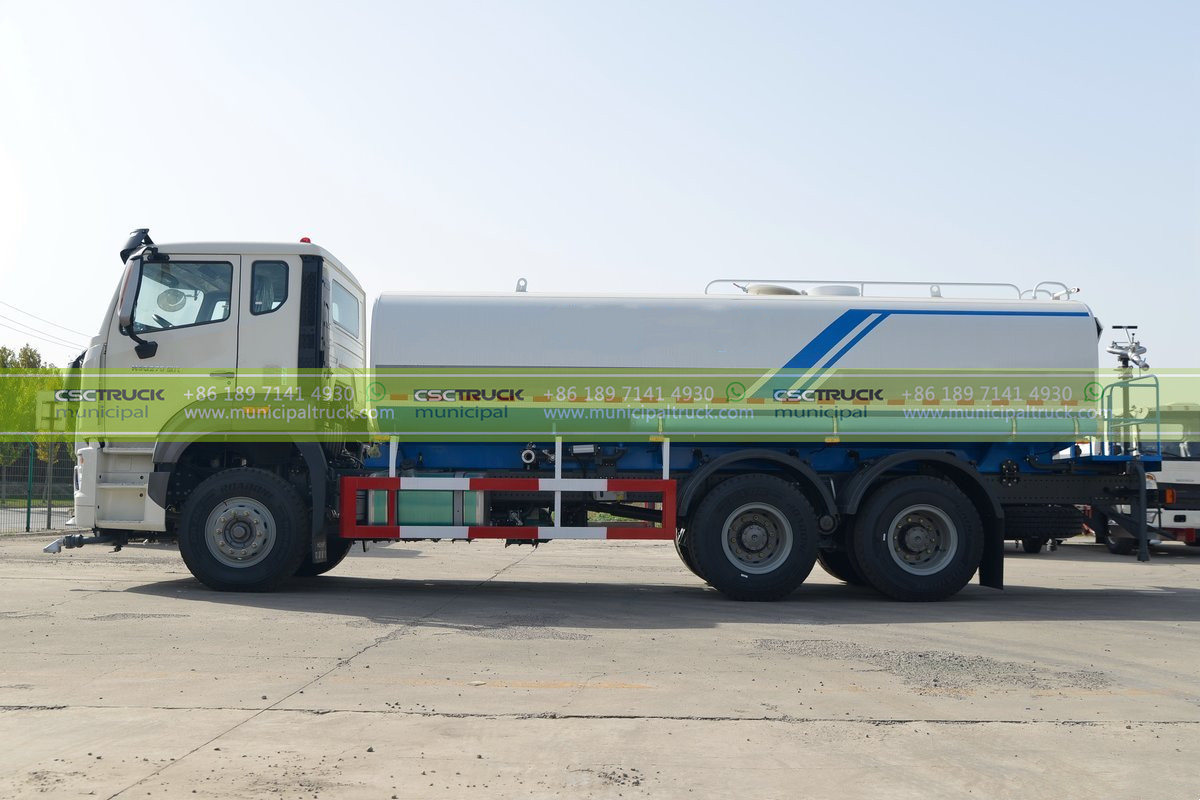

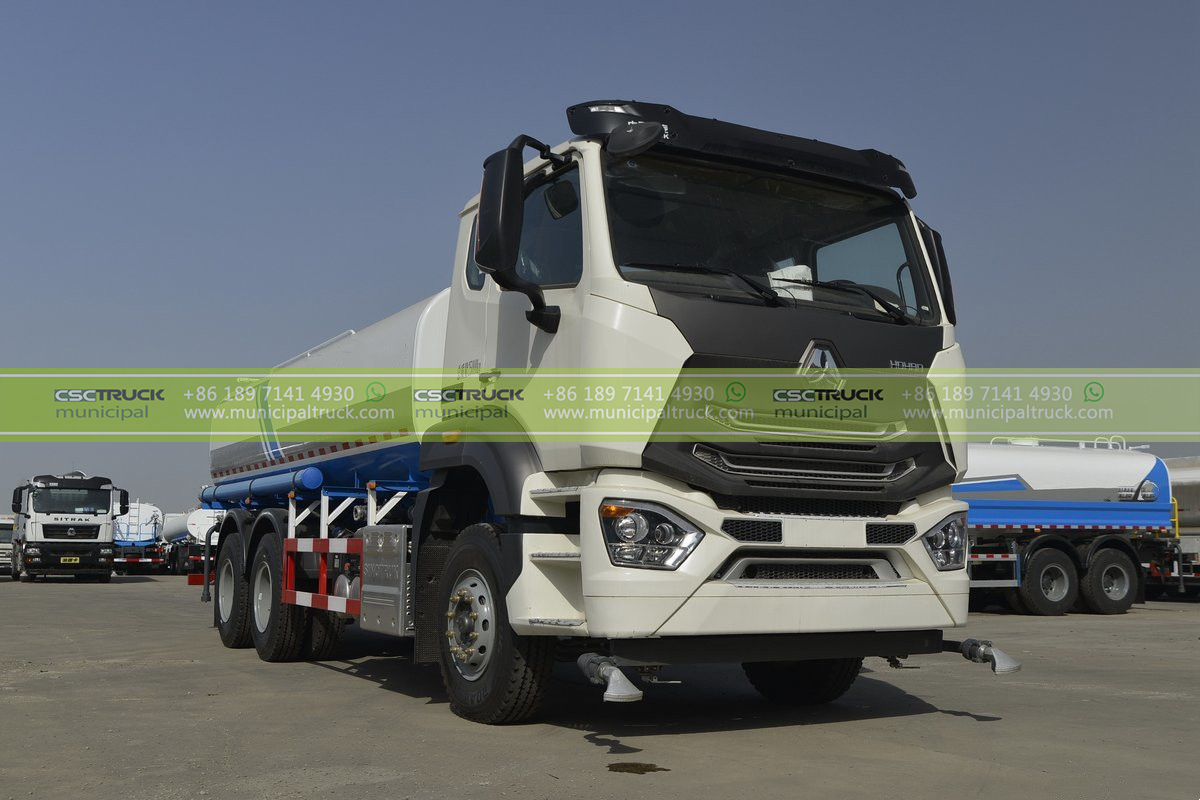

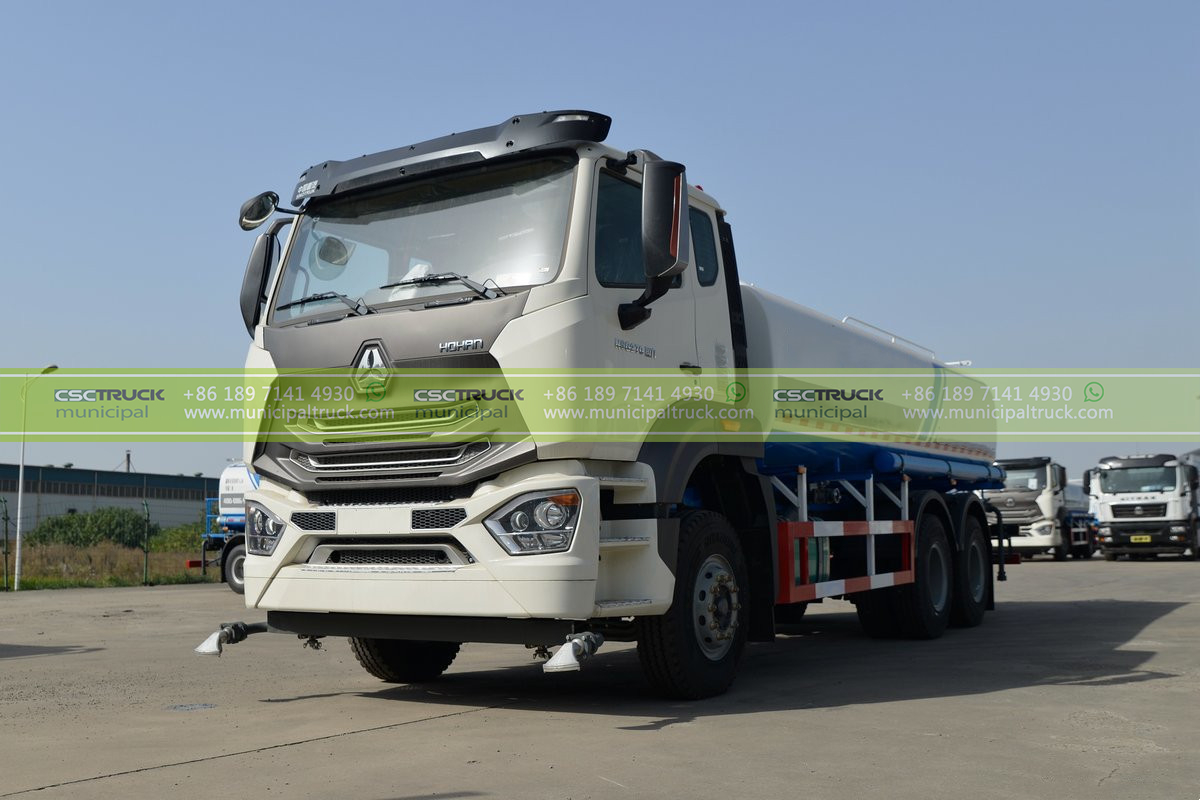

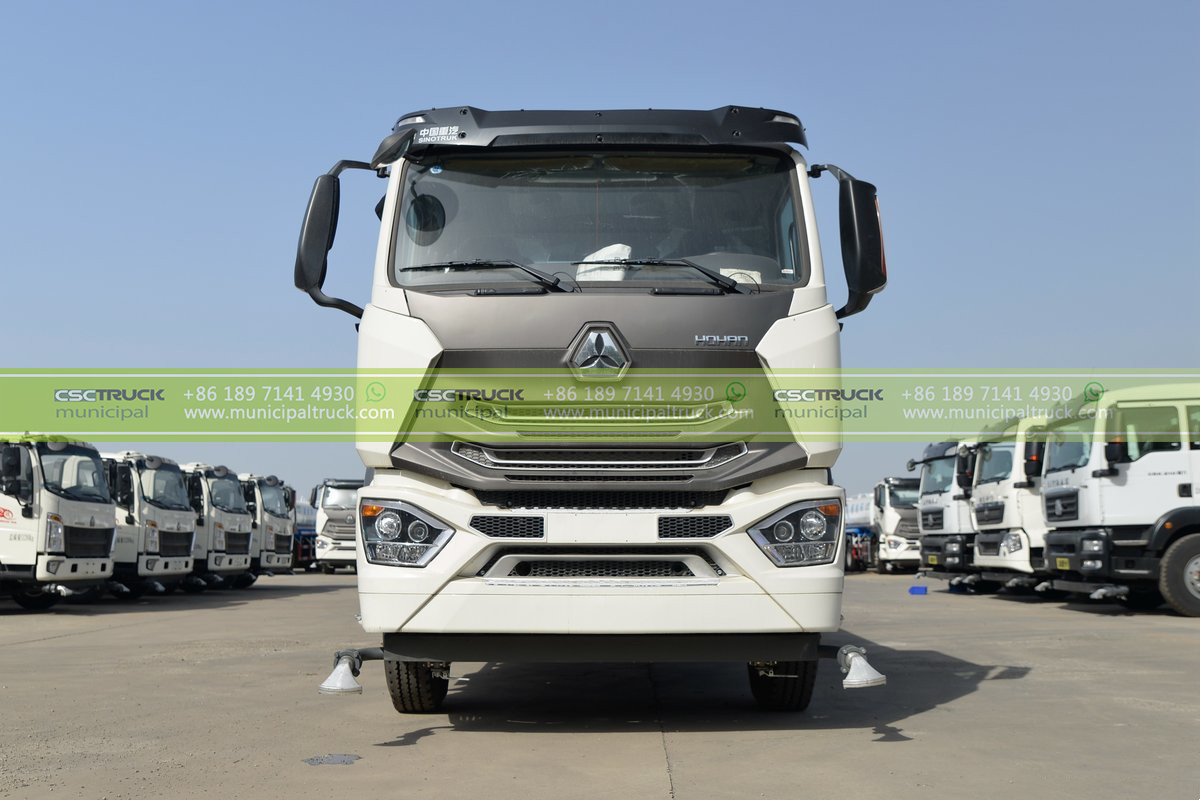

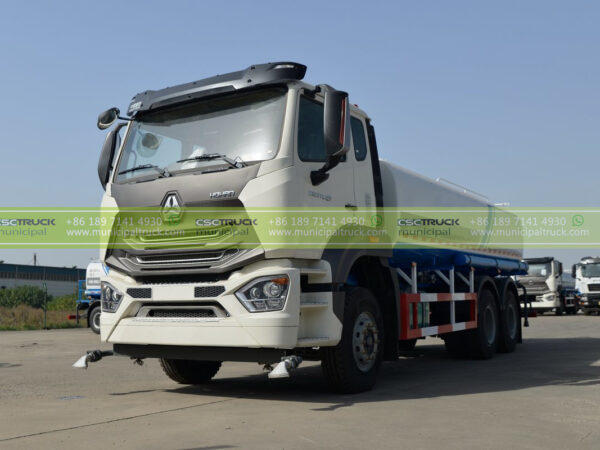

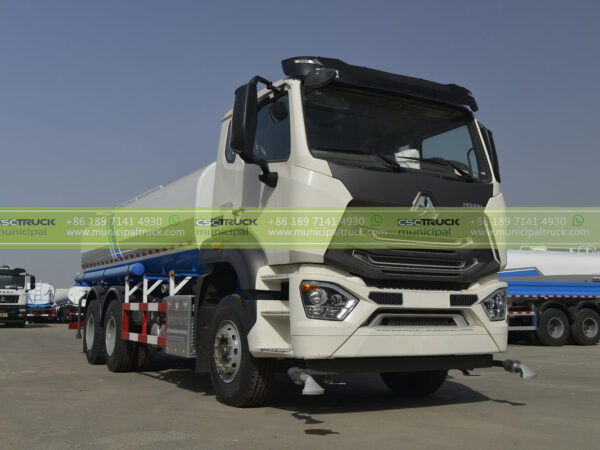

The SINOTRUK 14 ton water sprinkler truck by CSCTRUCK is a reliable and efficient vehicle designed for use in a variety of industries, including construction, mining, and agriculture. The truck is built on a durable SINOTRUK chassis and has an overall dimension of 10,180 x 2,500 x 3,030 mm.
It has a gross vehicle weight (GVW) of 25,000 kg and a curb weight of 13,500 kg, with a wheelbase of 4,325+1,350 mm.

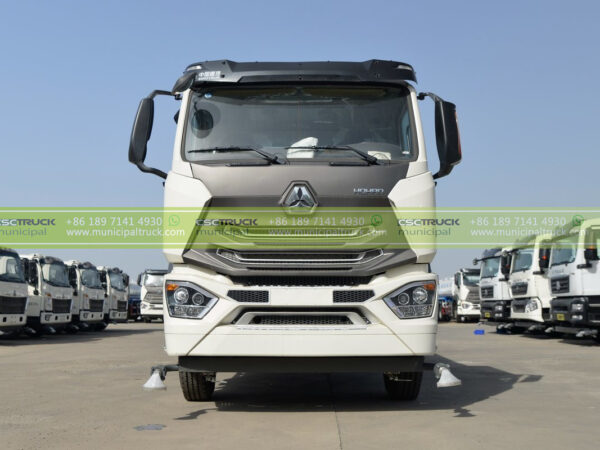

The truck has a 6×4 driving system, with a left-hand drive, and can accommodate up to three passengers in its steel construction, single-row, flat cabin. The vehicle is powered by a diesel engine, with a make/model of SINOTRUK/WD615.69/336hp/Euro 2, and has a transmission system of 10F+2R gears with manual operation. The truck is equipped with 12.00R20 10+1 tires, providing excellent traction and stability on rough terrain.
Body System

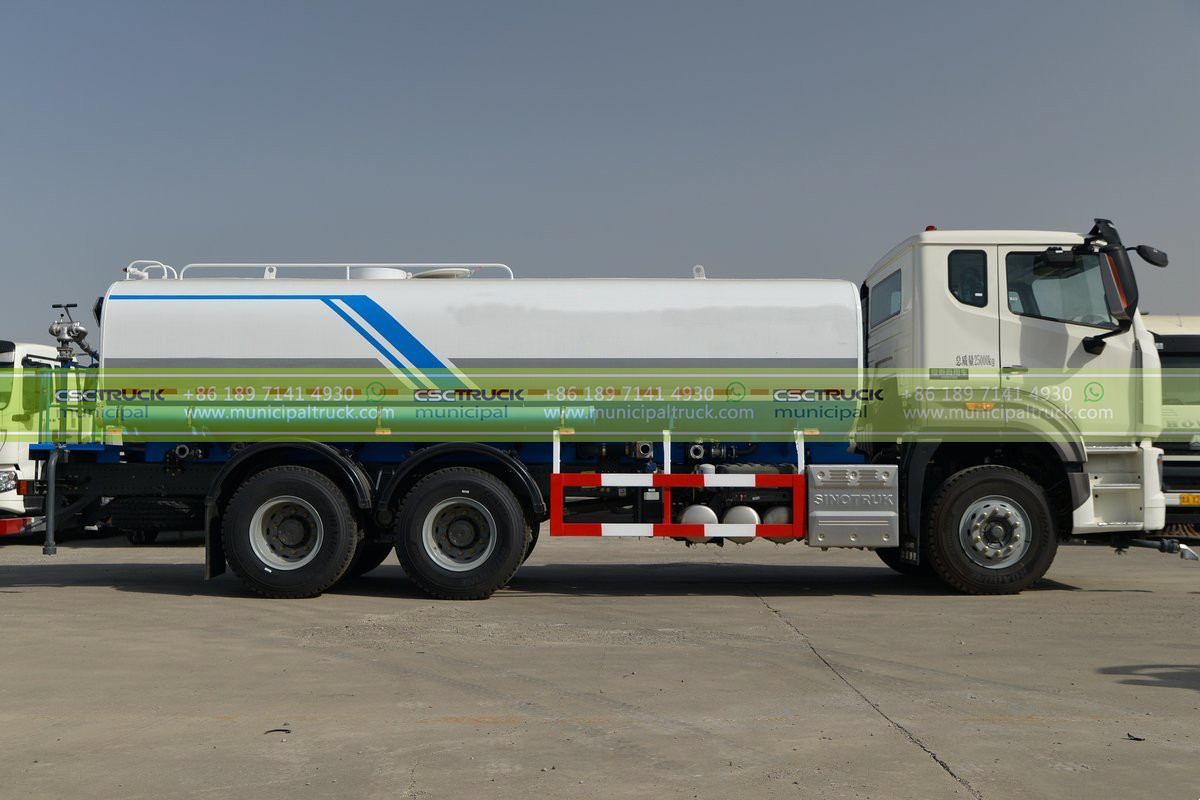

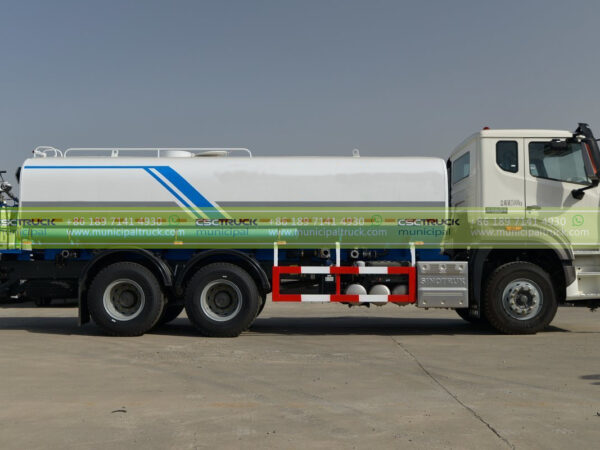

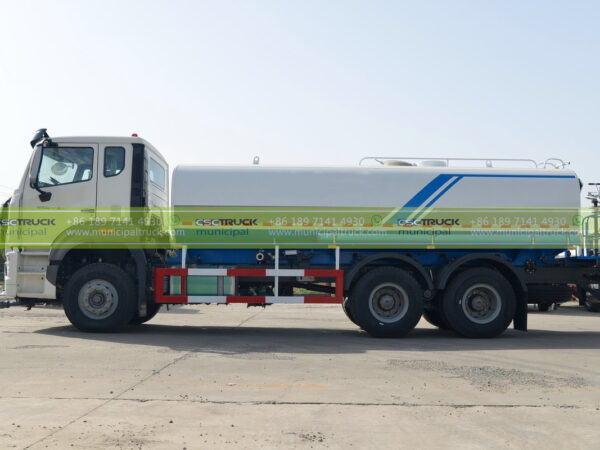

The SINOTRUK 14 ton water sprinkler truck’s tanker has a capacity of 14,000 L and is made of stainless steel 304 with a tank body thickness of 6 mm, ensuring its durability and resistance to rust and corrosion. The truck’s performance is impressive, with a spraying width of at least 14 m, a canon range of at least 35 m, a suction height of over 7 m, and a full tank suction time of fewer than 15 minutes.
The vehicle is equipped with a self-priming stainless steel sprinkler pump capable of delivering a flow rate of 60 m³/h and a lift height of 90 m, with a self-priming height of 7 m.

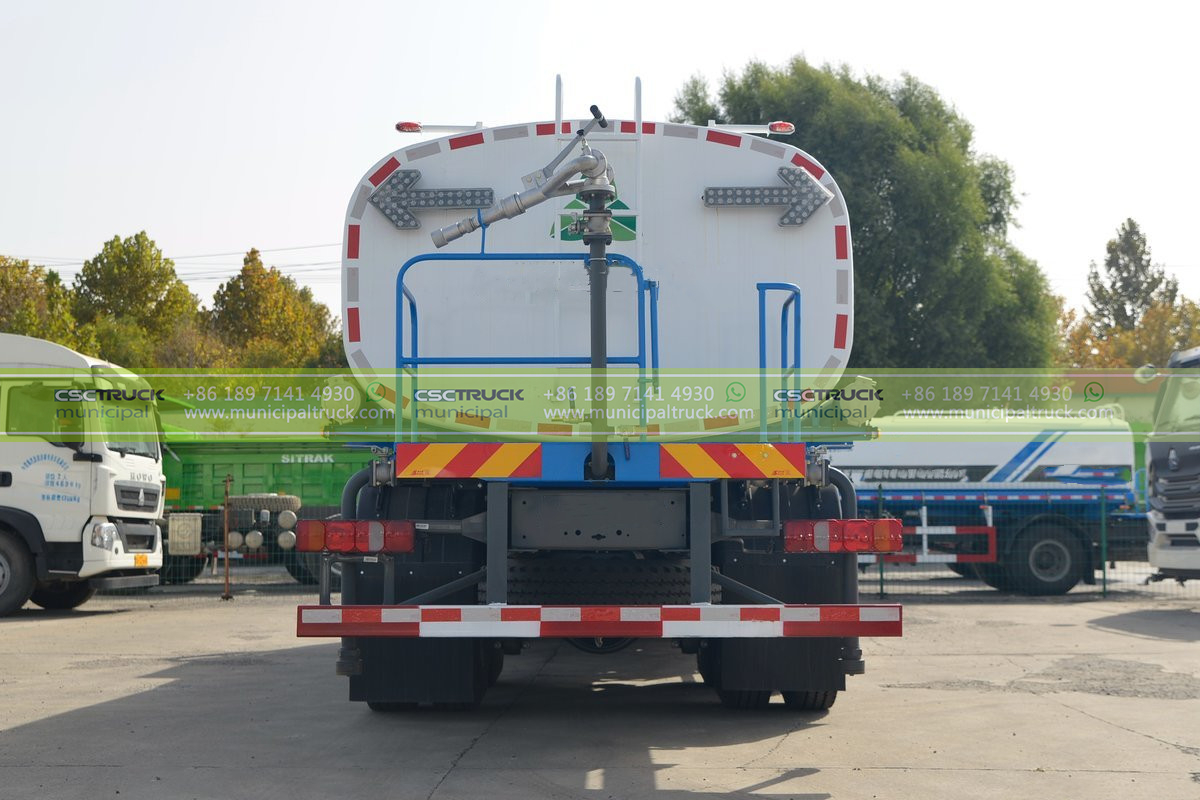

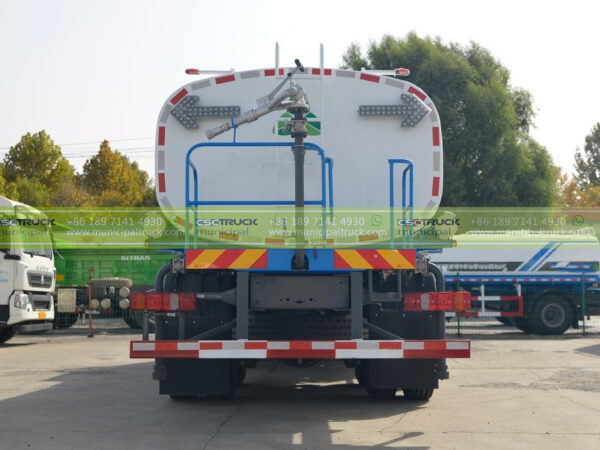

The truck’s nozzle system includes front flushing, side spraying, rear sprinkling, and a platform with a water cannon and gun. The water cannon can rotate 360 degrees, and the water flow can be adjusted to heavy, medium, and light rain, drizzle, and mist.
Other Parts
The SINOTRUK 14 ton water sprinkler truck is also equipped with essential components such as a self-flow valve, fire joint, and two water pipes. These parts ensure the vehicle’s optimal performance, reliability, and safety during use.
In conclusion, the SINOTRUK 14-ton water sprinkler truck by CSCTRUCK is a versatile and robust vehicle that can handle various water sprinkling needs, making it an ideal choice for the construction, mining, and agriculture industries. Its reliable and efficient body system, powerful sprinkler pump, and essential parts make it an excellent investment for any business in need of a dependable water sprinkler truck.
| Chassis | SINOTRUCK |
| Size | 10,180×2,500×3,030(mm) |
| GVW/Curb Weight | 25,000kg/13,500kg |
| Wheelbase | 4,325+1,350mm |
| Front/Rear Axle | 7/18Tx2 |
| Tire | 12.00R20 10+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | SINOTRUK/WD615.69/336hp/euro 2 |
| Transmission | |
| Make/Model | SINOTRUK/HW19710 |
| Gears | 10F+2R |
| Operation | Manual |
| Cabin | |
| Driving | SINOTRUK HOMAN 6×4 Night Cab, Left/Right-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body System | |
| Tanker Capacity | 14,000L |
| Shape | |
| Material | Stainless steel 304 |
| Thickness | Tank Body 6mm |
| Performance | |
| Spraying Width(m) | ≥14m |
| Canon Range(m) | ≥35m |
| Suction Height | >7m |
| Full Tank Suction Time | <15 minutes |
| Equipment | |
| Sprinkler Pump | Front flushing, side spraying, rear sprinkling nozzle, and platform with water cannon and gun.
The water cannon can be rotated 360 degrees. The water flow can be adjusted to heavy, medium, light rain, drizzle, and mist. |
| Type | Stainless steel self-priming sprinkler pump |
| Flow Rate | 60m³/h |
| Lift Height | 90m |
| Self-priming Height | 7m |
| Other Parts | |
| Include | Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs |
