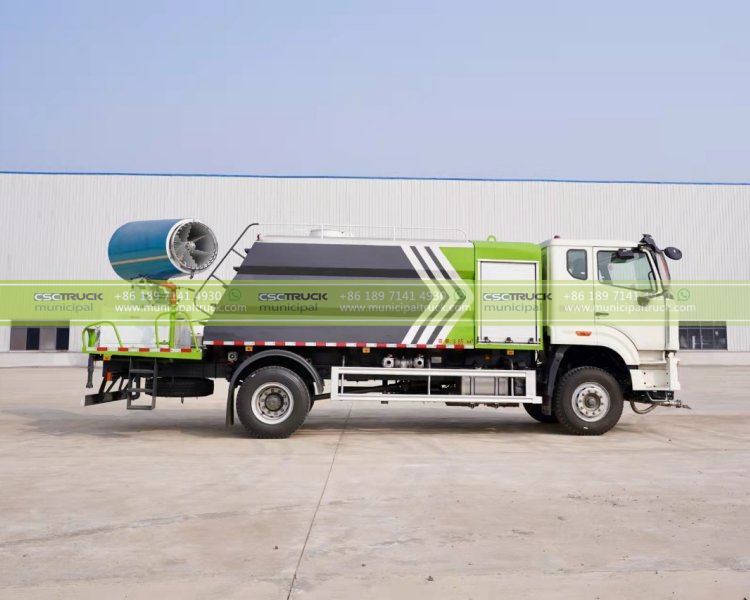

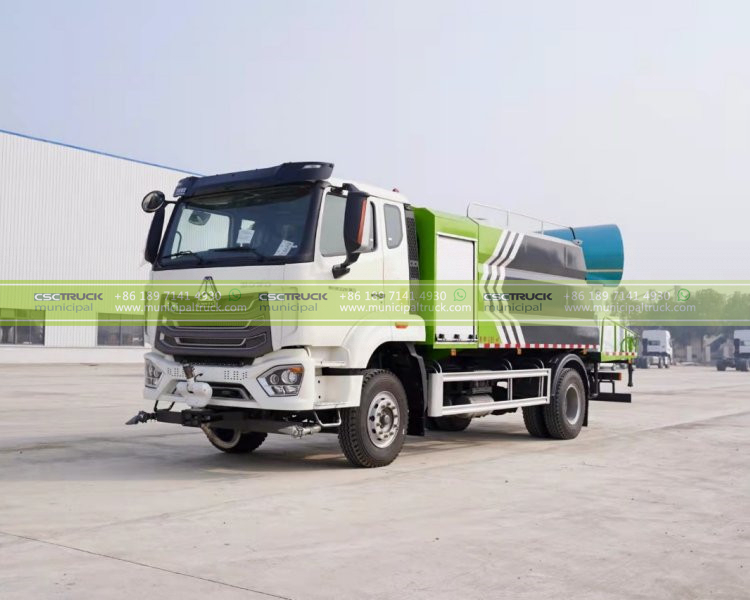

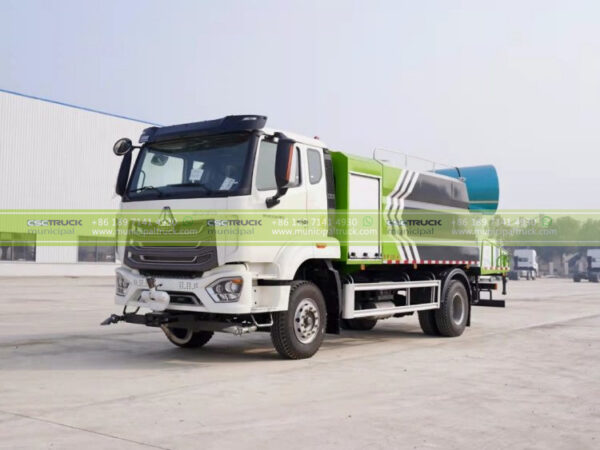

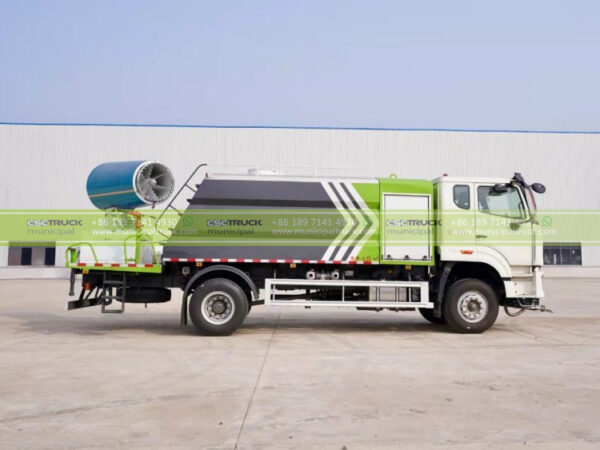

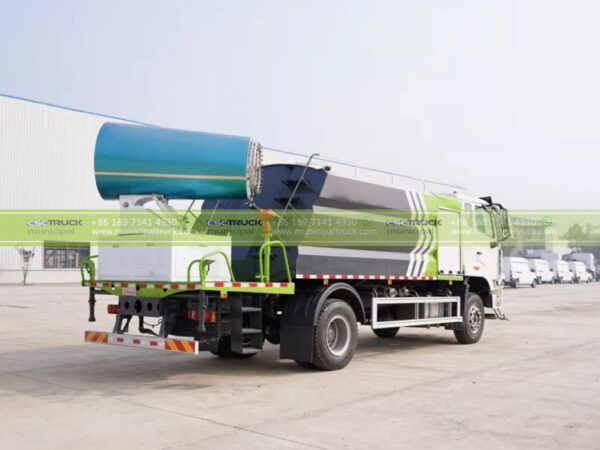

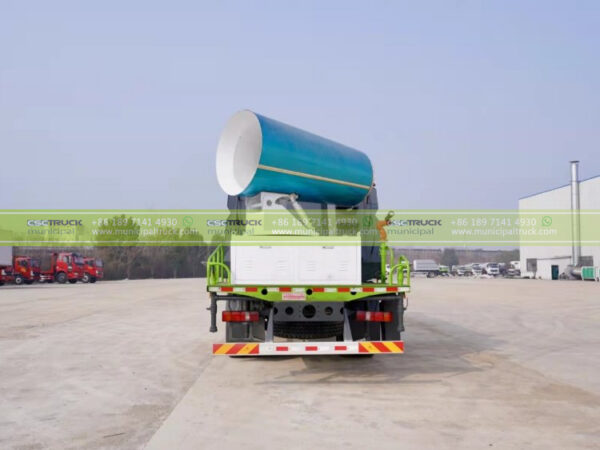

SINOTRUK 16,000L Water Mist Tank Truck

Introducing the powerful and versatile SINOTRUK 16,000L water mist tank truck, brought to you by CSCTRUCK. This exceptional vehicle is designed to deliver superior performance and efficiency, making it an ideal choice for a wide range of applications. Below are the key features of this impressive vehicle, divided into 4 parts.

Chassis

The SINOTRUK 16,000L water mist tank truck is built on a sturdy and durable chassis, measuring 9,370×2,550×3,350mm in size. It has a gross vehicle weight (GVW) of 18,000kg and a curb weight of 8,270kg, making it capable of carrying heavy loads with ease. The vehicle has a wheelbase of 4,700mm and is equipped with 6.5/11.5T front/rear axles and 11.00R20 6+1 tires, providing excellent traction and stability on any terrain.

Engine and Transmission

Powered by a diesel engine, the SINOTRUK 16,000L water mist tank truck boasts a SINOTRUK/WD615.69 engine that delivers an impressive 336hp, ensuring high performance and reliability. The engine meets Euro 2 emission standards, making it an environmentally friendly option. The vehicle is also equipped with a SINOTRUK/HW19710 transmission with 10 forward gears and 2 reverse gears, providing smooth and effortless gear changes. The manual operation of the transmission makes it easy to use, even for those new to driving large vehicles.

Cabin

The SINOTRUK 16,000L water mist tank truck is designed with a spacious and comfortable cabin, providing a pleasant and ergonomic working environment for the driver and passengers. The cabin is a SINOTRUK HOWO 4×2 Day Cab with left-hand drive, featuring a steel construction, single row, and flat design. The cabin has a seating capacity of 3 and comes with all the necessary amenities to ensure a comfortable and safe driving experience.

Watering System

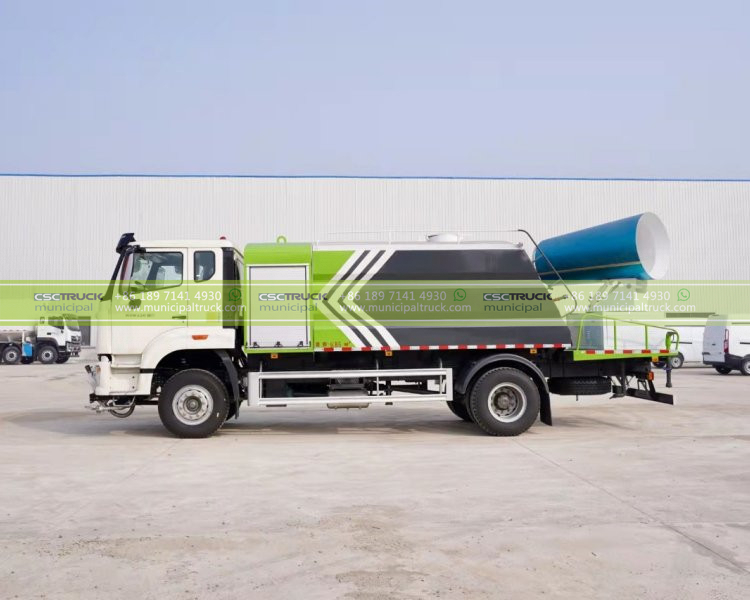

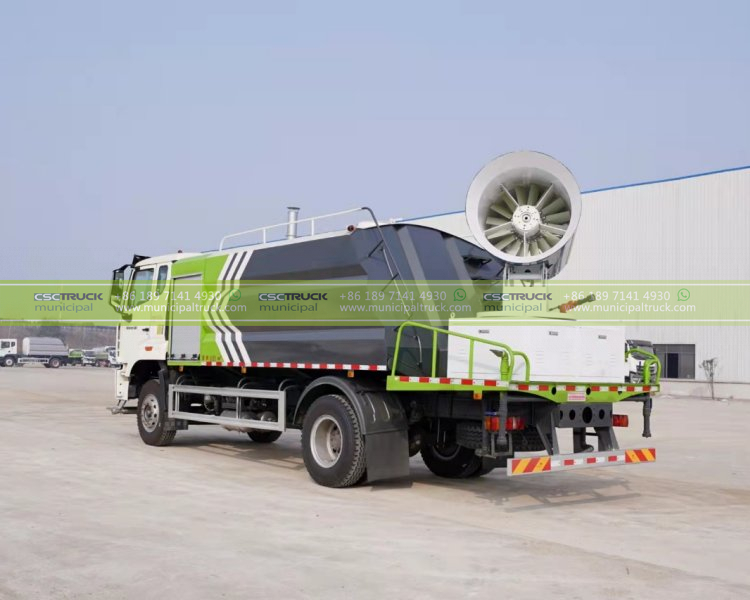

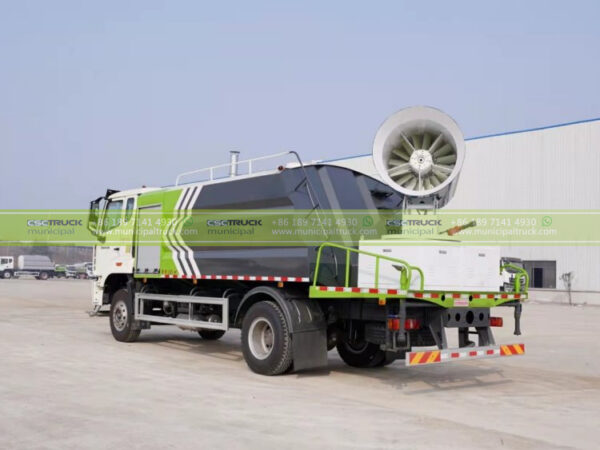

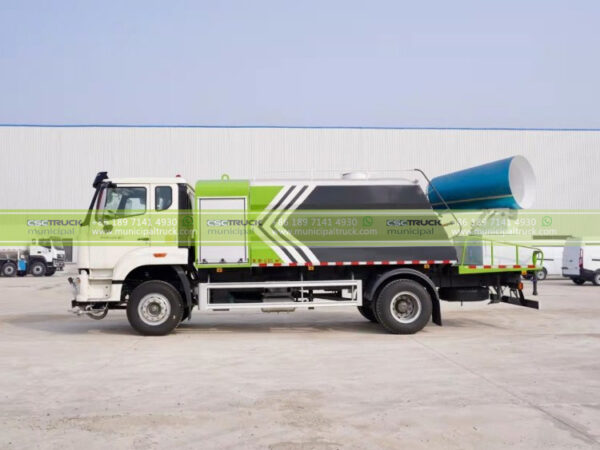

The SINOTRUK 16,000L water mist tank truck is equipped with a powerful and efficient watering system, designed to deliver excellent performance and precision. The vehicle has a tanker capacity of 16,000L, made from carbon steel with a thickness of 6mm, providing durability and longevity. The watering system features a front spraying pipe with a range of 14-18m, a rear spraying system with a range of 5-9m, and a spray range of 0-80m. The vehicle also comes with an advanced fan machine with a power of 37 kW and a fan air wind capacity of 127,500 m3/h. The plunger pump type is a single centrifugal pump with a multistage centrifugal pump, delivering a flow rate of 160-200L/m. With 80 spraying nozzles and manual/electric/wireless remote control, this watering system is versatile and easy to use.

In conclusion, the SINOTRUK 16,000L water mist tank truck is a high-quality and reliable vehicle that offers exceptional performance and efficiency. Its powerful engine, sturdy chassis, comfortable cabin, and advanced watering system make it an ideal choice for a wide range of applications, from construction sites to municipal road cleaning trucks. Trust CSCTRUCK to deliver this excellent product to meet your business needs.
