Summary:

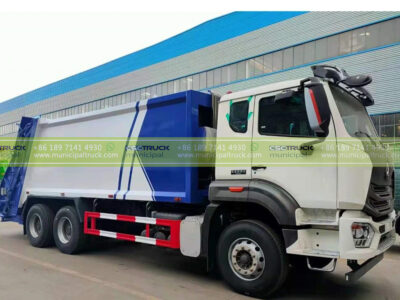

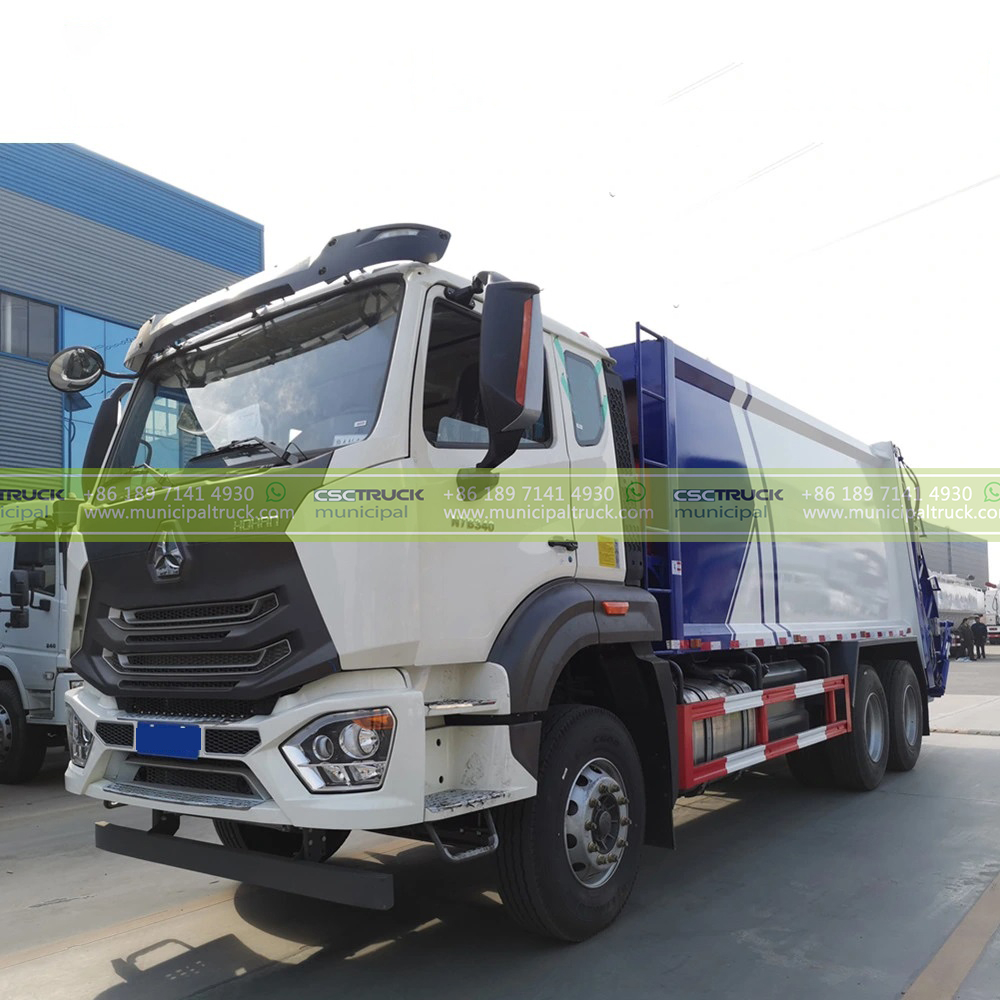

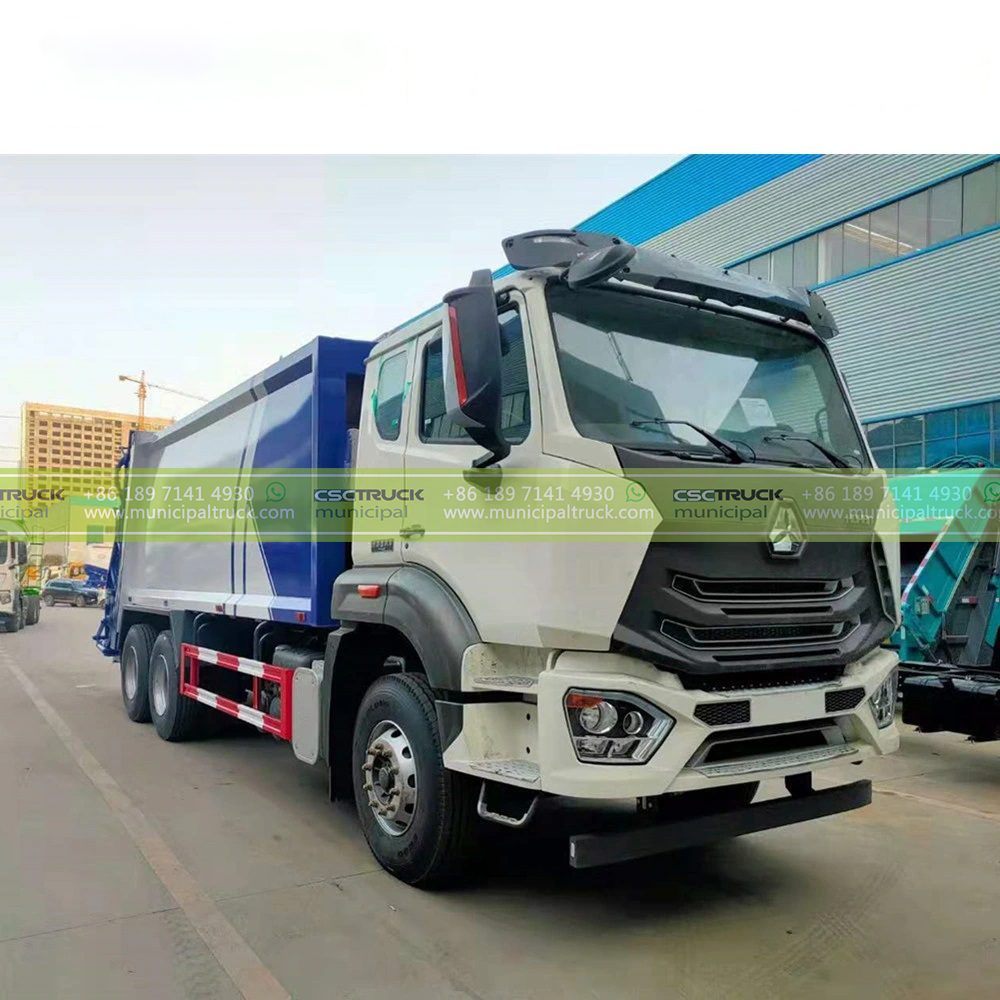

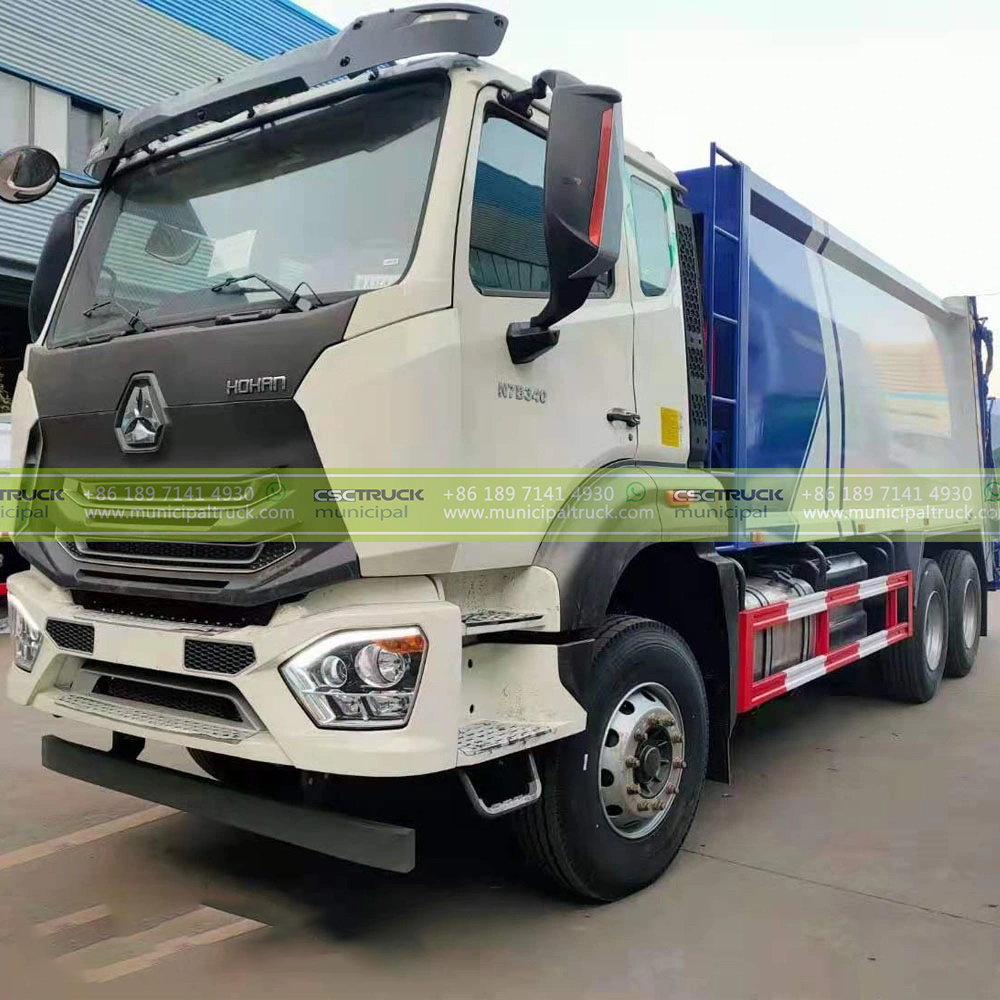

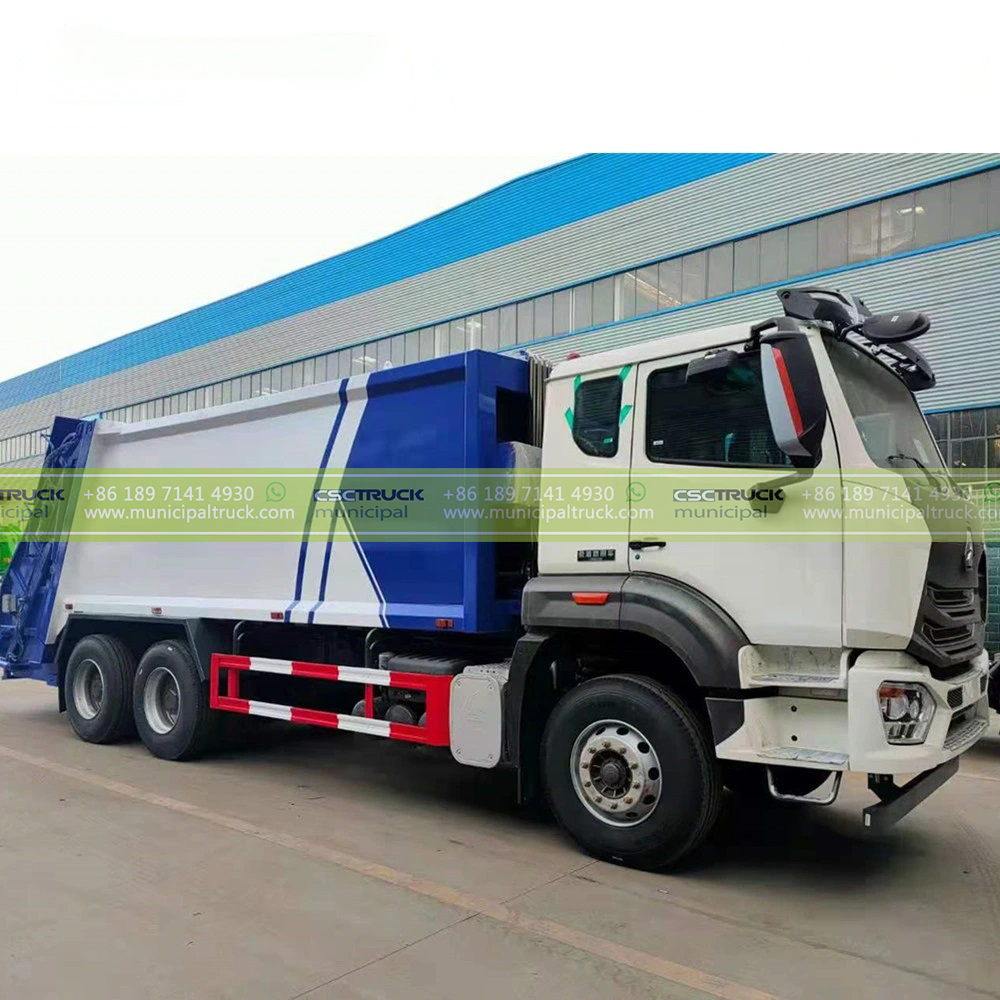

The SINOTRUK 16CBM trash compactor truck is a reliable and efficient garbage truck that is designed to handle large volumes of waste. With its robust chassis and powerful diesel engine, this truck can operate in challenging conditions and transport garbage from one location to another with ease. The garbage container has a capacity of 16 CBM and is made of high-tensile carbon steel to ensure durability and longevity. The tank body is designed to be leak-proof and sealed, while the hydraulic system is equipped with branded components that provide excellent performance and reliability. The truck is also equipped with a multi-control system that allows for easy and efficient operation.
Features:
The SINOTRUK compactor garbage truck features a powerful diesel engine that delivers 371 horsepower, providing ample power for hauling large volumes of waste. The chassis is made of high-quality materials and has a GVW of 25,000 kg, which ensures stability and durability during operation. The front and rear axles are 7T and 16Tx2, respectively, and the truck is equipped with 12.00R20 tires for excellent traction and grip on the road.

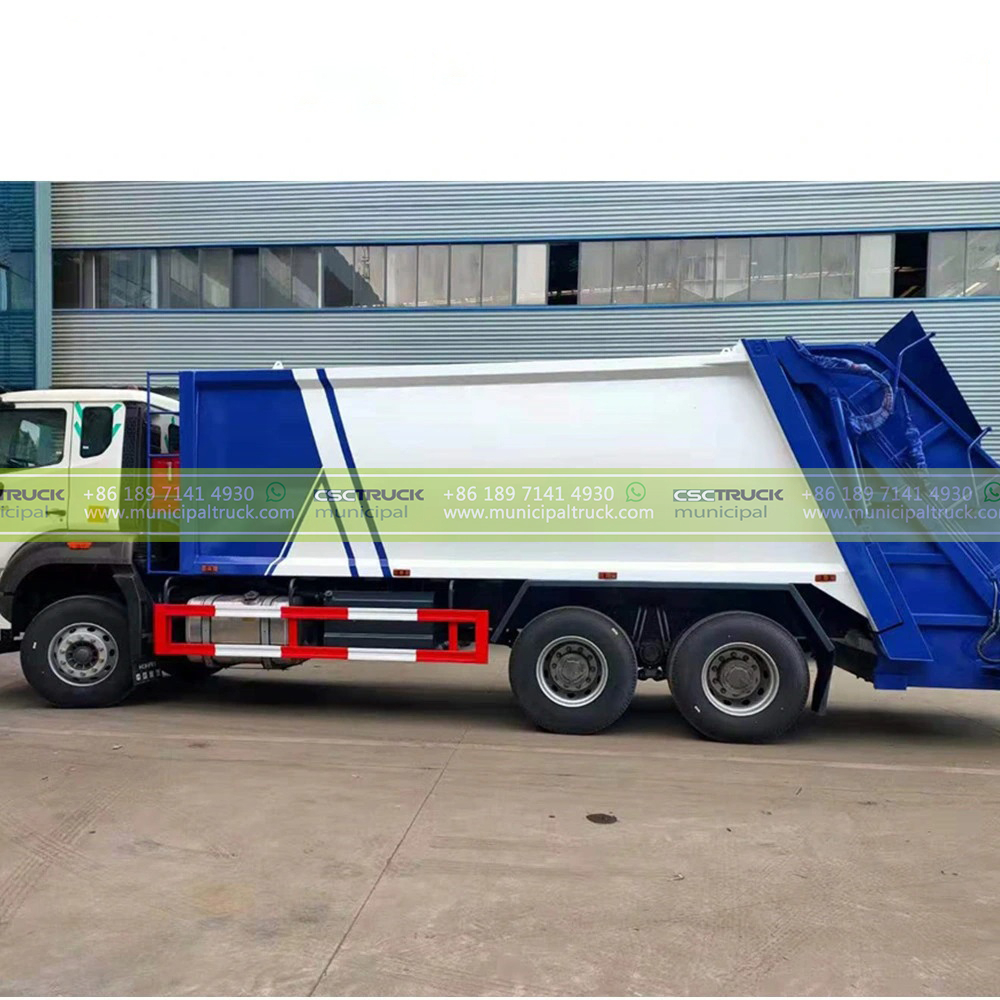

The garbage container has a capacity of 16 CBM and is made of high-tensile carbon steel, with a thickness of 4mm on the sides and 5mm on the bottom. The tank body is designed to be leak-proof and sealed, ensuring that the waste is securely stored during transport. The garbage is compacted at a ratio of 1:3-1:4, reducing its volume and allowing for more efficient transportation.
The truck’s hydraulic system is equipped with branded components, including the oil pump, oil cylinder, valve, gauge, oil tank, and pipeline. This garbage truck system is designed for maximum performance and reliability, with a system pressure of 16MPA. The control system is multi-control, allowing for easy and efficient operation, and the truck’s cabin is designed for comfort and convenience, with ample space for the driver and two passengers. The SINOTRUK 16CBM trash compactor truck is a high-quality garbage truck that is built to last and perform even under the most challenging conditions.
Specifications
| Chassis | |
| Size | 10,800X2,500X3,280(mm) |
| GVW/Curb Weight | 25,000/14,500kg |
| Wheelbase | 4600+1350mm |
| Front/Rear Axle | 7T/16Tx2 |
| Tire | 12.00R20, 10+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | SINOTRUK/WD615.47L/371hp/Euro 2 |
| Transmission | |
| Make/Model | SINOTRUK/HW19710/Manual 10+2 Gear Numbers |
| Gears | 10F+2R |
| Operation | Manual |

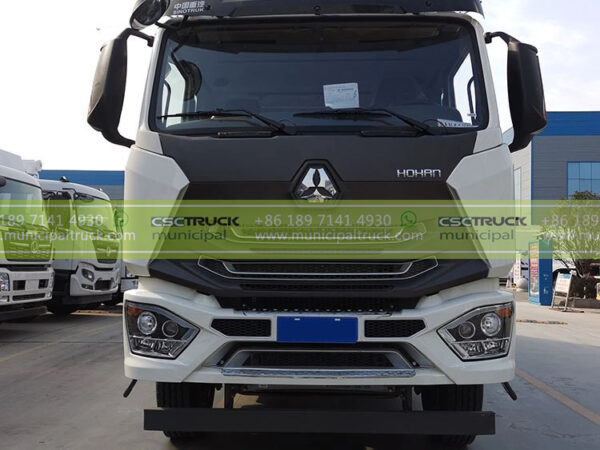

| Cabin | |

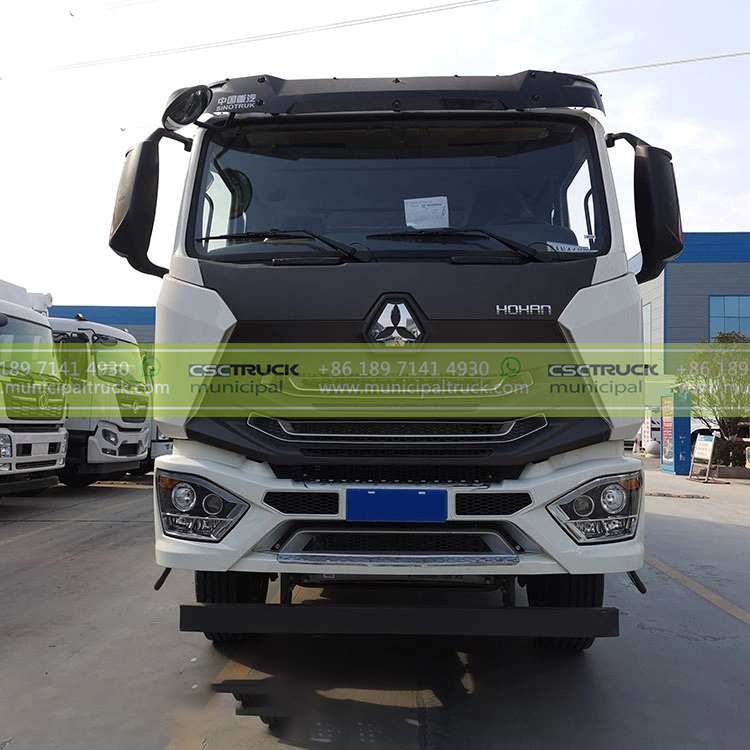

| Driving | SINOTRUK HOHAN 6×4 HW76 Cab, Left Hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |

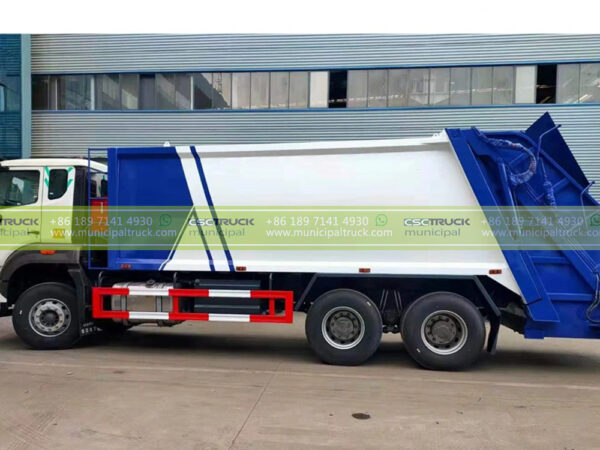

| Garbage Container | |
| Capacity | 16 CBM |
| Tank Body Material | High Tensile Carbon Steel |
| Thickness | Side 4mm, Bottom 5mm |
| Design | Sealed leakage proof |
| Working Rotation Speed | 1400r/m |
| Compaction Ratio | 1:3- 1:4 |
| Hopper Volume | 0.8CBM |
| Effective volume of the bucket | ≥0.8cbm |
| Loading Time | 8~10s |
| Loading Cycle Time | ≤40s |
| Unloading Time | ≤45s |

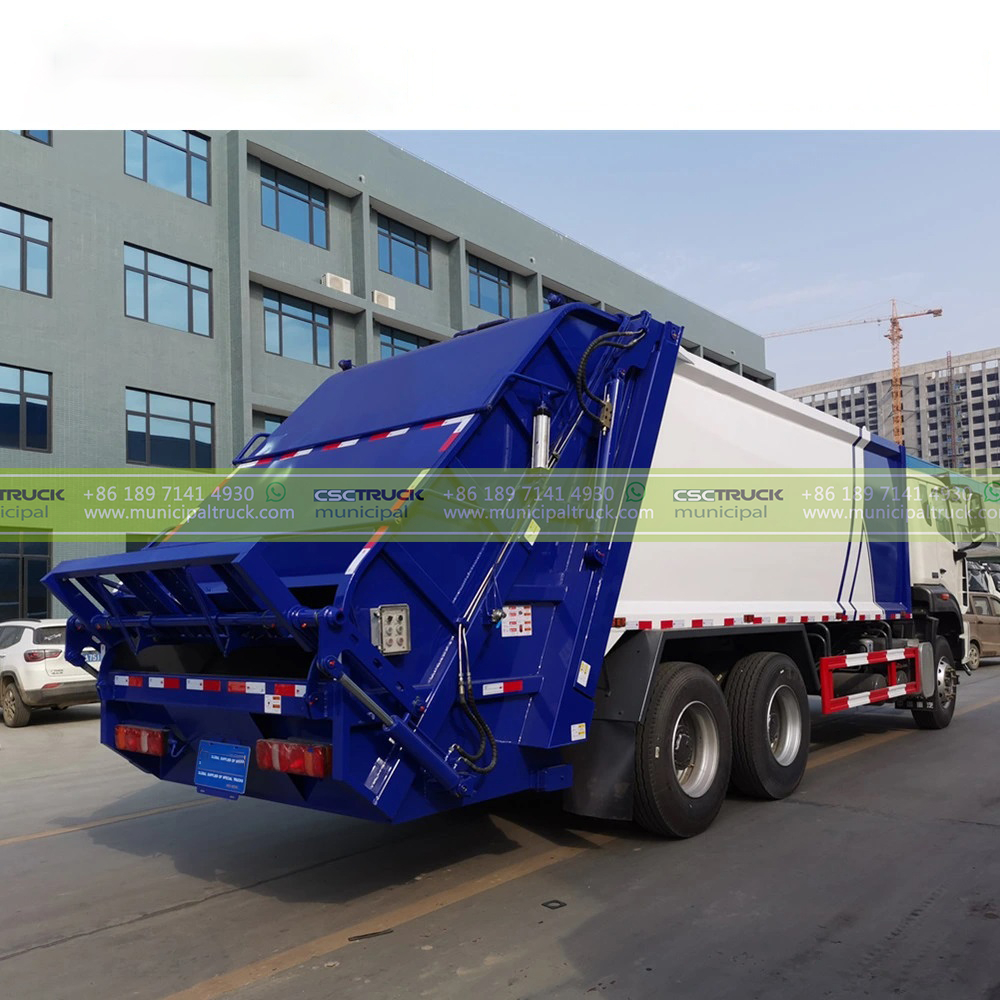

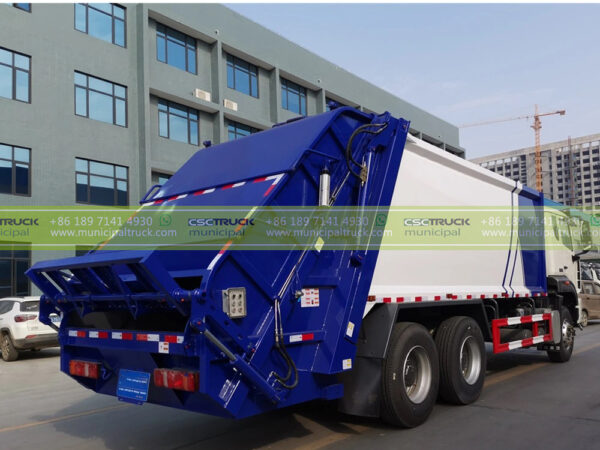

| Discharge Type | Rear discharging |
| System Pressure | 16MPA |
| Hydraulic System | Branded oil pump, oil cylinder, valve, gauge, oil tank, pipeline |
| Control System | Multi-Control |
