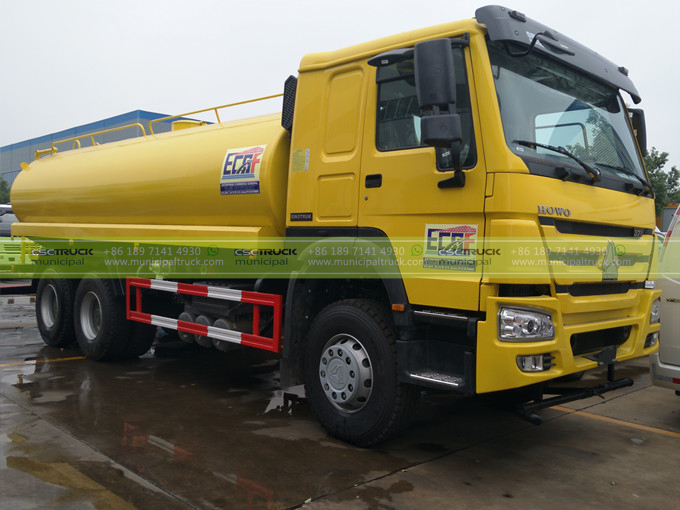

CSCTRUCK is a leading manufacturer of commercial vehicles in China, and one of its most popular products is the SINOTRUK 18,000L water bowser truck. This truck is designed for the transportation and distribution of water to areas where there is a scarcity of water supply, such as construction sites, agricultural areas, and disaster zones. It has a durable chassis, powerful engine, and advanced body system that enable it to perform optimally in various conditions.
Chassis
The SINOTRUK 18,000L water bowser truck has a robust chassis that measures 10,380×2,500×3,050mm. It has a GVW/Curb Weight of 25,000kg/17,600kg and a wheelbase of 4,325+1,350mm. The front/rear axle is 7/18Tx2, and the truck is fitted with 12.00R20 10+1 tires. The engine is a diesel-powered WEICHAI/WP10.336/336hp/Euro 3, and it is paired with a FAST/10JS90A manual transmission with 10F+2R gears. The driving cabin is a SINOTRUK HOWO 6×4 Night Cab, with a left-hand drive configuration and can accommodate up to three passengers. The cabin is built with steel construction and features a single-row, flat design.
Body System
The SINOTRUK 18,000L water bowser truck has a tank capacity of 18,000L and is made of stainless steel 304 with a thickness of 6mm. This material is corrosion-resistant and can withstand harsh environmental conditions. The body system of the truck features a self-priming sprinkler pump made of stainless steel that can deliver a flow rate of 60m³/h and a lift height of 90m. It also has a self-priming height of 7m and a suction height of over 7m. The front of the truck is fitted with a flushing system, while the sides have spraying nozzles, and the rear has a sprinkling nozzle and platform with a water cannon and water gun. The water cannon can rotate 360 degrees and can adjust the water flow to heavy, medium, and light rain, drizzle, and mist.
Performance
The SINOTRUK 18,000L water bowser truck is designed for excellent performance. It has a spraying width of over 14m, which makes it ideal for watering large areas. It also has a canon range of over 35m, which allows it to reach inaccessible areas. The truck has a full tank suction time of fewer than 15 minutes, which reduces the waiting time during refilling. The self-flow valve and fire joint ensure the safe and efficient delivery of water, while the two water pipes provide flexibility during operation.
The SINOTRUK 18,000L water bowser truck is a reliable and durable vehicle that is designed for transporting and distributing water to areas that need it most. Its robust chassis, powerful engine, and advanced body system make it ideal for use in various industries, including construction, agriculture, and disaster management. With its high-performance capabilities and excellent features, this water bowser truck is an asset to any business or organization that requires a reliable water supply.
| Chassis | SINOTRUK |
| Size | 10,380×2,500×3,050(mm) |
| GVW/Curb Weight | 25,000kg/17,600kg |
| Wheelbase | 4,325+1,350mm |
| Front/Rear Axle | 7/18Tx2 |
| Tire | 12.00R20 10+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | WEICHAI/WP10.336/336hp/Euro 3 |
| Transmission | |
| Make/Model | FAST/10JS90A |
| Gears | 10F+2R |
| Operation | Manual |
| Cabin | |
| Driving | SINOTRUK HOWO 6×4 Night Cab, Left-hand Drive |
| Type | Steel construction, Single Row, Flat |
| Passenger No. | 3 |
| Body System | |
| Tanker Capacity | 18,000L |
| Shape | |
| Material | Stainless steel 304 |
| Thickness | Tank Body 6mm |
| Performance | |
| Spraying Width(m) | ≥14m |
| Canon Range(m) | ≥35m |
| Suction Height | >7m |
| Full Tank Suction Time | <15 minutes |
| Equipment | |
| Sprinkler Pump | Front flushing, side spraying, rear sprinkling nozzle, and platform with water cannon and water gun.
The water cannon can be rotated 360 degrees. The water flow can be adjusted to heavy, medium, light rain, drizzle, and mist. |
| Type | Stainless steel self-priming sprinkler pump |
| Flow Rate | 60m³/h |
| Lift Height | 90m |
| Self-priming Height | 7m |
| Other Parts | |
| Include | Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs |
