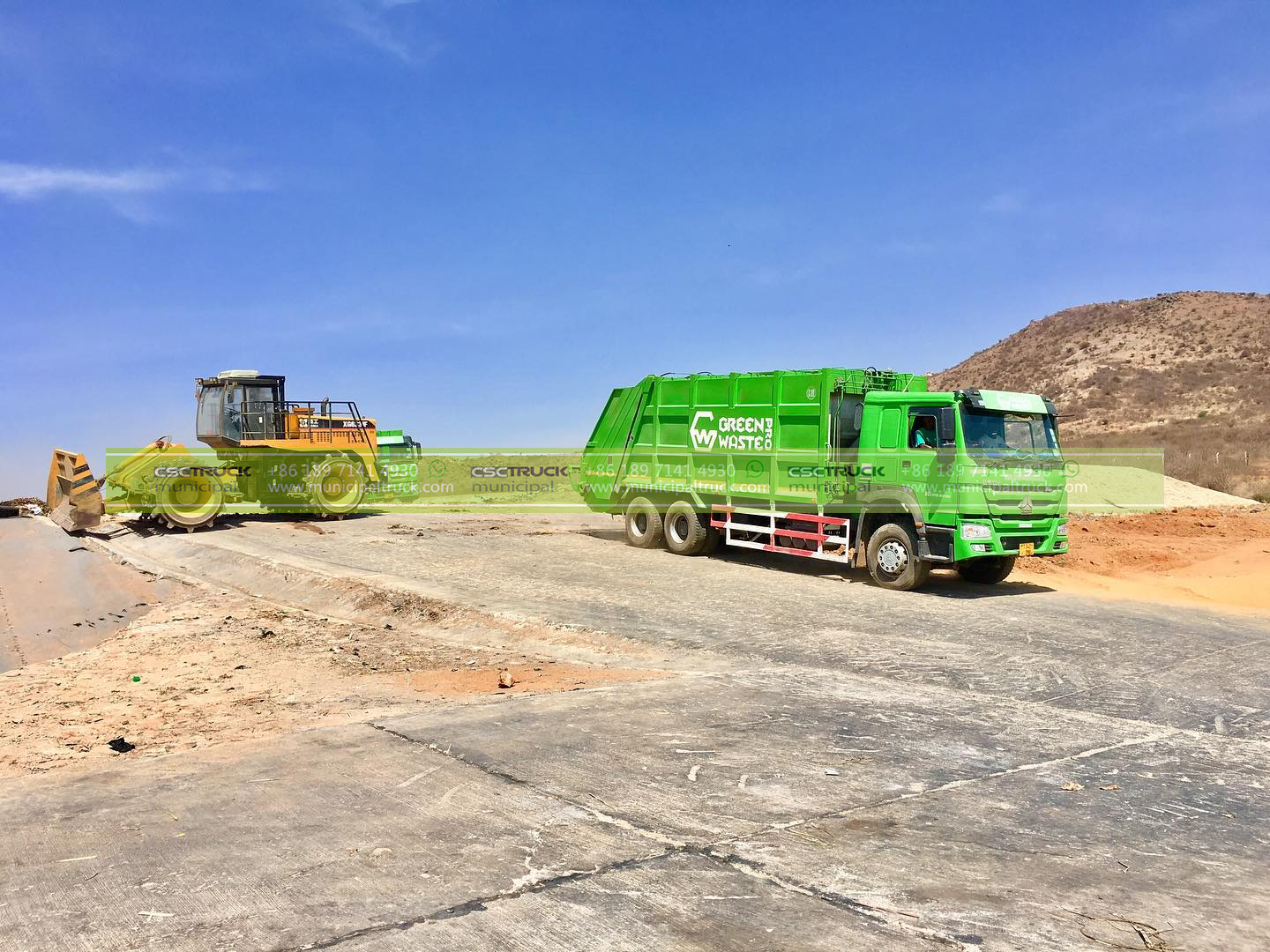

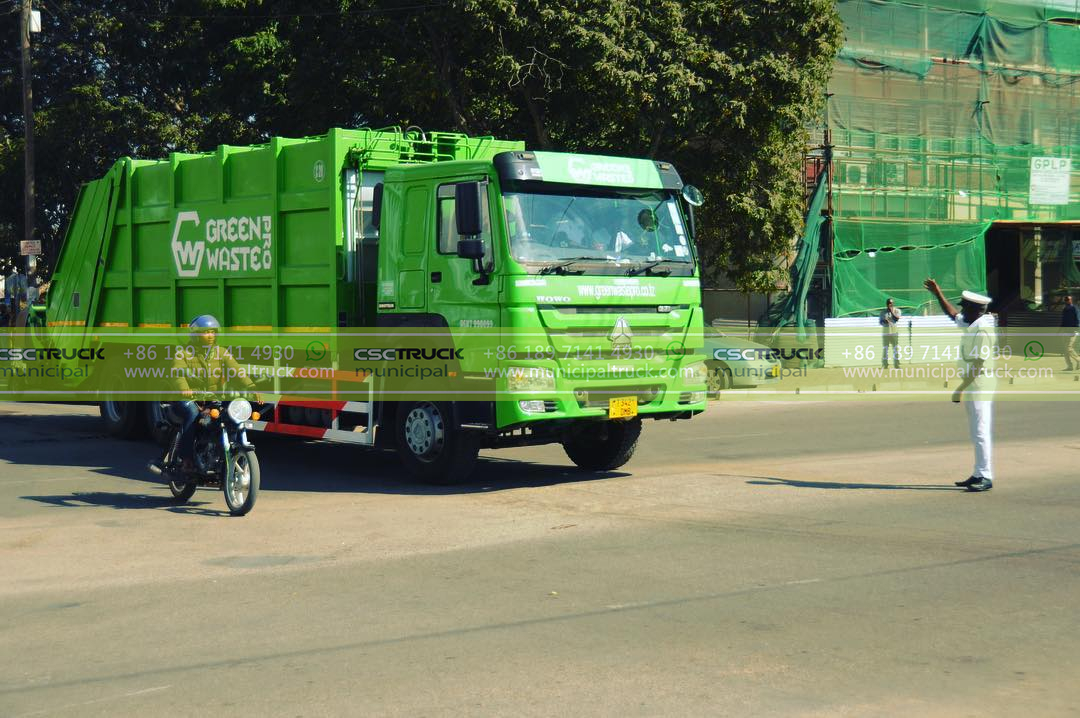

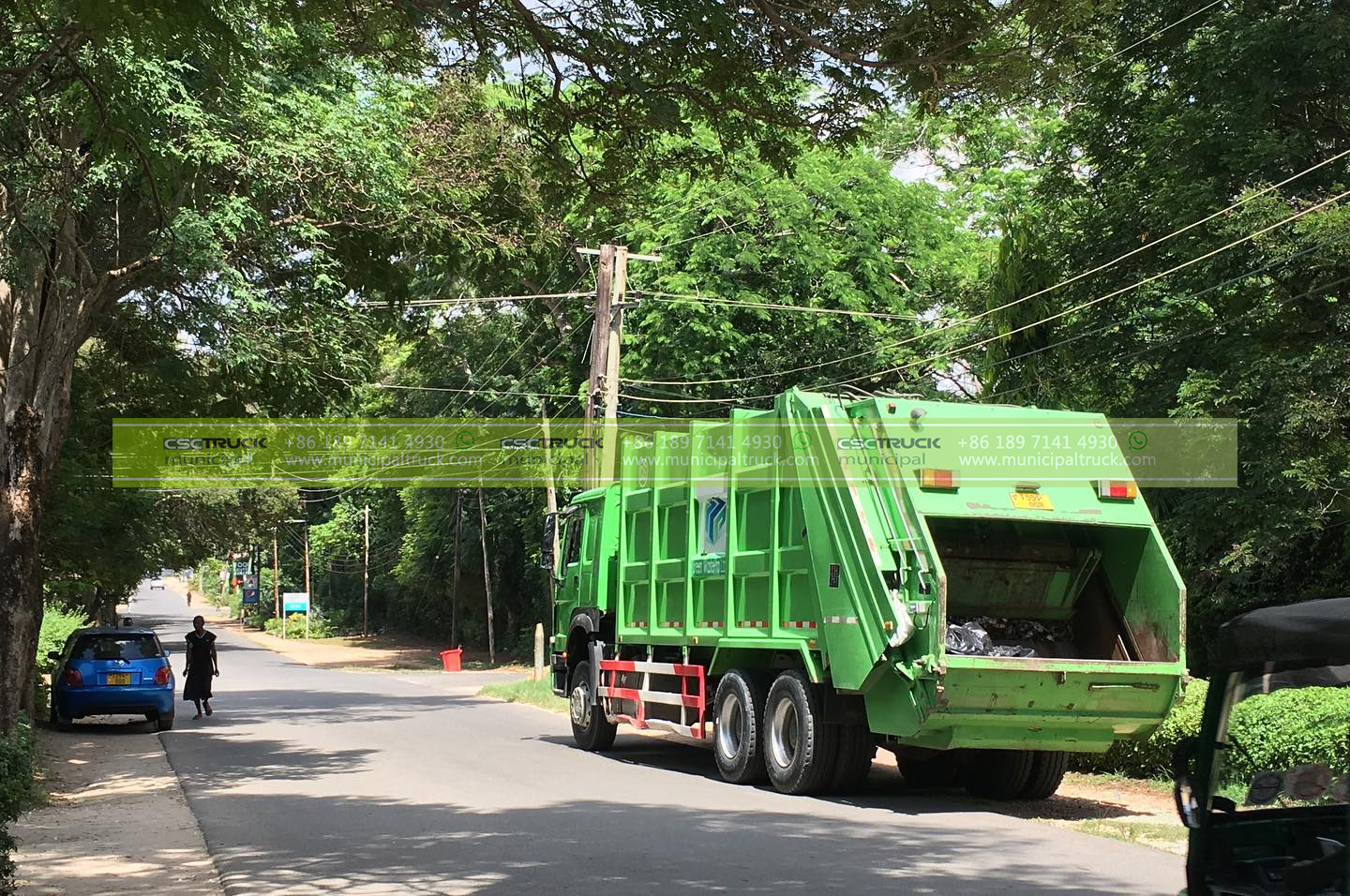

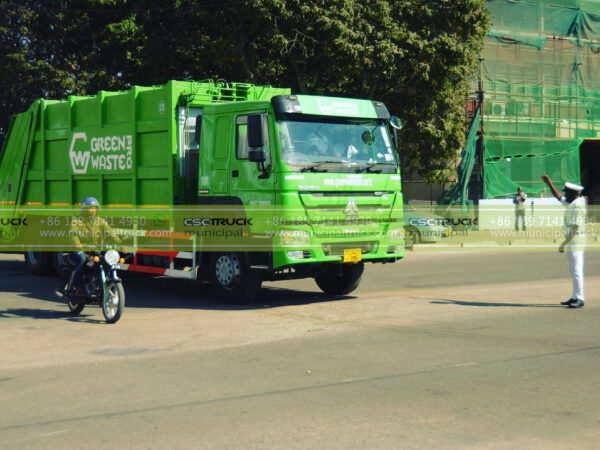

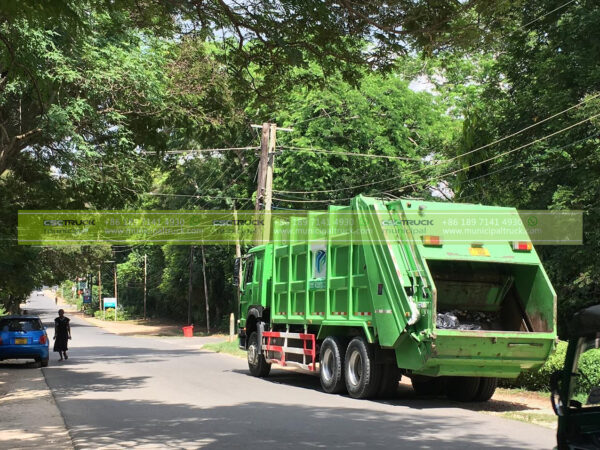

SINOTRUK Municipal Refuse Compactor Truck

Make/Model	CSCTRUCK/GC20ZZ371R2
GVW	25,000kg, Heavy Duty Vehicle
Cab Truck	SINOTRUK HOWO 6×4 Night Cab
Engine	SINOTRUK/WD615.47/371hp/Euro 2
Transmission	SINOTRUK/HW19710/Manual 10+2 Gear Numbers
Garbage Container Capacity	20 CBM

Chassis
Size	10,8000X2,550X3,280(mm)
GVW/Curb Weight	25,000/14,500kg
Wheelbase	4600+1350mm
Front/Rear Axle	7T/18Tx2
Tire	12.00R20, 10+1 tires
Engine
Type	Diesel
Make/Model	SINOTRUK/WD615.47/371hp/Euro 2
Transmission
Make/Model	SINOTRUK/HW19710
Gears	10+2 Gear Numbers
Operation	Manual
Cabin
Driving	SINOTRUK HOWO 6X4 Night Cab, Right Hand Drive
Type	Steel construction, Single Row, Flat
Passenger No.	3
Garbage Container
Capacity	20 CBM
Tank Body Material	High Tensile Carbon Steel
Thickness	Side 4mm, Bottom 5mm
Design	Sealed leakage proof
Working Rotation Speed	1400r/m
Compaction Ratio	1:3- 1:4
Hopper Volume	0.8CBM
Effective volume of the bucket	≥0.8cbm
Loading Time	8~10s
Loading Cycle Time	≤40s
Unloading Time	≤45s
Discharge Type	Rear discharging
System Pressure	16MPA
Hydraulic System	Branded oil pump, oil cylinder, valve, gauge, oil tank, pipeline
Control System	Multi-Control

Certification	CCC, ISO14001:2015, ISO45001∶2018, ISO9000, ISO9001:2015, RoHS
Chassis Truck	SINOTRUK
Color	Customized Color
Condition	New
Country of Origin	Made in China
Customized	Yes
Delivery Time	50 Days
Drive Mode	6×4
Emission Standard	Euro II
Fuel Type	Diesel
Intercom	CIF
Main Markets	Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia
Packaging Details	Waxed
R&D Capacity	ODM, OEM, Own Brand(CSCTRUCK)
Shipping Vessel	Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment
Steering	RHD
Terms of Payment	T/T
Truck Class	Heavy Duty
Warranty Period	12 Months
