Chassis | |
Size | 8,580*2,500*3,100mm |
GVW/Curb Weight | 18,000kg/11,350kg |
Wheelbase | 4,500mm |
Front/Rear Axle | 6.5T/11.5T |
Tire | 10.00R20 6+1 tires |
Engine | |
Type | Diesel |
Make/Model | CUMMINS/ISD210 50/210hp/Euro 5 |
Transmission | |
Make/Model | FAST |
Gears | 8F+1R |
Operation | Manual |
Cabin | |
Driving | SINOTRUK HOWO 4×2 Day Cab, Left-hand Drive |
Type | Steel construction, Single Row, Flat |
Passenger No. | 3 |
Body System | |
Tanker Capacity | 14CBM(9m³ garbage tank+5,000L water tank) |
Material | Stainless steel 304 |
Thickness | Tank Body 6mm |
Auxiliary Engine | |
Brand | JMC |
Power | 87HP |
Air Blower | |
Type | High-pressure, centrifugal, sweeping truck specific
used blower |
Working Speed | 2600~2900r/min |
Driving Mode | Drive by an ancillary engine, automatic clutch, V belt
powered |
Sweeping Equipment | |
Type | Four-disc typed brooms equipped between the front and rear axle, symmetric on the right and left side of the truck driven by motors. |
Sweep Width | 2.6~3.2m. |
Suction Equipment | |
Type | Full-floating suction nozzle, independent forward operation, hydraulic raise & lower 200mm diameter
suction port |
Maximum Inhalation Particle Size | ≥100mm |

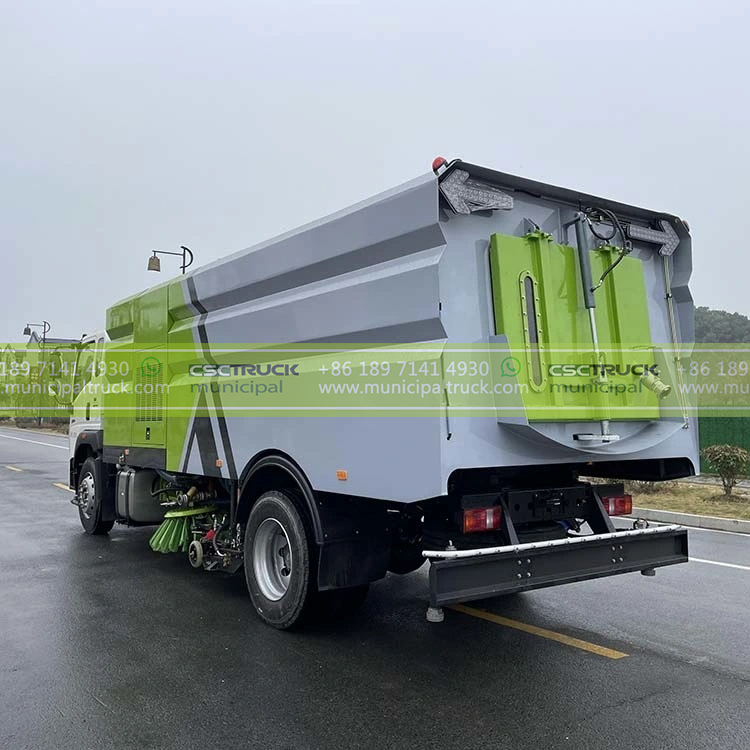

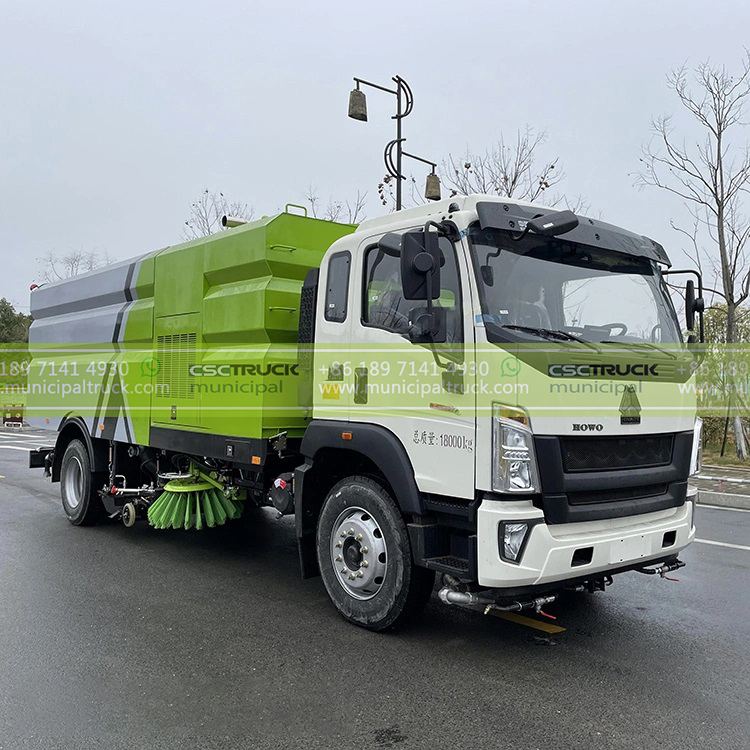

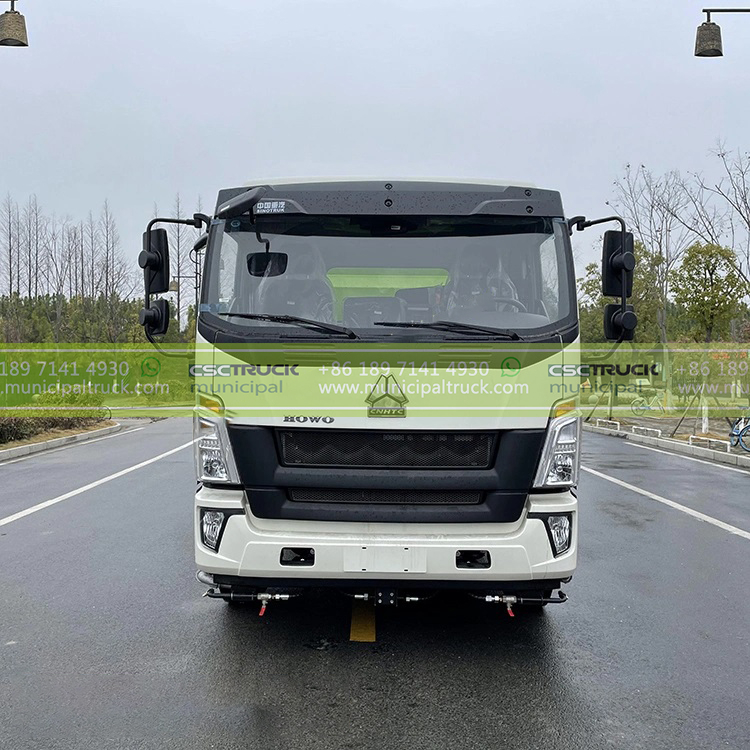

SINOTRUK Municipal Street Cleaning Truck
Make/Model | CSCTRUCK/SC14ZZ210L5 |
GVW | 18,000kg, Heavy Duty Vehicle |
Cab Truck | SINOTRUK HOWO 4×2 Day Cab |
Engine | CUMMINS/ISD210 50/210hp/Euro 5 |
Transmission | FAST manual 8+1 Speed |
Tanker Capacity | 14CBM(9m³ garbage tank+5,000L water tank) |
Categories: Street Sweeper Truck, Sweeper Truck
Certification | ISO9001:2015 |
---|---|
Chassis Truck | SINOTRUK |
Color | Customized Color |
Condition | New |
Country of Origin | |
Customized | Yes |
Delivery Time | 50 Days |
Drive Mode | 4×2 |
Emission Standard | Euro V |
Fuel Type | Diesel |
Intercom | CIF |
Main Markets | Africa, Eastern Asia, Mid East, North America, Oceania, South America, Southeast Asia |
Packaging Details | Waxed |
R&D Capacity | ODM, OEM, Own Brand(CSCTRUCK) |
Shipping Vessel | Bulk Shipment, Container Shipment, Flat Rack, FR Container Shipment, RORO Shipment |
Steering | LHD |
Terms of Payment | T/T |
Truck Class | Heavy Duty |
Warranty Period | 12 Months |
