Brief
Truck Mounted Combination Sewer Cleaner is used for removal of waste such as stones, mud, industrial waste, cans, grease, sludge and other debris from sewers and drain lines by shredding and propelling impacts of high pressure water and transporting them from where they are.
Truck Mounted Combination Sewer Cleaner include a positive displacement vacuum pump and a high pressure water pump. Jetting and vacuuming vehicles are installed with self-contained water supply as the water source for the high-pressure pump and a cylindrical debris tank for the collection of materials vacuumed from the sewage.
Gallery
See this Truck Video on Youtube
features
REEL ADVANTAGE

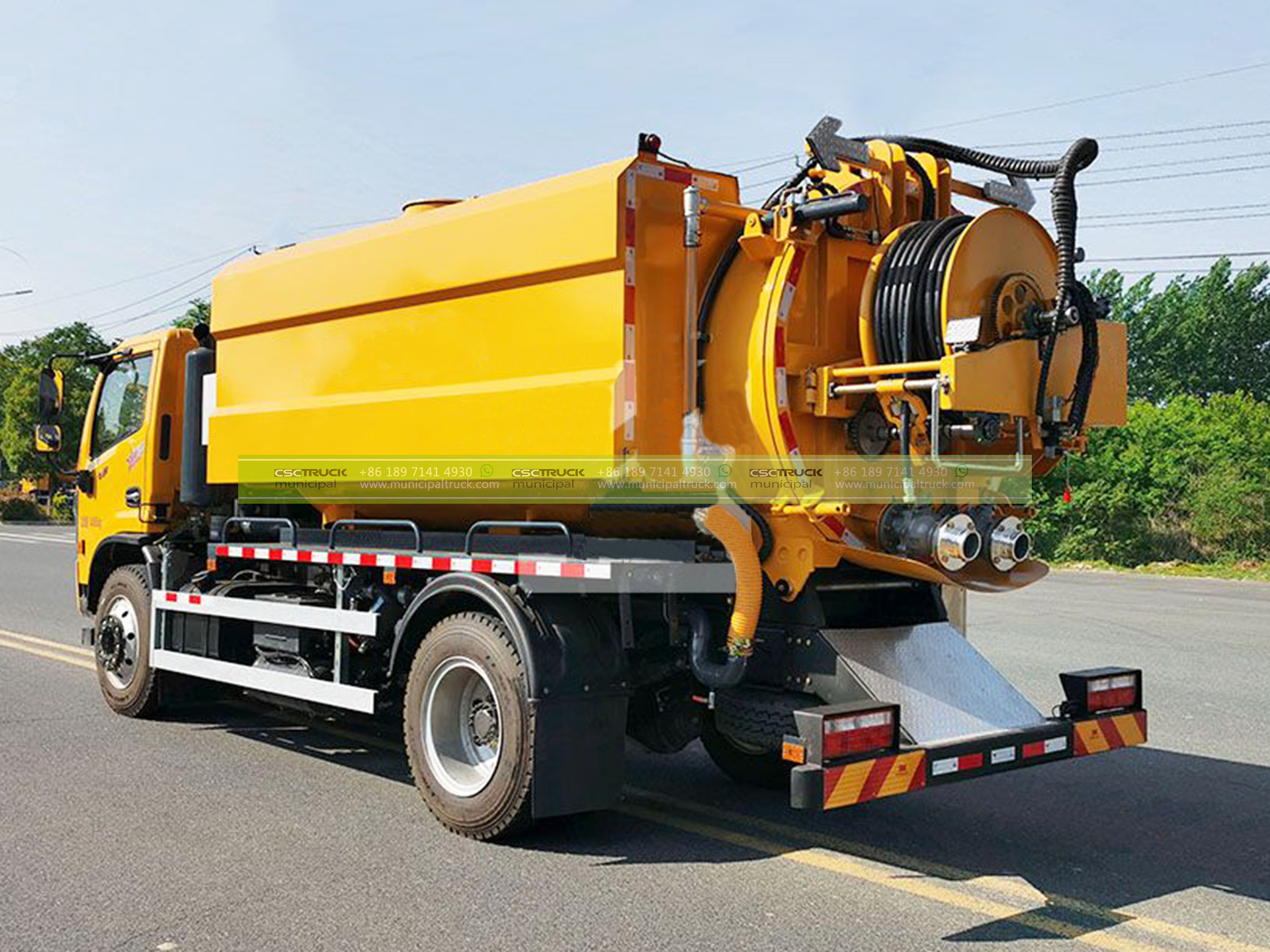

The rear-mounted hose reel design with 180° hydraulic articulation takes the operator off of the street and away from traffic.
REEL REACH
The rear-mounted hose reel puts more useable power in the hands of the operator with reach beyond the truck’s width and a 12′ work radius.
REEL VIEW
An unobstructed, 270° view provides a far-safer field of vision for the driver.
THE NOISE POLLUTION SOLUTION
The rear-mounted hose reel operating position means less vibration, less heat, and 2× to 4× less noise than front-reel systems for reduced operator fatigue and increased safety.
BLOWS EVERYTHING ELSE AWAY
A high-performance 27″ Hg blower is the most powerful in the industry for faster, more efficient vacuum loading.
POWER EQUALS PRODUCTIVITY
The ultimate, get-in, get-out vacuum power and performance to make quick work of tough projects.
POWER WITHOUT PROBLEMS
The horizontal transfer case drive delivers quiet, consistent power with fewer parts and is virtually maintenance-free for less downtime.
PRESSURE WITH PRECISION
A triplex pump design allows smooth, constant pressure with an efficient, reliable drive up to 150 GPM.
FREEDOM OF FLEXIBILITY
The top-loading boom and one-piece vacuum hose provide unlimited 360° operation. Industry-leading flexibility means safe, easy placement of the unit regardless of the manhole or excavation location.
MAXIMUM CAPACITY
Top-mounted boom design provides optimum load distribution and more usable payload capacity without hose bends that clog and wear.
CAPACITY MEETS VERACITY
6,700 Liters debris tank. Water tank capacity from 4,100 Liters.
Vacuum Pump
Plunger Pump
TECHNICAL SPECIFICATION
specification
|
Size |
7500×2500×3100(mm) |
|
Gross weight |
11,400kg |
|
Curb Weight |
7,050kg |
|
Wheelbase |
3850mm |
|
Driving type |
4*2 LHD |
|
Chassis model |
DONGFENG Dollicar |
|
Tire size |
295/80R22.5 |
|
Number of Tires |
6+1 |
|
Passengers in cab |
3 |
|
Engine |
B170 33,170hp, Euro 3 |
|
Sludge Tank |
6,700 Liters |
|
Water Tank |
4,100 Liters |
|
Body Material |
High-strength carbon Steel |
|
Vacuum Pump |
MORO,KWP 900i Flow 15,000LPM |
|
Plunger Pump |
URACA P3-15, Flow: 229LPM |
